alzone ground mount solar racking

Alzone Pole Mount Racking

Alzone Pole Mount Kits

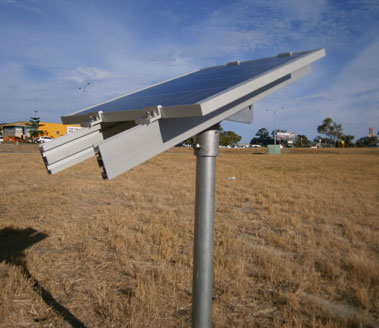

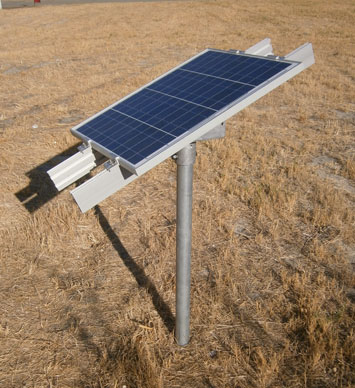

The Alzone Pole mount bracket is cast from Aluminium. When combined with Alzone rail it is designed to carry up to two large solar panels (each a maximum of 1700mm x 1000mm) or a series of smaller sized modules.

The Alzone pole mount comes with an internal adaptor tube to suit 2 sizes of pipe, the pipe diameter being determined by the maximum height of the panels as well as the size and number of modules.

The tilt angle can be adjusted from 10 degrees through to 35 degrees.

Stainless steel mounting hardware and anodised (corrosion resistant) aluminium rail is provided when the pole mount is purchased as a pole mount kit (P/No. SPMPMKIT).

Panel clamps and clamp bolts are ordered separately to they suit the number of modules and the size of the solar modules frame.

The pole required to mount these is not included with the kit and can be source from your local metal supply company. It is recommended to use a heavy walled galvanised pipe with either 40NB (48.3mm O.D.) or 50NB (60.3mm O.D.). The 80NB ( 88.90mm O.D.) sized pipe if compliance is required.

The standard pole mount kit uses Alzone Standard Rail and Alzone Eco Rail in combination with other Alzone components.

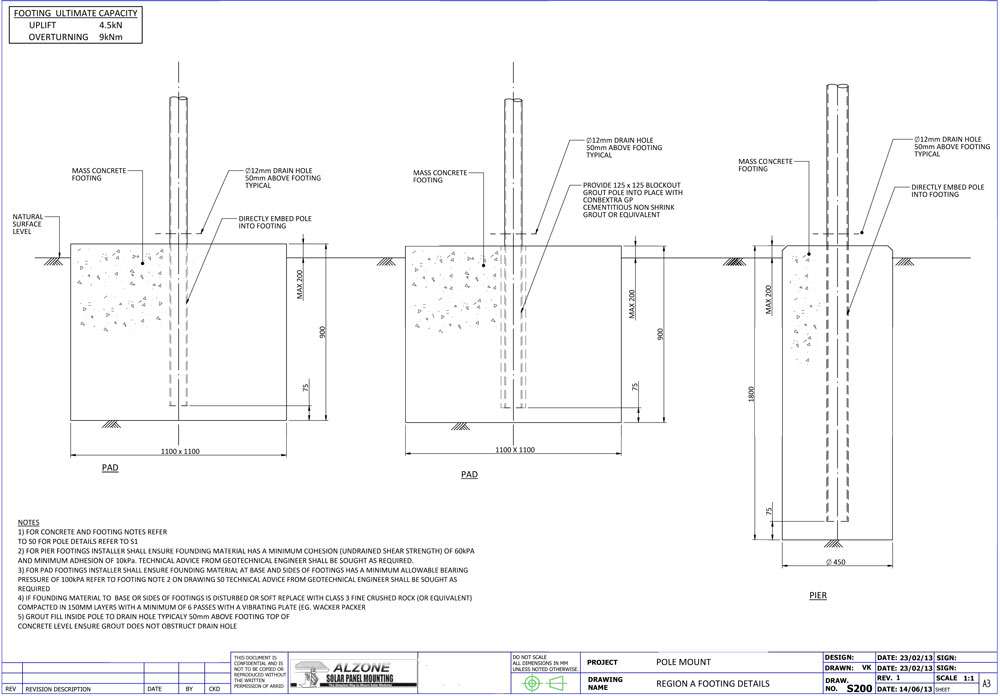

Alzone Pole Mount Kits (P/No SPMPMKIT1600x850 & P/No SPMPMKIT1700x1000) are Wind Load Certified by an Engineer for use in Australian Wind region A, providing the concrete footing, module installed height and panel dimensions comply. Compliance is available only when system uses the 80NB pole.

Small Panels

P/No. SPMPK540

* End Clamps and Bolts supplied separately due to various panel frame depths. Please provide the depth of frame on the solar panel you will be using so we can ensure correct size clamps and bolts can be provided. (Cost of clamps and bolts included in kit price)

NOTE: NB Pole or Panels are NOT included.

P/No. SPMPK1

* End Clamps and Bolts supplied separately due to various panel frame depths. Please provide the depth of frame on the solar panel you will be using so we can ensure correct size clamps and bolts can be provided. (Cost of clamps and bolts included in kit price)*


NOTE: NB Pole or Panels are NOT included.

* Please specify quantity and size of panels you are mounting when purchasing to ensure correct parts are supplied

SPMPK540 MOUNT KIT 1 x 5W-60W $126.97 Buy this product from our online store
SPMPK1 MOUNT KIT 1 x 135W $162.69 Buy this product from our online store


Large Panels

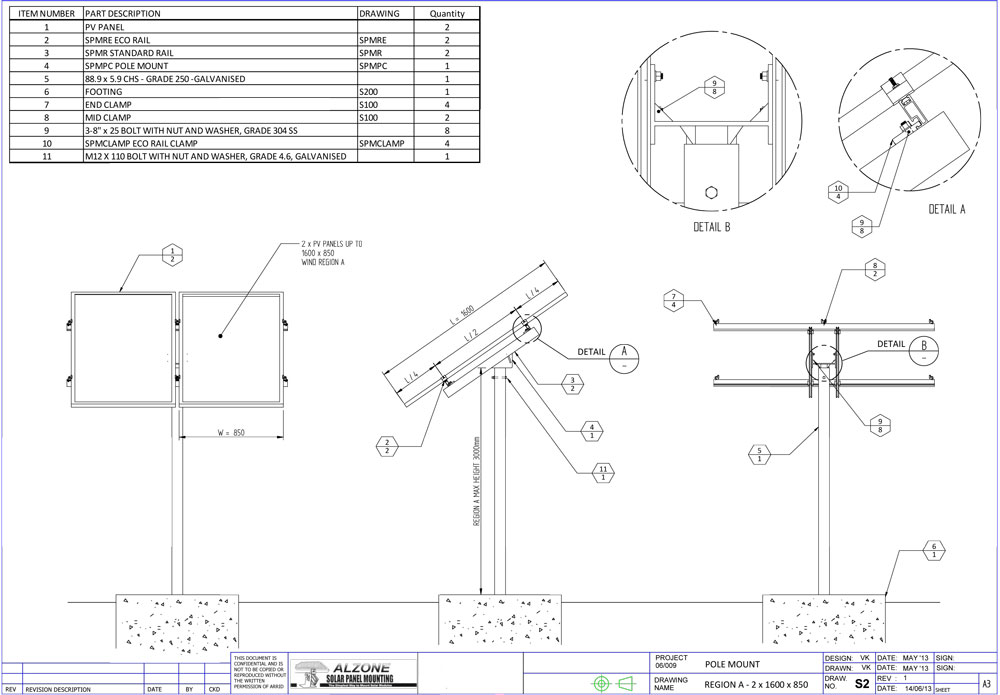

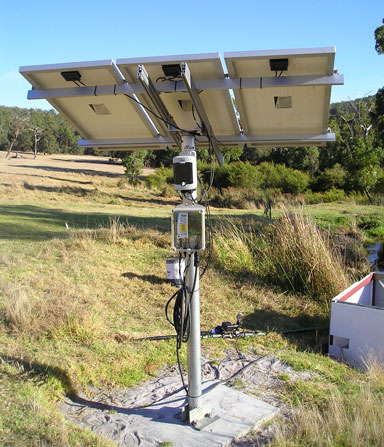

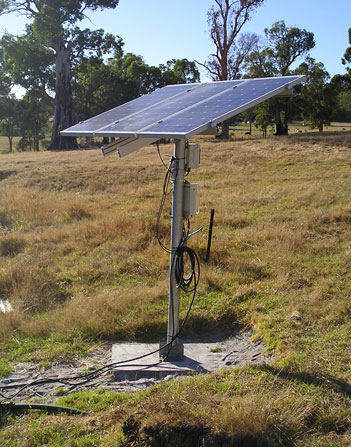

P/No. SPMPMKIT1600x850

POLE MOUNT KIT (aluminium) to suit up to 2 x 180W-300W panels with max dimensions up to 1600 x 850mm. Or a series of smaller panels which take up the same square meterage*

Suitable for use with 3 different pipe sizes 40NB, 50NB and 80NB

Kit Features:

KIT includes:

* End Clamps and Bolts supplied separately due to various panel frame depths. Please provide the depth of frame on the solar panel you will be using so we can ensure correct size clamps and bolts can be provided. (Cost of clamps and bolts included in kit price)

NOTE: NB Pole or Panels are NOT included.

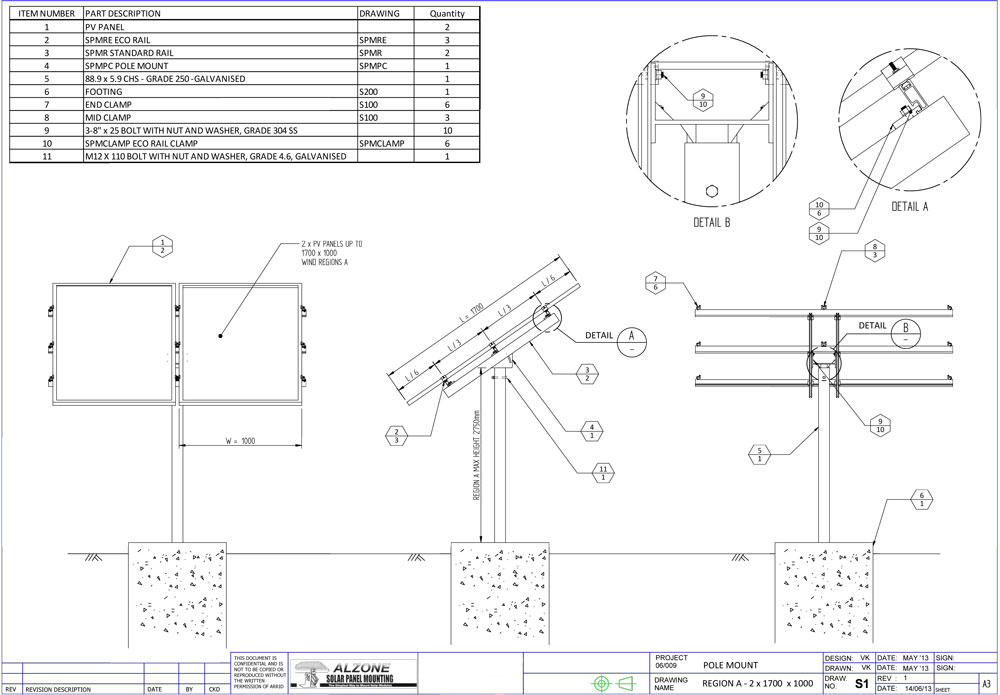

P/No. SPMPMKIT1700x1000

POLE MOUNT KIT (aluminium) to suit up to 2 x 180W-300W panels with max dimensions up to 1600 x 850mm. Or a series of smaller panels which take up the same square meterage*

Suitable for use with 3 different pipe sizes 40NB, 50NB and 80NB

Kit Features:

KIT includes:

* End Clamps and Bolts supplied separately due to various panel frame depths. Please provide the depth of frame on the solar panel you will be using so we can ensure correct size clamps and bolts can be provided. (Cost of clamps and bolts included in kit price)

NOTE: NB Pole or Panels are NOT included.

* Please specify quantity and size of panels you are mounting when purchasing to ensure correct parts are supplied

SPMPMKIT1x1172x660 MOUNT KIT 1x1172x660 $135.12 Buy this product from our online store
SPMPMKIT1x1470x680 MOUNT KIT 1x1470x680 $160.28 Buy this product from our online store
SPMPMKIT1x1600x850 MOUNT KIT 1x1600x850 $168.52 Buy this product from our online store
SPMPMKIT1x1700x1000 MOUNT KIT 1x1700x1000 $179.37 Buy this product from our online store
SPMPMKIT2x1470x680 MOUNT KIT 2x1470x680 $187.69 Buy this product from our online store
SPMPMKIT2x1600x850 MOUNT KIT 2x1600x850 $204.16 Buy this product from our online store
SPMPMKIT2x1700x1000 MOUNT KIT 2x1700x1000 $238.07 Buy this product from our online store


Need a quote for racking click here

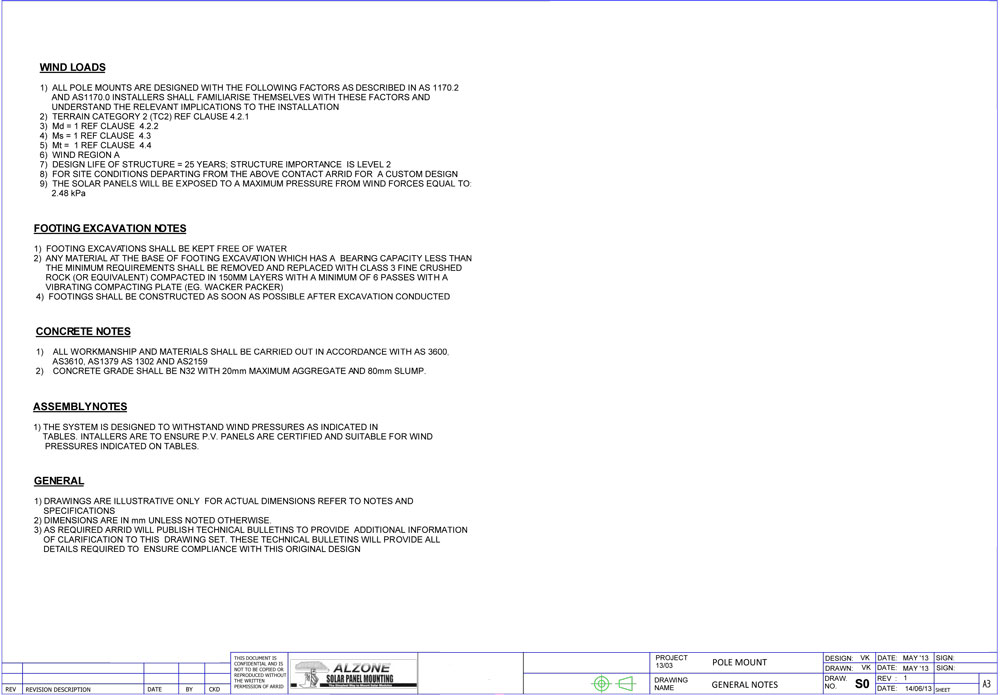

Compliance Certificate

AS/NZS 1170.0 - Structural Actions: General Principles

AS/NZS 1170.1 - Structural Design Actions: Permanent, Imposed and Other Actions

AS/NZS 1170.2 - Structural Design Actions: Wind Actions

AS/NZS 1664.1 - Aluminium Structures: Limit State Design


Wind and Zoning














NON FLANGE RAIL
ASPMR2400 RAIL NON FLANGE RAIL NON FLANGE 2400MM $120.87 Buy this product from our online store
ASPMR2840 RAIL NON FLANGE RAIL NON FLANGE 2840MM $143.02 Buy this product from our online store
ASPMR3150 RAIL NON FLANGE RAIL NON FLANGE 3150MM $158.63 Buy this product from our online store
ASPMR3500 RAIL NON FLANGE RAIL NON FLANGE 3500MM $175.68 Buy this product from our online store
ASPMR3894 RAIL NON FLANGE RAIL NON FLANGE 3894MM $196.09 Buy this product from our online store
ASPMR4220 RAIL NON FLANGE RAIL NON FLANGE 4220MM $212.50 Buy this product from our online store






Easy-Rail
ASPMRA2840 Solar Easy-Rail SOLAR EASY-RAIL 2840mm $137.96 Buy this product from our online store
ASPMRA3150 SOLAR EASY-RAIL SOLAR EASY-RAIL 3150mm $153.01 Buy this product from our online store
ASPMRA3500 SOLAR EASY-RAIL SOLAR EASY-RAIL 3500mm $170.02 Buy this product from our online store









Feet



FOOT CORGATED
SPMFC FOOT $10.08 Buy this product from our online store










FOOT FLAT
SPMFF FOOT $10.08 Buy this product from our online store










FOOT TEE
SPMFTEE MOUNTING FOOT SOLAR $10.08 Buy this product from our online store











Angle Brackets
SPMANGLE RAIL ANGLE BRACKET $8.10 Buy this product from our online store




Angle Brackets
SPMFA10 D GROUND MOUNT FOOT $13.30 Buy this product from our online store




Angle Brackets
SPMFA6 Angle 75x75 foot Zone A $8.35 Buy this product from our online store







Joiner









Rail Joiner
SPMRJOINER Call us about this item





Clamps



END CLAMPS
SPME1US-32MM Call us about this item
SPME1KY-36MM Call us about this item
SPME1SH-46MM Call us about this item
SPME1SW-36mm Call us about this item
SPMEBP-50MM Call us about this item
SPME1SW-34mm Call us about this item
SPME1SUN-39mm Call us about this item
RAIL BOLTS
SPMBSH Call us about this item
SPMBUS Call us about this item




MID CLAMPS
SPM1 PANEL MID CLAMP $4.88 Buy this product from our online store
SPM2 Call us about this item
RAIL BOLTS
SPMBSH Call us about this item
SPMBUS Call us about this item

Rail Bolts



Rail Bolts

RAIL BOLTS
SPMBSH Call us about this item
SPMBUS Call us about this item
