racking sizing

Alzone Racking Sizing





Rail

Rail


(Panel Width in mm x Number of Panels) x ((Number of Panels -1) x Mid clamps 30 mm) + End clamps 2 x 50mm

eg. 4 sharp solar panels 800 wide

(4 x 800) + ((4 - 1) x 30) + 100 = 3390

N.B. Select closest length of rail ( must be the same length or longer than calculation result ).

NON FLANGE RAIL
ASPMR2400 RAIL NON FLANGE RAIL NON FLANGE 2400MM $120.87 Buy this product from our online store
ASPMR2840 RAIL NON FLANGE RAIL NON FLANGE 2840MM $143.02 Buy this product from our online store
ASPMR3150 RAIL NON FLANGE RAIL NON FLANGE 3150MM $158.63 Buy this product from our online store
ASPMR3500 RAIL NON FLANGE RAIL NON FLANGE 3500MM $175.68 Buy this product from our online store
ASPMR3894 RAIL NON FLANGE RAIL NON FLANGE 3894MM $196.09 Buy this product from our online store
ASPMR4220 RAIL NON FLANGE RAIL NON FLANGE 4220MM $212.50 Buy this product from our online store

Rail sold in full lengths only. Sizes over 3500mm long may be difficult to ship via some freight companies.

Easy-Rail
ASPMRA2840 Solar Easy-Rail SOLAR EASY-RAIL 2840mm $137.96 Buy this product from our online store
ASPMRA3150 SOLAR EASY-RAIL SOLAR EASY-RAIL 3150mm $153.01 Buy this product from our online store
ASPMRA3500 SOLAR EASY-RAIL SOLAR EASY-RAIL 3500mm $170.02 Buy this product from our online store

N.B. Select closest length of rail (must be the same length or longer than calculation result).

Rail sold in full lengths only.




Clamps



End Clamp and Mid Clamps Sizes
x y A B Anodised
Solar World 34 mm 34 mm 19 mm 16 mm fully anodised
Sharp 46 mm 34 mm 19 mm 16 mm fully anodised
Suntec 34 mm 34 mm 19 mm 16 mm fully anodised
BP Solar 50 mm 34 mm 19 mm 16 mm fully anodised
Uni-solar 32 mm 34 mm 19 mm 16 mm fully anodised
Sunpower 46 mm 34 mm 19 mm 16 mm fully anodised
Sunworld 39 mm 34 mm 19 mm 16 mm fully anodised
Schott 50 mm 34 mm 19 mm 16 mm fully anodised
Erquan 35 mm 34 mm 19 mm 16 mm fully anodised
Trina 39 mm 34 mm 19 mm 16 mm fully anodised
Solar World 39 mm 34 mm 19 mm 16 mm fully anodised
Kyocera 36 mm 34 mm 19 mm 16 mm fully anodised
Solar Sufficient 50 mm 34 mm 19 mm 16 mm fully anodised
Enertec 46 mm 34 mm 19 mm 16 mm fully anodised

















Corrugated Feet
Alzone Corrugated Feet have been designed to suit installations on standard large profile corrugated roofs. The vertical slots in feet uprights provide adjustment to the solar array when roofing is uneven.
Alzone angle bracket ( SPMAngle) can be combined with corrugated feet to change the direction of rail at right angles to corrugations.
This corrugated aluminium foot is finished in durable aluminium anodizing for increased weather resistance.



FOOT CORGATED
SPMFC FOOT $10.08 Buy this product from our online store






Flat Foot
The Alzone Flat Foot is designed for flat profile roofing such as Trimdeck and Cliplock roof sheeting. These feet are used also on ground mount systems and provide adjustment to height of rail via vertical slots in the foot upright.
These aluminium feet are finished in weather resistant anodizing for increased durability



FOOT FLAT
SPMFF FOOT $10.08 Buy this product from our online store






Tee Foot
The Alzone Tee Foot is designed to provide raised profile (up to 35 degrees above existing roof angle) on roof mounted solar arrays. It is usually used when the array is in landscape position with modules in portrait. The Tee foot can provide a convenient pre drilled foot for special mounting requirements on rail or special structures.
The aluminium foot with protective anodized coating provides a solution for difficult installations.



FOOT TEE
SPMFTEE MOUNTING FOOT SOLAR $10.08 Buy this product from our online store







Angle Brackets

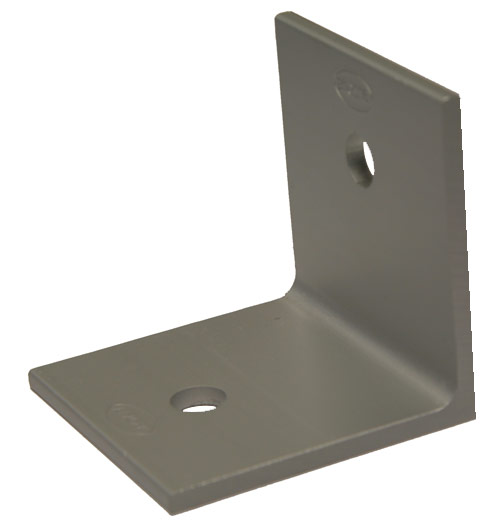

SPMFANGLE
This Alzone aluminium angle bracket conveniently changes the direction of Alzone rail on corrugated feet by 90 degrees. The modules can be mounted in portrait modewhilst the rail runs in landscape position (90 degrees to corrugations).
This bracket is finish in a clear anodized coating for improved weather resistance and matches other Alzone racking parts. All holes are pre drilled at 10mm
Size:-88mm x 64mm x 76mm wide x 3mm thick



Angle Brackets
SPMANGLE RAIL ANGLE BRACKET $8.10 Buy this product from our online store


SPMFA10

This heavy duty aluminium angle bracket is primarily used as mounting feet on ground mount racking in high (cyclonic) wind zones. Other uses for this tough clear anodized bracket are for mounting Alzone rail to difficult roof, wall or custom framing.
The two holes are pre drilled at 12.5mm for convenient on site installation.
Size :- 75mm x 75mm x 75mm wide x 10mm thick



Angle Brackets
SPMFA10 D GROUND MOUNT FOOT $13.30 Buy this product from our online store


SPMFA6

The medium duty aluminium angle foot is mostly used as mounting feet on ground mount installations in lower wind zones ( A, B & C ). It is a useful addition for difficult roof or wall installations and mounting alzone rail to customised solar frames.
Finish is in durable clear anodizing for enhanced weather resistance.
Both holes are pre drilled at 12.5mm
Size:-75mm x 75mm x 75mm wide x 5mm thick

Angle Brackets
SPMFA6 Angle 75x75 foot Zone A $8.35 Buy this product from our online store







Joiner

Rail Joiner
P/No. SPMRJOINER

The 3mm anodised joining plate allows a quick convenient method of joining Alzone standard rails together to create longer sections.
The weather resistant finish and pre-drilled holes reduce installation time and leaves a quality finish to your solar racking installation.
Dimension 155mm L x 75mm H x 3mm W





Rail Joiner
SPMRJOINER Call us about this item





Clamps

End Clamps
The Alzone end clamps are designed to securely mount solar modules at both ends of Alzone rail sections .There are a number of sizes available to suit most solar modules.
End clamps are pre drilled with grooves on the underside of clamps for advanced grip.
There is no drilling and clamps can be finger tightened on initial installation reducing risk to your valuable modules.
Clamps are manufactured from aluminium and come complete with a weather resistant anodized finish.

END CLAMPS
SPME1US-32MM Call us about this item
SPME1KY-36MM Call us about this item
SPME1SH-46MM Call us about this item
SPME1SW-36mm Call us about this item
SPMEBP-50MM Call us about this item
SPME1SW-34mm Call us about this item
SPME1SUN-39mm Call us about this item
RAIL BOLTS
SPMBSH Call us about this item
SPMBUS Call us about this item



Mid Clamps
Alzone middle mounts are suitable for joining adjacent solar modules together on Alzone rail. Grooves on the underside of the clamps allow a secure grip to modules without the need to drill or damage panels.  Clamps are constructed from aluminium which is finished in an anodized weather resistant coating. They provide a fast efficient manner of attachment to Alzone rail.

MID CLAMPS
SPM1 PANEL MID CLAMP $4.88 Buy this product from our online store
SPM2 Call us about this item
RAIL BOLTS
SPMBSH Call us about this item
SPMBUS Call us about this item

Rail Bolts

Rail Bolts
Alzone rail bolts are a convenient way to attach middle and end clamps to Standard and Easy-Rail. The durable stainless steel rail bolts provide ease of installation of solar modules via the special aluminium rail shoe and serrated securing nut.

RAIL BOLTS
SPMBSH Call us about this item
SPMBUS Call us about this item
