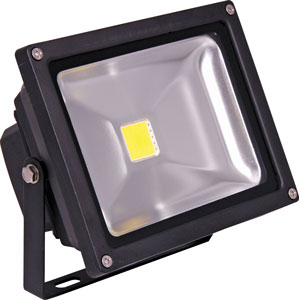

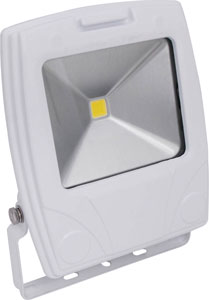

IP65 Weatherproof LED Floodlights

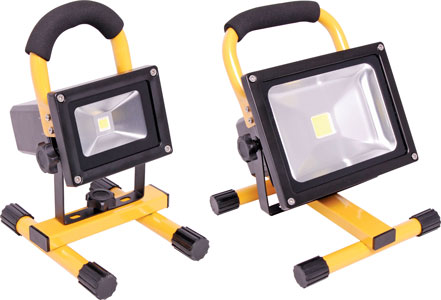

IP54 Rechargeable LED Floodlights

Narva L.E.D Interior Lights

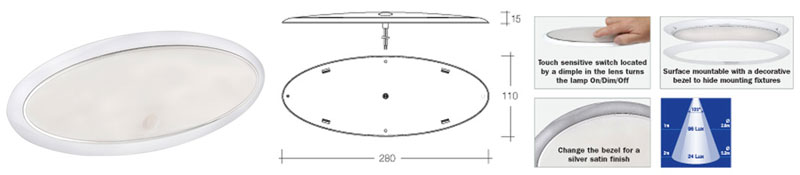

Narva L.E.D Exterior Lights

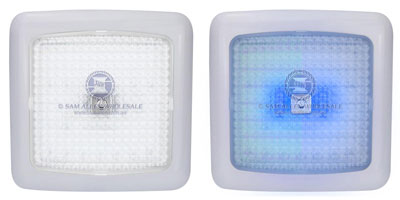

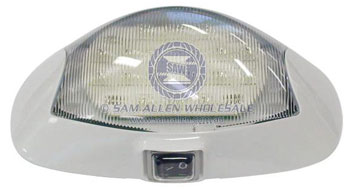

Sam Allen Interior Lights

Sam Allen Exteria Lights

LED Map / Reading Lights

Back to the Top


LED Lighting

This section includes All LED Lighting to suit Marine Lighting, Caravan & Motor-Home Lighting, House Lighting, and Work Lights.

LED Lighting: An LED lamp is a light-emitting diode (LED) product which is assembled into a lamp (or light bulb) for use in lighting fixtures. LED lamps have a lifespan and electrical efficiency which are several times longer than incandescent lamps, and significantly more efficient than most fluorescent lamps.

Like incandescent lamps and unlike most fluorescent lamps (e.g. tubes and compact fluorescent lamps or CFLs), LEDs come to full brightness without need for a warm-up time; the life of fluorescent lighting is also reduced by frequent switching on and off. The initial cost of LED is usually higher. Degradation of LED dye and packaging materials reduces light output to some extent over time.

Some LED lamps are made to be a directly compatible drop-in replacement for incandescent or fluorescent lamps. An LED lamp packaging may show the lumen output, power consumption in watts, color temperature in kelvins or description (e.g. "warm white"), operating temperature range, and sometimes the equivalent wattage of an incandescent lamp of similar luminous output.

Most LEDs do not emit light in all directions, and their directional characteristics affect the design of lamps, although omnidirectional lamps which radiate light over a 360° angle are becoming more common. The light output of single LED is less than that of incandescent and compact fluorescent lamps; in most applications multiple LEDs are used to form a lamp, although high-power versions are becoming available.

Stengel Lighting

Stengel was founded in 1986 and is mainly occupied with the design and sales of energy saving vehicle lights. 25 years experience in light technology have left a considerable impression.

In 1986 they started with lights for the solar industry and in 1988 they presented the RESOLUX series and by using energy saving compact lamps they created the foundation for their success. One year later they added electronic inverter ballast for compact lamps, 230V AC/DC to their product range.

All lights in their program are state of the art and revised regularly. This way they can offer perfect design, high-tech electronics and the latest lamp technology.

And naturally MADE IN GERMANY!

Stengel Resolux LED Lights

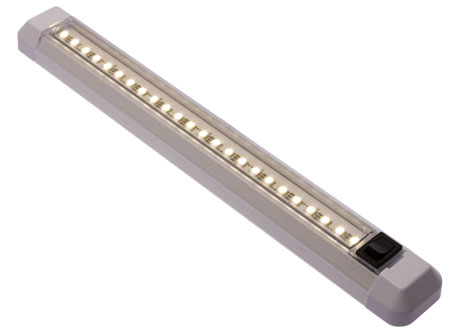

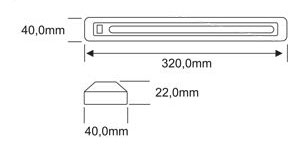

Stengel Resolux 104 Series LED

The RESOLUX 104 is a brand new designed surface mount LED luminaire from Stengel.

Ideal for interior Caravan, Motorhome, RV, Marine, or House applications.

They are a Multi voltage input light, meaning they will take any input voltage between 10v and 30v while still maintaining a continuous light output all over the voltage range and is comparable with a 60 Watt incandescent lamp.

The Light comes with 6.3mm spade connectors for the electrical connection and on / off switch. The LED's have a luminous efficiency of 65lm/W and a durability of 10.000 - 50.000h. The LED's are available in the colour temperature 6000K (daylight white). The LED's are protected against outside influences as dust, dirt, moisture and mechanical load.

Features:

  • Fixing holes identical to RESOLUX 103 Fluorescent Light
  • Comparable with incandescent bulb 60 Watt
  • Inherently stable PC cover
  • Power consumption approx. 8 Watt
  • Intensity of illumination 200lx (1m) R
  • E Certificate and EMC Certified
  • Multi Volt 10v-30v DC
  • 510 Lumens
  • IP40 Rated
  • 120° Light Angle

The luminaires have the following configuration:

  • Impact-resistant PC prismatic cover
  • Light color 3000K, 4000K or 6000K
  • Low-loss polarity reversal protection
  • SMD - technology
  • LED durability 10.000 - 50.000h
  • Multivoltage ( 10.5 - 30.0V DC)
  • Radio interference protection acc. to EN 55015

Resolux 104 Series LED
LSR1046012/24VSW Resolux daylight white LED automotiveLuminaire, multivotage $129.00 Buy this product from our online store

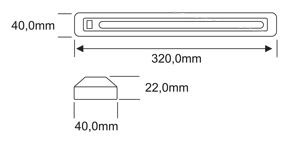

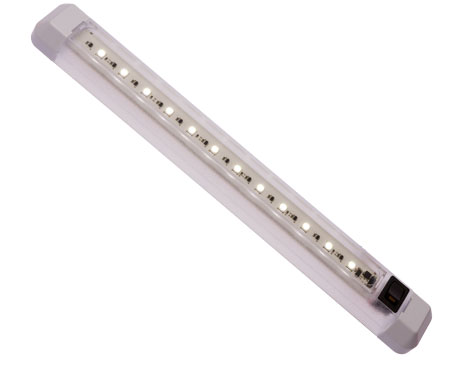

Stengel Resolux 105 Series LED

The RESOLUX 105 is a brand new designed surface mount LED luminaire from Stengel.

Ideal for interior Caravan, Motorhome, RV, Marine, or House applications.

The luminaire is available for both 12 volt or 24 volt DC. The light output is continuous all over the voltage range and comparable with an 40 Watt incandescent lamp.

The luminaire comes with 6.3mm spade connectors for the electrical connection and you can choose between a switch or no switch. The LED's have a luminous efficiency of 65lm/W and a durability of 10.000 - 50.000h. The LED's are available in the colour temperature 4000K (white) and 6000K (daylight white). The LED's are protected against outside influences as dust, dirt, moisture and mechanical load.

Features:

  • Fixing holes identical to RESOLUX 103 Fluorescent Light
  • Comparable with incandescent bulb 40 Watt
  • Inherently stable PC cover
  • Power consumption approx. 4 Watt
  • Intensity of illumination 100lx (1m)
  • E Certificate and EMC Certified
  • 300 Lumens
  • IP40 Rated (Light with Switch)
  • IP65 Rated (Light without Switch)
  • 120° Light Angle

The luminaires have the following configuration:

  • Impact-resistant PC prismatic cover
  • Light color 3000K, 4000K or 6000K
  • Low-loss polarity reversal protection
  • SMD - technology
  • LED durability 10.000 - 50.000h
  • 12 or 24 Volt DC
  • Radio interference protection acc. to EN 55015

Resolux 105 Series LED without Switch - 12v 6000K Colour Temperature
LSR10512 NO SWITCH 300LM IP65 $129.00 Buy this product from our online store
Resolux 105 Series LED without Switch - 24v 4000K Colour Temperature
LSR10524 NO SWITCH 300LM IP65 $129.00 Buy this product from our online store
Resolux 105 Series LED with switch - 12v 4000K Colour Temperature
LSR10512SW LED 12V ONLY 300LM IP40 $129.00 Buy this product from our online store
Resolux 105 Series LED without Switch - 24v 4000K Colour Temperature
LSR10524SW 24V ONLY 300LM IP40 $129.00 Buy this product from our online store

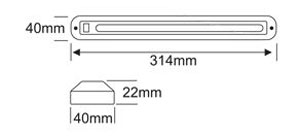

Stengel Resolux 106 Series LED Lighting

The RESOLUX 106 is a brand new designed surface mount LED luminaire from Stengel.

Ideal for interior Caravan, Motorhome, RV, Marine, or House applications.

They are a Multi voltage input light, meaning they will take any input voltage between 10v and 30v while still maintaining a continuous light output all over the voltage range and is comparable with a 60 Watt incandescent lamp.

The Light comes with 6.3mm spade connectors for the electrical connection and on / off switch. The LED's have a luminous efficiency of 81lm/W and a durability of 10.000 - 50.000h. The LED's are available in the colour temperature 4000K (white). The LED's are protected against outside influences as dust, dirt, moisture and mechanical load.

Features:

  • Fixing holes identical to RESOLUX 103 Fluorescent Light
  • Comparable with incandescent bulb 60 Watt
  • Inherently stable PC cover
  • Power consumption approx. 8 Watt
  • Intensity of illumination 200lx (1m)
  • E Certificate and EMC Certified
  • Multi Volt 10v-30v DC
  • 600 Lumens
  • IP40 Rated
  • 120° Light Angle

The luminaires have the following configuration:

  • Impact-resistant PC prismatic cover
  • Light color 4000K
  • Low-loss polarity reversal protection
  • SMD - technology
  • LED durability 10.000 - 50.000h
  • Multivoltage ( 10.5 - 30.0V DC)
  • Radio interference protection acc. to EN 55015

Resolux 106 Series LED
LSR1066012/24SW LED 12or24 V 600LM $149.00 Buy this product from our online store

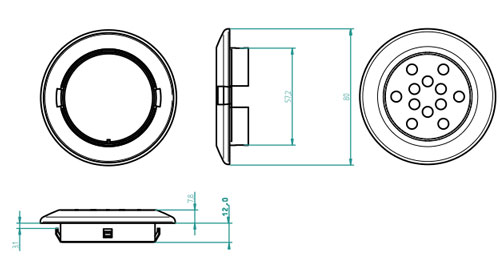

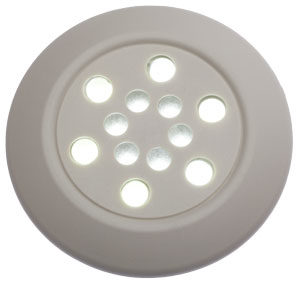

Stengel Resolux 131 Series LED Lighting

RESOLUX 131 is a very bright, energy saving recessed LED spotlight with 12LEDs.

The 12 Volt DC spotlight with a current draw of 200 mA (2.4Watt) has an illumination of 130 Lux within 1m distance, the equivalent of a 20 Watt halogen spotlight.

The lens optics provide an evenly illuminated surface area at an angle of 40°. This spotlight will be available in chrome matt, white and grey, the protection class is IP65. It will be fixed by snap-in hooks, which are integrated in the housing made of Polycarbonate. For measurements please see our drawing. A cut-out of 58 mmdiameter is necessary.

It is suitable for high switching frequency rates, wherever medium quantity of light with very low energy consumption is needed.

The durability of the LEDs within the indicated operating temperature below 55°C is approx. 30.000 hours.

Exceeding the recommended operating temperature reduces the durability of the LEDs.

Features:

  • Compact design
  • Automotive conform LED control
  • Power consumption approx. 2.4 Watt
  • Multi Volt 10v-30v DC
  • 175 Lumens
  • Equivalent to IP65
  • 40° Light Angle

The luminaires have the following configuration:

  • Impact-resistant PC housing
  • Integrated lens optics
  • Low-loss polarity reversal protection
  • SMD - technology
  • Constant luminous flux within voltage range
  • Colour temperature 3000K or 4300K (+/-300)

Resolux 131 Series LED
LSR1313012/24V RESOLUX Round 12LED recessed spot $79.99 Buy this product from our online store

*Undervoltage reduces power input and luminous flux, the circuit board will not be damaged.

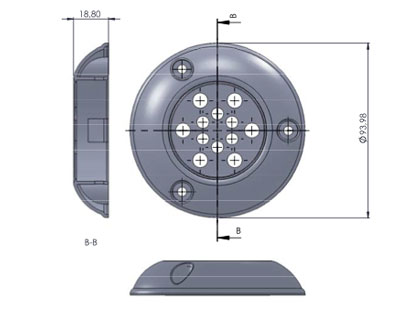

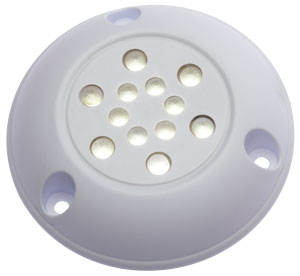

Stengel Resolux 133 Series LED Lighting

RESOLUX 131 is a very bright, energy saving surface-mounted LED spotlight with 12 LEDs.

The 12 Volt DC spotlight with a current draw of 200 mA (2.4Watt) has an illumination of 130 Lux within 1m distance, the equivalent of a 20 Watt halogen spotlight.

The lens optics provide an evenly illuminated surface area at an angle of 40°. This spotlight will be available in chrome matt, white and grey, the protection class is IP65. It will be fixed by snap-in hooks, which are integrated in the housing made of Polycarbonate. For measurements please see our drawing.

It is suitable for high switching frequency rates, wherever medium quantity of light with very low energy consumption is needed.

The durability of the LEDs within the indicated operating temperature below 55°C is approx. 30.000 hours.

Exceeding the recommended operating temperature reduces the durability of the LEDs.

Features:

  • Compact design
  • Automotive conform LED control
  • Power consumption approx. 2.4 Watt
  • Multi Volt 10v-30v DC
  • 165 Lumens
  • Equivalent to IP65
  • 40° Light Angle

The luminaires have the following configuration:

  • Impact-resistant PC housing
  • Integrated lens optics
  • Low-loss polarity reversal protection
  • SMD - technology
  • Constant luminous flux within voltage range
  • Colour temperature 3000K or 4300K (+/-300)

Resolux 133 Series LED
LSR1333012/24V RESOLUX Round 12LED Surface-Mounted LED Luminaire $99.95 Buy this product from our online store

*Undervoltage reduces power input and luminous flux, the circuit board will not be damaged.

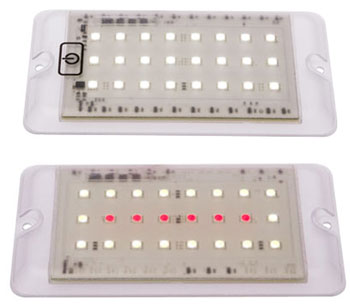

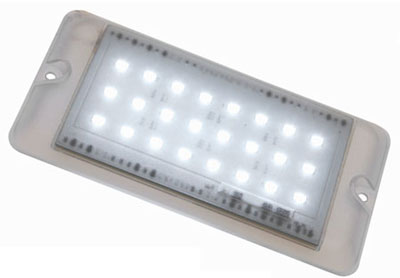

Stengel Resolux 140 Series LED Lighting

The RESOLUX 140 is a brand new designed surface mount LED luminaire from Stengel.

Ideal for interior Caravan, Motorhome, RV, Marine, or House applications.

Suitable for high switching frequency rates as well as long operation times.

Versions Available:

High / Low Light Setting (High nad Low Light output setting)

Coloured Night Time Running Light (to prevent loss of night vision)

Door Switch (Turns on / off when a Dorr is opened or closed)

Dimmable version (touch dimmer)

Features:

  • Compact design
  • Automotive conform LED control
  • Power 6.0 Watt
  • 12v DC (10.8v to 15.0v Input)
  • 24v DC (21.6v to 30.0v Input)
  • 530 Lumens
  • IP65
  • 120° Light Angle
  • Power Consumption: 12 V DC: 500mA / 24V DC: 250mA
  • Version with night light: 12V DC: 70mA / 24V DC: 35mA
  • Operating temperature: 40°C to +70°C
  • Connection via 0.5mm2 wire cable
  • Constant light output at complete voltage range



Resolux 140 Series High Low Output LED
LSR14012VStd Call us about this item
Resolux 140 Series Red NightLight LED
LSR14012R Call us about this item
LSR14024R Red 680LM IP65Dim $150.00 Buy this product from our online store
Resolux 140 Series Door Switch LED
LSR14012VSS 680LM IP65 SW SENS $150.00 Buy this product from our online store
LSR14024VSS 680LM IP65 SW Sens $150.00 Buy this product from our online store

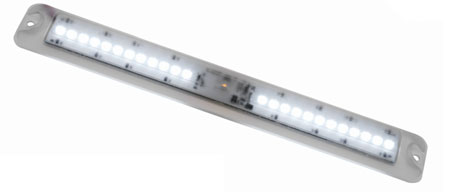

Stengel Resolux 141 Series LED Lighting

The RESOLUX 141 is a brand new designed surface mount LED luminaire from Stengel.

Ideal for interior Caravan, Motorhome, RV, Marine, or House applications.

Suitable for high switching frequency rates as well as long operation times.

Comes with a Cap Sense Switch (touch switch) along with the option of setting it up woth a door switch.

Features:

  • Compact design
  • Automotive conform LED control
  • Power 5.0 Watt
  • 12v DC (10.8v to 15.0v Input)
  • 24v DC (21.6v to 30.0v Input)
  • 400 Lumens
  • IP65
  • 120° Light Angle
  • Power Consumption: 12 V DC: 410mA / 24V DC: 205mA
  • Operating temperature: 40°C to +70°C
  • Connection via 0.5mm2 wire cable
  • Constant light output at complete voltage range



Resolux 141 Series LED
LSR14112VSW 141 SW 490LM IP65 $116.00 Buy this product from our online store

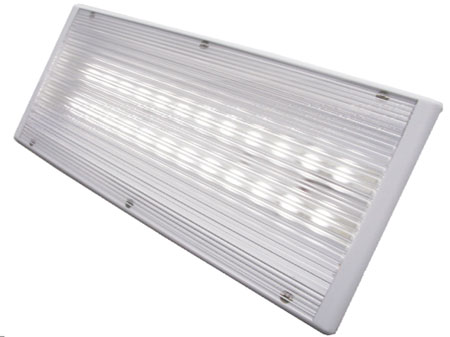

Stengel Resolux 160 Series LED Lighting

The Resolux 160 is is a brand new designed recessed mount LED luminaire from Stengel

Ideal for interior Caravan, Motorhome, RV, Marine, or House applications.

Suitable for high switching frequency rates as well as long operation times

Features:

  • Compact design
  • Automotive conform LED control
  • Power 7.0 Watt
  • 12v DC (10.8v to 15.0v Input)
  • 24v DC (21.6v to 30.0v Input)
  • 530 Lumens
  • IP65
  • 120° Light Angle
  • Power Consumption: 12 V DC: 580mA / 24V DC: 290mA
  • Operating temperature: 40°C to +70°C
  • Connection via 0.5mm2 wire cable
  • Constant light output at complete voltage range

Resolux 160 Series LED
LSR160LED12V Resolux LED 12V $139.00 Buy this product from our online store
LSR160LED24V8w Resolux LED 24v $180.00 Buy this product from our online store

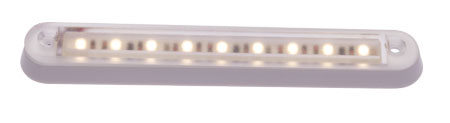

Stengel Resolux 195 Series LED Lighting

The Resolux 195 is is a brand new designed recessed mount LED luminaire from Stengel

Ideal for interior Caravan, Motorhome, RV, Marine, or House applications.

Suitable for high switching frequency rates as well as long operation times

Features:

  • Compact design
  • Automotive conform LED control
  • Power 0.6 Watt
  • 12v DC (10.8v to 15.0v Input)
  • 24v DC (21.6v to 30.0v Input)
  • 66 Lumens
  • IP65
  • 120° Light Angle
  • Power Consumption: 12 V DC: 50mA / 24V DC: 25mA
  • Operating temperature: 40°C to +70°C
  • Connection via 0.5mm2 wire cable
  • Constant light output at complete voltage rang

Resolux 195 Series LED
LSR19512 LED 12V Step IP65 $49.95 Buy this product from our online store
LSR19524 195 Surface Mount LED 24V $129.00 Buy this product from our online store

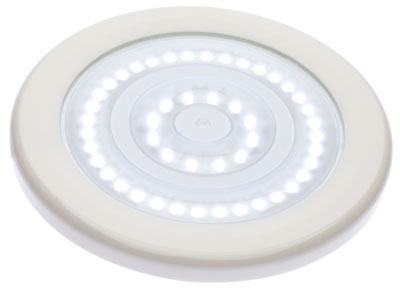

Stengel Resolux 200 Series LED Lighting

Resolux 200 Series LED
LSR20012Dim LED 12v 750LM IP65 w/DIMMER Operation either via touch-switch in centre of light OR using Yellow wire via momentary-on switch - quick touch (or sw) = on/off - slow touch (or sw) = dimmer/brighter $190.00 Buy this product from our online store
LSR20024Dim 750LM IP65 DIM $190.00 Buy this product from our online store

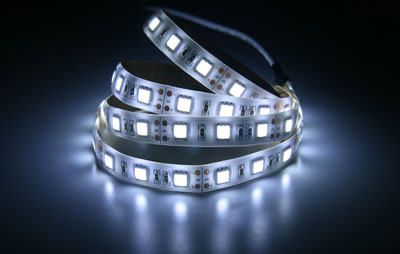

LED Strip Lighting

IP65 LED Flexible Strip High Power White

The Coolight™ WNWF series premium grade LED strip are a ultra high quality strip designed for maximum performance and efficiency. The high power white strip uses ultra reliable 5050 LED chips with specialised optics to produce one of the highest output LED strips per metre available.

The WNWF series also features integrated low voltage circuit protection technology and superior flexible properties enabling limitless applications. Fully rated to IP65, WNWF series strip can be used in all weather outdoor conditions or for interior use.

The strip is an easy and simple stick on mount and uses high quality 3M MP200 specification adhesive tape, for maximum bonding to a variety of surfaces. Suitable for OE and commercial applications where high output and reliability is paramount.

Features:

  • Premium Grade LED Strip
  • Superior light output per metre
  • High efficiency and low current consumption
  • Fully flexible
  • 3M Adhesive mounting

Specifications:

  • Applications: RV, Bus & Coach, Caravan, Custom Builds, Mining & 4x4
  • Functions: High Power White LED Strip for lighting
  • Voltage: 12 or 24 Volt
  • Colour: Temperature: High Power White 6000K
  • Led's/M: 60
  • Mounting: 3M MP200 adhesive tape
  • Environmental: Fully Sealed IP65
  • Dimensions: 300mm / 600mm / 1200mm / 5M Rolls

12v LED Strip Lighting - IP65 LED Flexible Strip High Power White
LEDS12ROLL IP65 Flex 5 meter 12 Volt $260.00 Buy this product from our online store
LEDS12METER IP65 Flex PER MTR $60.00 Buy this product from our online store
24v LED Strip Lighting - IP65 LED Flexible Strip High Power White
LEDS24600 IP65 Flex 24v 600mm $39.99 Buy this product from our online store

LED Floodlights

IP65 Weatherproof LED Floodlights

These high power LED floodlights are ideal for domestic and commercial lighting applications. They offer superb light output with the very low power consumption and little heat output.

Each floodlight is housed in a die cast metal IP65 weatherproof casing with tough industrial powder coating and stainless steel hardware for rust free performance outdoors. A glass fascia protects the long life LED from the elements.

A glass facia protects the long life 35,000 hour LED from the elements. They are ideal for any outdoor lighting purpose such as patios, sheds and car ports. 1m bare end fly lead.

The X 2316 12V dc model is fitted with a bare ended 1m fly lead. It is ideal for any outdoor lighting purposes such as patios, sheds and car ports.
For trades & renovators this floodlight may be fitted to the X 2328 floorstand or X 2326 tripod making an excellent work lamp.

SAA approved. Be wary of non-approved versions as our extensive testing showed cheaper models were poor quality and produced lower light output.

Model
X 2310A X 2316
Voltage Input:
12V DC
12V DC
Wattage:
10 Watts
20 Watts
Housing Colour:
White
Black

Lumens:

800lm
1600lm
Colour Temperature:
≈4000K
≈4000K
IP Rating:
IP65
IP65
Dimensions (mm):
115W x 135H x 84D
182W x 158H x 105D
Dimensions (exc. bracket) :
115W x 88H x 84D
182W x 140H x 105D
Weight
600g
1kg

IP65 Weatherproof LED Floodlights
LEDFLOOD10W 10W LED Floodlight $59.99 Buy this product from our online store
LEDFLOOD20W 20W LED Floodlight $89.99 Buy this product from our online store

IP54 Rechargeable LED Floodlights

These high powered LED work lights are ideal for domestic and commercial lighting applications. They offer superb light output with the very low power consumption and little heat output.

Powered by a built in lithium battery which will give up to 6 hours use from a single charge, and recharges in 4 hours.

It has a weatherproof casing with tough industrial powder coating and stainless steel hardware for rust free performance outdoors. A glass fascia protects the long life LED from the elements.

The X 2321 is supplied with both a mains and car charger. It is ideal for work sites, construction, mechanics and anywhere a lightweight, portable high powered light source is needed.

Model
X 2320 X 2321
Voltage Input:
12V DC
12V DC
Wattage:
10 Watts
20 Watts

Lumens:

675lm
1300lm
Colour Temperature:
≈4000-4500K
≈4000-4500K
IP Rating:
IP54
IP54
Dimensions (mm):
145.5W x 233H x 178D
215W x 263H x 185.5D
Weight
1.32kg
2.1kg

IP54 Rechargeable LED Floodlights
6922055104103 watt rechargable LED worklight. Comes with 12/24v vehicle charger, 240v charger and handle assembly. $109.99 Buy this product from our online store
6922055104202 watt rechargable LED worklight. Comes with 12/24v vehicle charger, 240v charger and handle assembly. $149.99 Buy this product from our online store

Narva Interior Lights

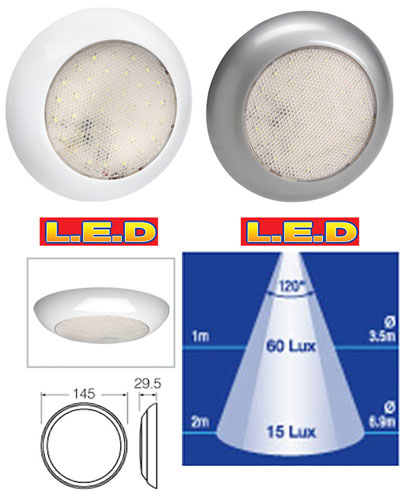

Narva 9-33V 145mm L.E.D Interior Lamps

Stylish L.E.D lamp ideal for modern vans, caravans and motorhome's delivering a bright white light with ultra low current draw.



87570 - 9-33V 145mm L.E.D Interior Lamp, White Base



Features:

  • 9-33V multi-voltage L.E.D technology
  • Virtually unbreakable polycarbonate lens
  • Pre-wired and easy to install
  • Ultra low current draw: 0.38A at 12V, 0.20A at 24V

87570S - 9-33V L.E.D Interior Lamp with Silver Satin Base



Features:

  • 9-33V multi-voltage L.E.D technology
  • Virtually unbreakable polycarbonate lens
  • Pre-wired and easy to install.
  • Ultra low current draw: 0.38A at 12V, 0.20A at 24V



Narva 9-33V 145mm L.E.D Interior Lamps
9314464175701 9-33V LED Interior Lamp White Base $54.99 Buy this product from our online store
9314464275708 LED Int Lamp Silver 9-33V LED Interior Lamp Silver Satin Base $54.99 Buy this product from our online store

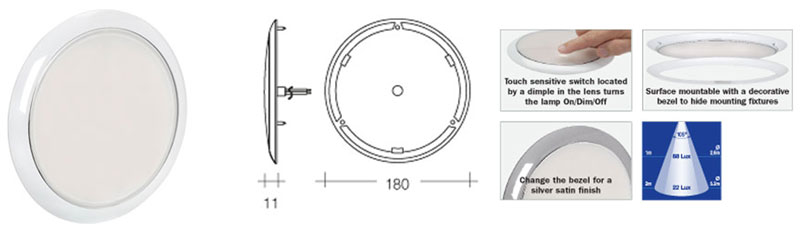

Narva 9-33v Saturn L.E.D Interior Lamps with Touch Sensitive On/Dim/Off Switch

87504 - 9-33v Saturn 180mm L.E.D Interior Lamp with Touch Sensitive On/Dim/Off Switch

Large, ultra slim lamp ideal for all internal light applications

Features:

  • Inbuilt On/Dim/Off Switch
  • Surface mountable with decorative bezel to hide mounting fixtures
  • Only a 10mm hole required for cable exit
  • Memory function recalls last setting when centrally switched
  • Smooth yet powerful SMD L.E.Ds
  • Virtually unbreakable polycarbonate lens
  • 9-33 volt Multi-voltage
  • IP66
  • Low current draw: 0.26 at 12V and 0.13 at 24V

Narva 9-33V Saturn L.E.D Interior Lamps
9314464001185 *DISCONTINUED* $82.99 Buy this product from our online store

87520 - 9-33v Saturn Oval L.E.D Interior Lamp with Touch Sensitive On/Dim/Off Switch

Ultra slim and stylish design, ideal for lighting central areas in all RV applications

Features:

  • Inbuilt On/Dim/Off Switch
  • Surface mountable with decorative bezel to hide mounting fixtures
  • Only a 10mm hole required for cable exit
  • Memory function recalls last setting when centrally switched
  • Smooth yet powerful SMD L.E.Ds
  • Virtually unbreakable polycarbonate lens
  • 9-33 volt Multi-voltage
  • IP66
  • Low current draw: 0.29 at 12V and 0.14 at 24V

Narva 9-33V Saturn L.E.D Interior Lamps
9314464001284 9-33v 280mm LED Oval $82.99 Buy this product from our online store

Narva Exterior Lights

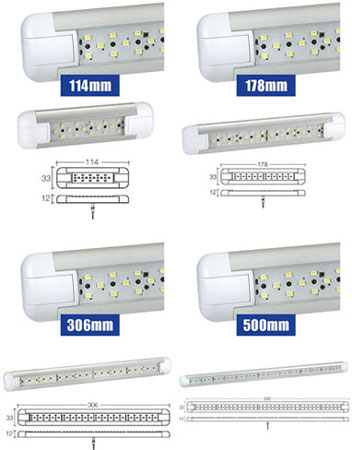

Narva 9-33v High Powered L.E.D Strip Lamps

Robust aluminium housing and impact resistant design built to withstand harsh exterior environments.



S.M.D LED's deliver a powerful spread of light with low current draw and IP66 rating.



87540 - Current Draw: 0.043A at 12V



87541 - Current Draw: 0.086A at 12V



87542 - Current Draw: 0.176A at 12V



87543 - Current Draw: 0.309A at 12V



Narva 9-33 Volt High Powered L.E.D Strip Lamps
NAR87540 Call us about this item
9314464001826 178mm 9-33v LED Strip $34.99 Buy this product from our online store
9314464001833 306mm 9-33v LED Strip $62.99 Buy this product from our online store
9314464001840 500mm 9-33v LED Strip $79.99 Buy this product from our online store

Sam Allen Interior Lights

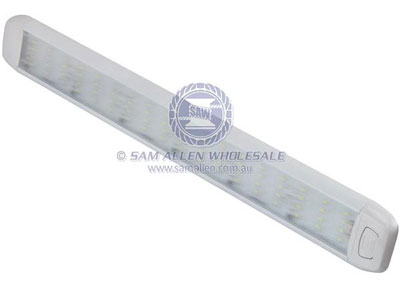

Sam Allen Slim line Ultra Bright LED Ceiling Light

Ideal for use in many Marine, Automotive, Caravan, Motor-Home, Camper Trailer Applications

Most commonly used as Cabin or Galley Lighting.

Features:

  • 72 x bright 3020 chip LED's
  • White Gloss Powder Coated Finish
  • Aluminium Housing.
  • Slim line attractive design.
  • Low profile switch.
Part No.
LED Colour
Lumens
Volts
Amps
Watts
Length (mm)
Width (mm)
70981
Cool White
216
12
0.48
6.2
368
45



Slimline Ultra Bright LED Ceiling Light
9330420163704 LED Slimline w/Switch $69.99 Buy this product from our online store

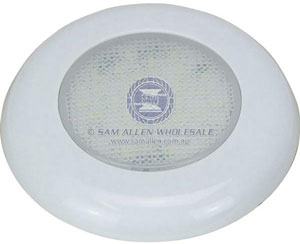

Sam Allen Surface Mounted Round LED Down Lights

Ideal for use in many Marine, Automotive, Caravan, Motor-Home, Camper Trailer Applications

Most commonly used for Cockpit Lighting or Down Lights for small areas.

Features:

  • 30 x super bright LED's with a light output comparable to a 15-20 watt halogen.
  • Waterproof rating of IP66.
Part No.
LED Colour
Frame Colour
Lumens
Volts
Amps
Watts
Diameter (mm)
Thickness (mm)
70940
Cool White
White
100
12
0.2
2.8
83
12

Surface Mounted Round LED Down Light
9330420123456 LED Round Down Light 12v $39.99 Buy this product from our online store

Sam Allen Exterior Lights

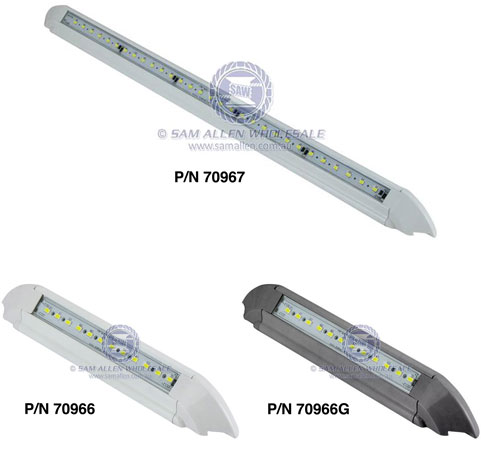

Sam Allen LED Aluminium 45° Awning Lights

Ideal for use in many Marine, Automotive, Caravan, Motor-Home, Camper Trailer and Domestic Applications. Most commonly used for Caravan, Motor-Home and Camper Trailer Awning Lights. Also Suitable for Rocket Launcher, Under Gunwale & Targa Top Bar Lighting.

Features:

  • LED Chip Sets:
    • 70966/70966G: 12 x LG chip LED's
    • 70967/70967G: 30 x LG chip LED's
  • IP66 waterproof rating.
  • 45 Degree Light Angle.
  • 120 Degree Light Spread.
  • Surface Mounted
  • Aluminium frame with white or grey powder coating.
Part No.
LED Colour
Frame Colour
Lumens
Volts
Amps
Watts
Light Spread
Length (mm)
Width (mm)
Height/Depth (mm)
Wires
70966
Cool White
White
400
12
0.5
6
120°
243
43
30
780mm
70966G
Cool White
Grey
400
12
0.5
6
120°
243
43
30
780mm
70967
Cool White
White
950
12
0.9
11
120°
582
43
30
780mm
70967G
Cool White
Grey
950
12
0.9
11
120°
582
43
30
780mm



LED Aluminium 45 degree Awning Lights
9330420129069 LED Awning Light-Small $58.70 Buy this product from our online store
9330420174342 LED Awning Light-Small $58.70 Buy this product from our online store
9330420129199 LED Awning Light-Large $99.99 Buy this product from our online store

Sam Allen LED Waterproof Porch Light

Ideal for use in many Marine, Automotive, Caravan, Motor-Home, Camper Trailer Applications

Most commonly used as Awning and Porch Lighting on Caravans and Motor-Homes

Features:

  • 18 x super bright LED's comparable to a 20 watt halogen.
  • Waterproof rating of IP66.
  • Waterproof on/off switch.
Part No.
LED Colour
Frame Colour
Lumens
Volts
Amps
Watts
Length (mm)
Width (mm)
70973
Cool White
Cool White
180
12
0.13
1.6
173
110

LED Waterproof Porch Light
9330420135749 LED Waterproof Porch Lig $39.99 Buy this product from our online store

Sam Allen LED Touch Ceiling Light

Ideal for use in many Marine, Automotive, Caravan, Motor-Home, Camper Trailer Applications

Most commonly used in Boat Cabins, Cockpits, Caravans, RV's, Motor-Homes and Camper Trailers.

This LED surface mount ceiling light has a 3 stage touch sensor switch which can also be dimmed simply by holding the touch.

The blue light function is great for those middle of the night wake ups.

Features:

  • Next Gen Ultra Bright LED's: 6 Blue or Red LED's Nightlight with 96 Cool White LED's
  • 3 Way Touch Sensor Switch with Dimming Feature:
    • First touch - Blue or Red LED (Nightlight)
    • Second touch - White LED
    • Third touch - Off.
  • Ultra long service life: rated to 50,000 hours.
  • Dimmable - Touch and hold dimming feature controls brightness level for both Red/Blue and White LED's
  • The night light Red/Blue LED's are perfect for night vision.
  • Aluminium frame and white polycarbonate bezel.
  • 600mm tinned wires for easy installation.
  • Waterproof rating of IP44.
  • Surface Mount.
Part No.
LED Colour
Frame Colour
Lumens
Volts
Amps
Watts
Length (mm)
Width (mm)
Height/Depth (mm)
Wires
709770
White / Blue
White
720
12/24
1
8
165
165
17
600mm

LED Touch Ceiling Light
709770 Dimmable LED White/Blue $121.00 Buy this product from our online store

Sam Allen Low Profile LED Courtesy Light

Bright and durable surface mount illumination suitable for a variety of indoor or outdoor applications.

Commonly used to light RV Storage Lockers, Cupboards and Tool Boxes.

With an IP66 rating they are also suitable for applications where they are exposed to salt water spray.

Features:

  • 1 x Japanese nichia 3535 LED sealed in epoxy.
  • Polycarbonate optical lens.
  • 304G stainless steel cover.
  • Includes : 228mm tinned wire.
  • 4 x 4 gauge screws.
  • Waterproof rating of IP66.
  • Rated at 50000 hours.
Part No.
LED Colour
Lumens
Volts
Amps
Watts
Diameter (mm)
709664
Cool White
50
12
0.1
1.2
38

Low Profile LED Courtesy Light
9330420164602 LED 12v Courtesy Light $31.70 Buy this product from our online store

LED Map / Reading Lights

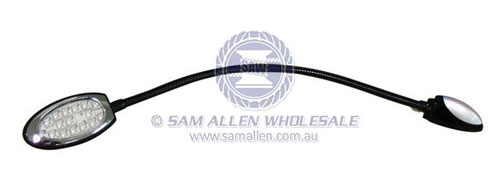

Sam Allen LED Map / Reading Lights

Ideal for use in many interior Marine, Automotive, Caravan, Motor-Home, Camper Trailer and Domestic Applications

Most commonly used for bed head lighting in camper trailers.

Features:

  • 12 x super bright 5630 SMD LED's with a light output comparable to a 10 watt halogen.
  • Flexi neck enabling it to be put in almost any position required.
  • Mini Rocker switch.
  • 2 x Sizes available
Part No.
LED Colour
Frame Colour
Lumens
Volts
Amps
Watts
Length (mm)
Width (mm)
70971
Cool White
Black
84
12
0.1
2.4
500
40
70972
Cool White
Black
84
12
0.1
2.4
460
40

LED Map / Reading Lights
9330420135727 Call us about this item
9330420135732 LED Map Light 325 mm $44.99 Buy this product from our online store

Sam Allen Stainless Steel Reading Light

Ideal for use in many interior Marine, Automotive, Caravan, Motor-Home, Camper Trailer and Domestic Applications

Most commonly used as a cabin or bunk reading light.

Features:

  • 10 x super bright 5050 SMD chip LED's with a light output comparable to a 15 watt halogen.
  • 120° Light Angle
  • 2 way switch on/off.
  • Polished stainless steel frame.
Part No.
LED Colour
Lumens
Volts
Amps
Watts
Height (mm)
Base (mm)
709876
Warm White
150
10-30
.17
2
125
86

Stainless Steel Reading Light
709876 Call us about this item

Sam Allen LED Swivel Reading Light

Ideal for use in many interior Marine, Automotive, Caravan, Motor-Home, Camper Trailer and Domestic Applications

Most commonly used as a cabin or bunk reading light

Features:

  • 6 x super bright 5050 SMD LED's.
  • Rocker switch.
  • Swivel.
Part No.
LED Colour
Lumens
Volts
Amps
Watts
Height (mm)
Base (mm)
70942
Cool White
51
12
.12
1.5
46
42x80

LED Swivel Reading Light
9330420123463 LED Swivel Reading Light $39.90 Buy this product from our online store
