Alzone racking parts

Alzone Racking Parts

Need a quote for racking click here

NEW "Alzone 360 System"TTE APPROVED



Alzone Roof Mount Frames

Alzone are an Australian owned and Operated company who have specialised in Solar Mounting Systems since 2001.

Alzone supply Australian made Solar Mounting Systems (Solar Racking) and have been supplying them throughout Australia and New Zealand longer than most other racking / mounting system suppliers have even existed.

All of the Alzone products are source within Australia. Rails are manufactured in Australia and components are source from Australian companies.

When Alzone first started supplying mounting systems there were only 5 Solar Panels Manufacturers supplying solar products to Australia, compared to now where there are hundreds maybe even thousands of solar panel manufacturers.

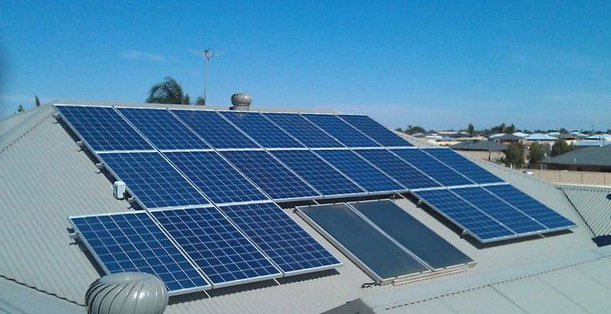

Alzone Solar Panels Mounting systems or Solar racking are supplied with complete Engineer Compliance for AS / NZS Wind Loading Standards (as well as others) and is backed by an UNPARALLELED Industry Leading 20 Year Warranty.

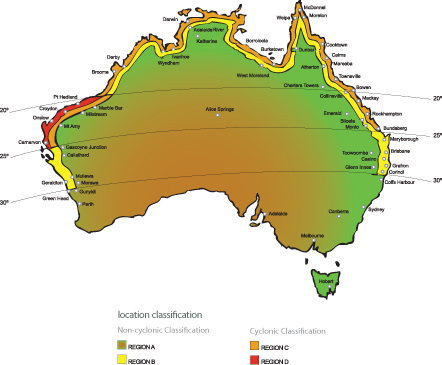

Alzone Solar Panel Mounting Systems are suitable for use in All Wind Zones in Australia. Including Region D Cyclone Areas on the WA Coast. (Cyclone Region D require Cyclone mounting kits)

Alzone have a very versatile product range which covers a wide range of installations such as:

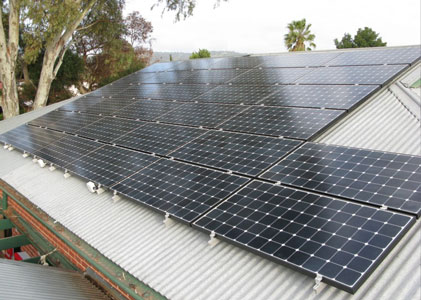

NEW Alzone Cwic Rail Tin, Tile and Tilt Framing Mounting Systems

New from Alzone, an Innovative Rail product which is Versatile, Quick to Install and Durable.

UNPARALLELED INDUSTRY LEADING 20 YEAR WARRANTY

Alzone Cwic Rail is compatible with parallel to roof tin and tile mounting.

This means the Same Rail can be used on Tilt mounts installed on tin roofs via the Telescopic Leg and Mounting Hinges.

This benefits the customer due to reduced inventory and cost outlay due to the versatility or rail usage.

If you already know what you require, scroll down for product listings.

If you are unsure or do not know what you require you can click on the link below, provide the information listed below in blue, and we will provide pricing for a Mounting system to suit your requirements.

CONTACT US FOR COMPLETE ROOF MOUNTED SYSTEM DESIGN

JUST PROVIDE PANEL DIMENSIONS, QUANTITY OF PANELS, ROOF TYPE, AND WHETHER YOU WANT FLAT ON ROOF MOUNTING OR TILT FRAMING (TILT FRAMING NOT AVAILABLE FOR TILED ROOFS)



Alzone Cwic Rail has the following Features / Benefits:-

System design is Wind Load Certified by an Experienced and Qualified Australian Structural Engineer for all Australian and New Zealand Wind Regions

Product Warranted against manufacturing fault and corrosion for 20 years (conditions apply)

Australian Compliance Certificate to meet:


ALZONE RAILS

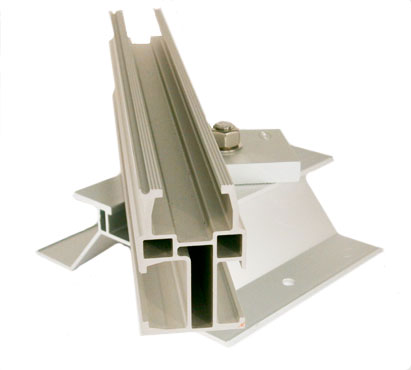

NEW ALZONE CWIC RAIL

Alzone Cwic Rail is a more economic and faster alternative to the Alzone Eco Rail.

Alzone Cwic Rail is compatible with parallel to roof tin and tile mounting.

The Same Rail can be used on Tilt mounts installed on tin roofs via the Telescopic Leg and Mounting Hinges.

This benefits the customer due to reduced inventory and cost outlay due to the versatility or rail usage.

When used in accordance with the Alzone's T.T.E- 360 system., rail can be rotated in any direction to facilitate north facing aspect and is not limited from the edge of roof mounting other than for safety or ease of system maintenance.

Alzone Cwic Rail has the following Features / Benefits:-

Product Warranted against manufacturing fault and corrosion for 20 years (conditions apply)

Australian Roof Mount Compliance Certificate to meet:

SPMRC2700 Call us about this item
SPMRC3150 Call us about this item
SPMRC3500 Call us about this item
SPMRC4300 Call us about this item
SPMRC5300 Call us about this item

System design is Wind Load Certified by an Experienced and Qualified Australian Structural Engineer for all Australian and New Zealand Wind Regions

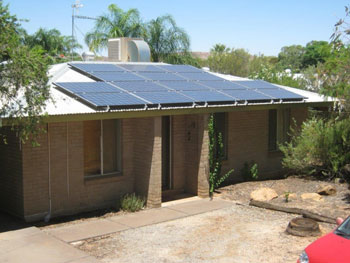

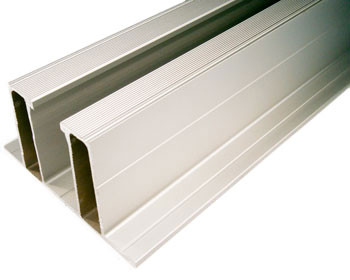

NEW ALZONE BRIDGING RAIL

Alzone's NEW Bridging Rail is a more economical alternative to the old Easy Rail.

This lower profile rail has less extrusions, reducing the amount of hardware required to attach the rail to mounting brackets.

Bridging Rail can be installed in portrait or landscape position on metal or concrete roofing.

The “V” groove on each side of the base allow the roof fixing screws to be aligned with the top of the two adjoining peaks when running rail from gutter to peak on corrugated roofing.

The design of rail bolt shoe allows panel clamp bolts to be installed anywhere along the rail length. A wide centre slot allows roofing fasteners to be installed through the middle of the Bridging Rail if this type of installation is required

Compliance for building peak heights up to 15 Mts.

Compliance for taller structures can be obtained pending suitability of building structure and recommendations by a qualified structural/building engineer.

Dedicated slots on both top sides of rail assist the grounding of panels to rail via the Alzone stainless steel grounding bar.

Fully anodised in Grade 6106 T6 Aluminium.

Rail is useful for spanning areas where the roof understructure is not within an adequate position and for mounting the Alzone Tilt racking via the Alzone Hinge.

Bridging Rail is designed in Australia and Made in Australia by a Quality Assured Manufacturer.

Australian Roof Mount Compliance Certificate to meet:

SPMRB3150 Call us about this item
SPMRB4300 Call us about this item
SPMRB5300 Call us about this item

System design is Wind Load Certified by an Experienced and Qualified Australian Structural Engineer for all Australian and New Zealand Wind Regions

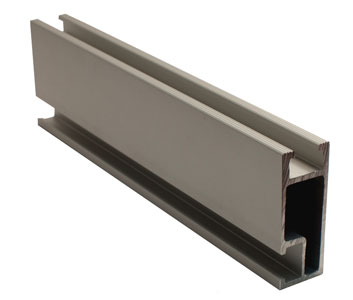

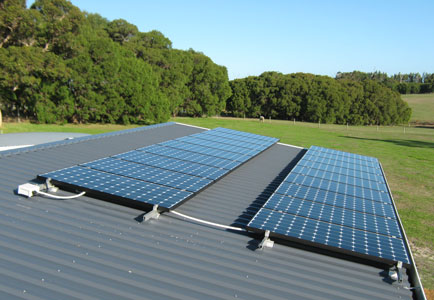

ALZONE ECO RAIL

Alzone's Eco-Rail is a more economical alternative to the standard non-flanged rail.

This lower profile rail has less extrusions, reducing the amount of hardware required to attach the rail to mounting brackets.

The longitudinal grooves on the top of rail ensure exceptional grip for the module securing clamps.

Eco-Rail is compatible with existing Alzone mounting brackets and clamps.

Manufactured from grade T6 aluminium this rail comes in various lengths and is anodised for increased durability.

Eco-Rail systems is suitable for use in all Australian wind regions and approved to meet wind loading, building structure and structural design standards.

When used in accordance with the Alzone's T.T.E- 360 system., rail can be rotated in any direction to facilitate north facing aspect and is not limited from the edge of roof mounting other than for safety or ease of system maintenance.

Eco Rail is designed in Australia and Made in Australia by a Quality Assured Manufacturer.

Australian Roof Mount Compliance Certificate to meet:

SPMRE2700 Call us about this item
SPMRE2840 Call us about this item
SPMRE3150 Call us about this item
SPMRE3500 Call us about this item
SPMRE4300 Call us about this item
SPMRE5300 Call us about this item
SPMRE5880 Call us about this item

System design is Wind Load Certified by an Experienced and Qualified Australian Structural Engineer for all Australian and New Zealand Wind Regions

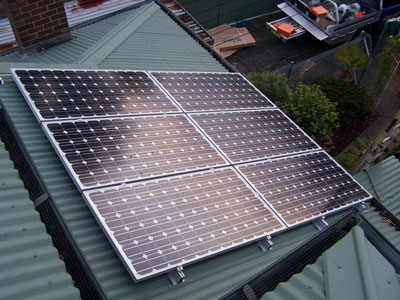

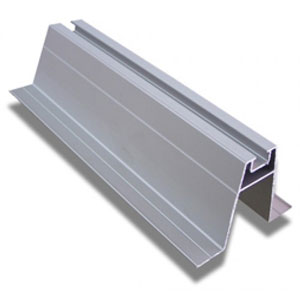

ALZONE EASY RAIL

Easy-Rail is an economical aluminium solar rail section for mounting solar modules to flat, corrugated or tiled roofs.

There is no need for fitment of additional feet as this is already incorporated in the rail base.

Top slots for the rail bolts and a groove in the foot section to align fastening screws make it easier to install.

Longitudinal slots on top edge provide added grip for securing end clamps.

Convenient lengths are available and these come coated in a durable anodised finish.

Easy Rail is designed in Australia and Made in Australia by a Quality Assured Manufacturer.

Australian Roof Mount Compliance Certificate to meet:

SPMRA2700 Call us about this item
SPMRA3150 Call us about this item
SPMRA3500 Call us about this item
SPMRA4300 Call us about this item

System design is Wind Load Certified by an Experienced and Qualified Australian Structural Engineer for all Australian and New Zealand Wind Regions

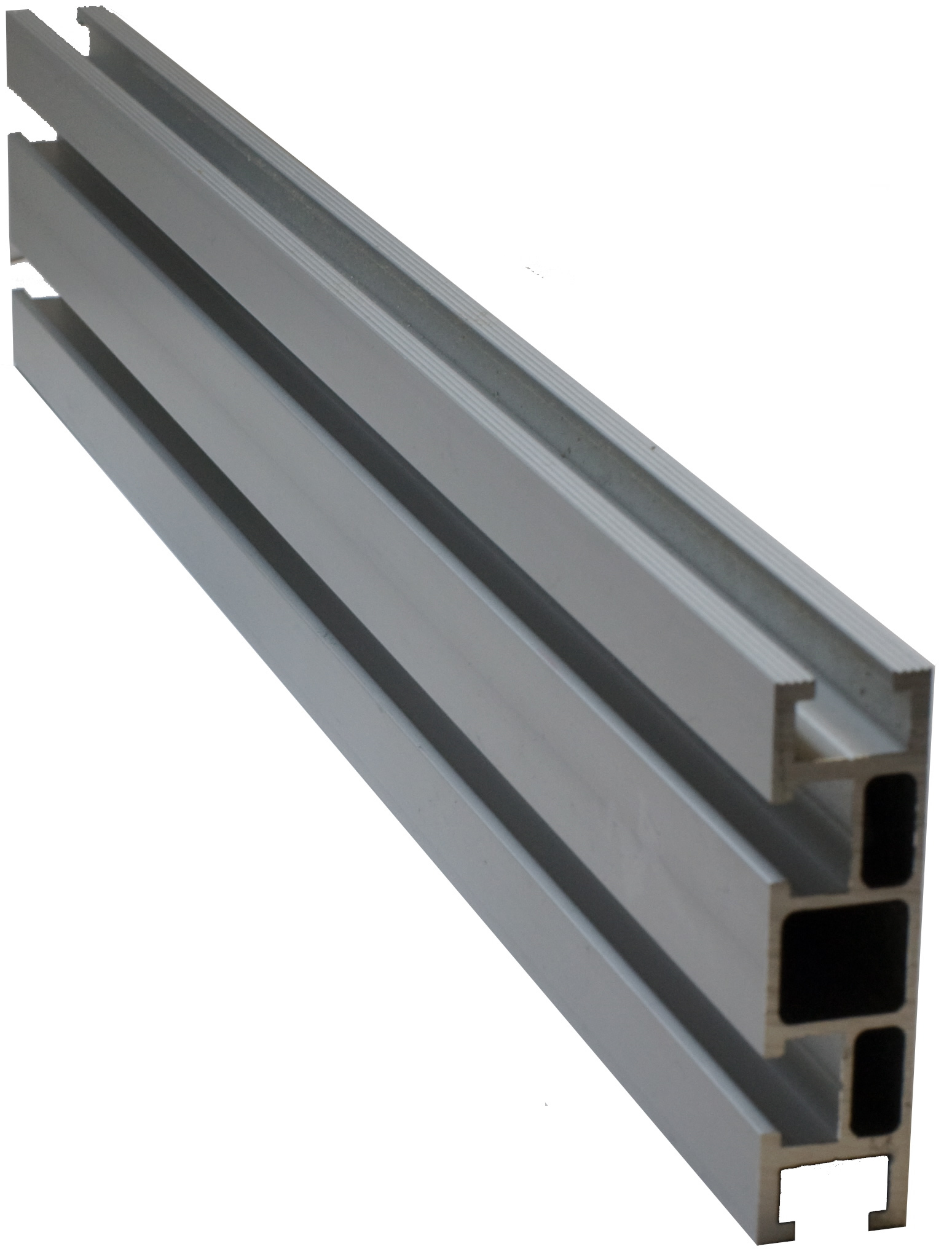

ALZONE STANDARD RAIL

The standard Alzone rail section provides the main support structure for Ground Mounted Systems and used to be used on Roofs until first the Eco Rail and then the Cwic Rail superseded it..

Edge slots on the top and bottom of rail allow for installation of middle and end clamps to the rail via Alzone rail bolts.

Longitudinal slots on top edge provide added grip for securing end clamps to rail.

Various rail lengths are available and all these have two mid slots for convenient mounting of Alzone mounting feet and brackets.

Made from durable aluminium with anodising for increased weather protection these rail systems are engineer certified to comply with Australian standards for wind zones A, B, C & D

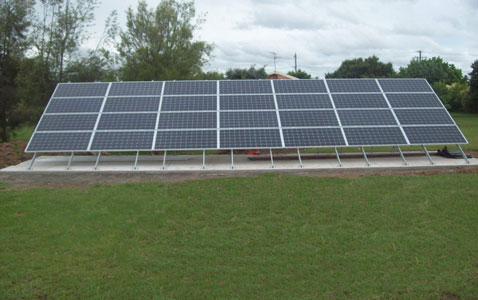

CLICK HERE FOR GROUND MOUNT INFO

Australian Ground Mount Compliance Certificate to meet:

SPMR2700 Call us about this item
SPMR2840 Call us about this item
SPMR3150 Call us about this item
SPMR3500 Call us about this item
SPMR3894 Call us about this item
SPMR4300 Call us about this item
SPMR5300 Call us about this item
SPMR5880 Call us about this item

System design is Wind Load Certified by an Experienced and Qualified Australian Structural Engineer for all Australian and New Zealand Wind Regions


ALZONE LEG RAIL


werThe Alzone Leg Rail is used with a SHS section to provide an adjustable rear leg on Cwic Rail Tilt racking systems.

It can also be used as a main rail to mount solar modules, but compliance is not offered in this use.

Slotted top and bottom sections allow use of the standard Alzone stainless clamp bolts and mounting bolts.

Leg Rail is made from Grade 6106 T6 anodised aluminium to improve durability and comes in a standard 3900mm length

100% Anodised



P/No. SPMRL3900

Australian Compliance Certificate to meet:



RV-Rail
SPMRL3900 Call us about this item

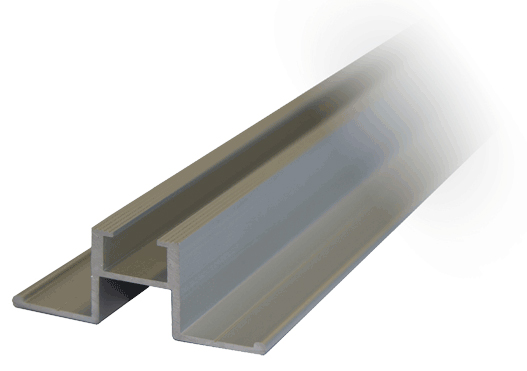

ALZONE RV RAIL


RV rail is a convenient method of attachment of solar modules to the roofs of caravans and motor homes.This aluminium rail is specially designed to take standard Alzone rail bolts and clamps. A grooved top section ensures a tight grip between the clamp and module.

Grooves in the foot of the RV rail allow easy alignment for fasteners.The anodised aluminium finish gives improved appearance whilst providing greater weather protection.RV rail comes in three convenient sizes listed below:-

100% Anodised

Dimension

W 60 x H 23 x L 2750mm

W 60 x H 23 x L 3700mm

W 60 x H 23 x L 5000mm

Australian Compliance Certificate to meet:



RV-Rail
SPMRVE2750 Call us about this item
SPMRVE3720 Call us about this item
SPMRVE5059 Call us about this item

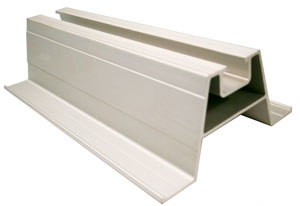

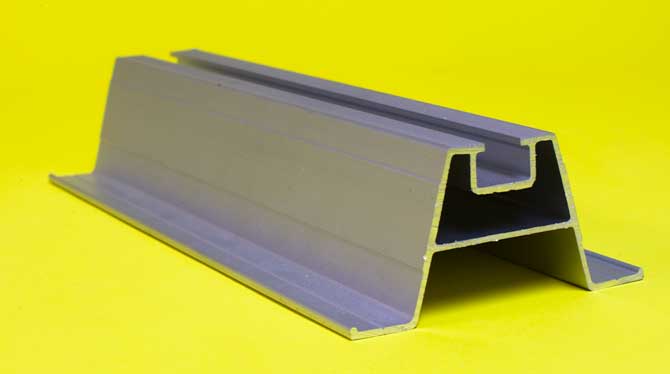

ALZONE MINI EASY RAIL

This Rail is an alternative to the standard Easy-rail and RV rail. The lower profile narrower rail allows modules to be mounted at reduced height while still enjoying the convenience of clamping the Solar modules with Alzone mid and end clamps. The anodised finish and aluminum construction makes it a durable product for use on caravans, marine, motor homes or standard roofing. It has alignment grooves for ease of drilling along with longitudinal ribs on top for added grip to modules and end clamps.

100% Anodised

Dimension

2750mm
3550mm

-

Dimension

SPMRMINIEASY

Australian Compliance Certificate to meet:



Mini Rail
SPMRMINIEASY2750 Call us about this item
SPMRMINIEASY3550 Call us about this item

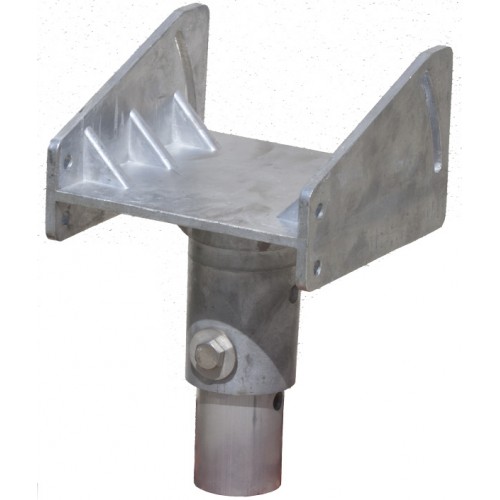

ALZONE POLE MOUNT CASTING

Pole Mount & Adaptor

1The Alzone Pole mount bracket is cast from Aluminium.

When combined with Alzone rail it is designed to carry up to two large solar panels (each a maximum of 1700mm x 1000mm) or a series of smaller sized modules.

The Alzone pole mount comes with an internal adaptor tube to suit 2 sizes of pipe, the pipe diameter being determined by the maximum height of the panels as well as the size and number of modules.

The tilt angle can be adjusted from 10 degrees through to 35 degrees.

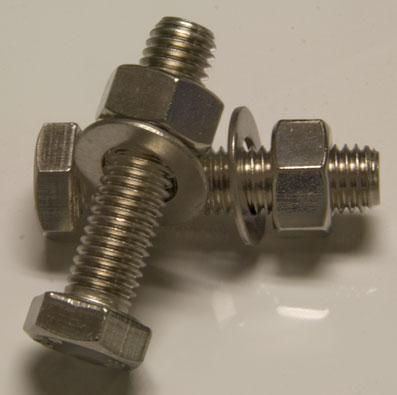

Stainless steel mounting hardware and anodised (corrosion resistant) aluminium rail is provided when the pole mount is purchased as a pole mount kit (P/No. SPMPMKIT).

Panel clamps and clamp bolts are ordered separately to they suit the number of modules and the size of the solar modules frame.

The pole required to mount these is not included with the kit and can be sourced from your local metal supply company. It is recommended to use a heavy walled galvanised pipe with either 40NB (48.3mm O.D.) or 50NB (60.3mm O.D.). The 80NB ( 88.90mm O.D.) sized pipe if compliance is required.

The standard pole mount kit uses Alzone Standard Rail and Alzone Eco Rail in combination with other Alzone components.

Alzone Pole Mount Kits are wind load certified for use in Australian Wind region A, providing the concrete footing, module installed height and panel dimensions comply. Compliance is available only when system uses the 80NB pole.

CLICK HERE FOR POLE MOUNT INFO

P/No. SPMPC / SPMPB

Australian Pole Mount Compliance Certificate to meet:

Pole Mount
SPMPB Call us about this item
SPMPC Call us about this item


MOUNTING FEET

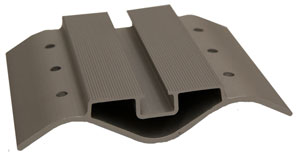

CORRUGATED MOUNTING BRACKET - SMALL

P/No. SPMFCMBCKT2

This corrugated foot mounting bracket provides a versatile solution to mounting Alzone Cwic Rail and Eco Rail onto corrugated roofing.

Using the SPMCLAMP allows both the Cwic Rail and Eco Rail to be mounted in any orientation on the roof

When used in raised systems the foot allows the raised array to be rotated to face north.

When used in combination with Alzone brackets SPMRAFB or SPMFLBCKTMK2 this foot allows the Alzone rail to be mounted higher off the roof, to allow for increased airflow. This reduces module loss of performance from heat transfer off roof sheeting

The anodized finish provides superior weather resistance to mill finished aluminium while six pre drilled pilot holes on the foot ensure ease of fitting.

Dimensions W 125mm x L 110mm x H 25mm

100% Anodised

*Australian Compliance Certificate to meet:

FOOT
SPMFCMBCKT2 Call us about this item

*Compliance is only offered when used in conjunction with Alzone Racking Systems (Rails, Feet, Clamps e.t.c)


CORRUGATED MOUNTING BRACKET - LARGE

P/No: SPMFLMC

This taller profile Alzone corrugated mounting bracket provides an alternative solution to increase the clearance of modules from roofing. This also reduces module loss of performance from heat transfer off roof sheeting.
Additionally it provides added clearance from accumulation of leaf debris.

Using the SPMCLAMP allows both the Cwic Rail and Eco Rail to be mounted in any orientation on the roof

When used in raised systems the foot allows the raised array to be rotated to face north.

The foot is manufactured from grade 6106 T6 aluminium and finished in a clear anodized for superior weather resistance.

A choice of six pre drilled holes are provided to make installation more convenient.

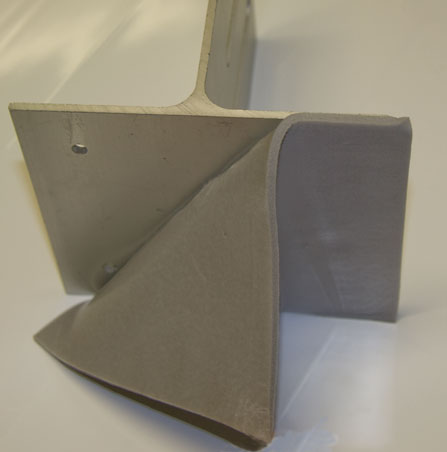

Alzone isolation pad (SPMFPAD) is recommended as a gasket and isolator for use with this product.

Dimension W 110 mm x L 110 mm x H 52 mm

100% Anodised

*Australian Compliance Certificate to meet:

Corrugated Mounting Bracket - Large
SPMFLMC Call us about this item

*Compliance is only offered when used in conjunction with Alzone Racking Systems (Rails, Feet, Clamps e.t.c)

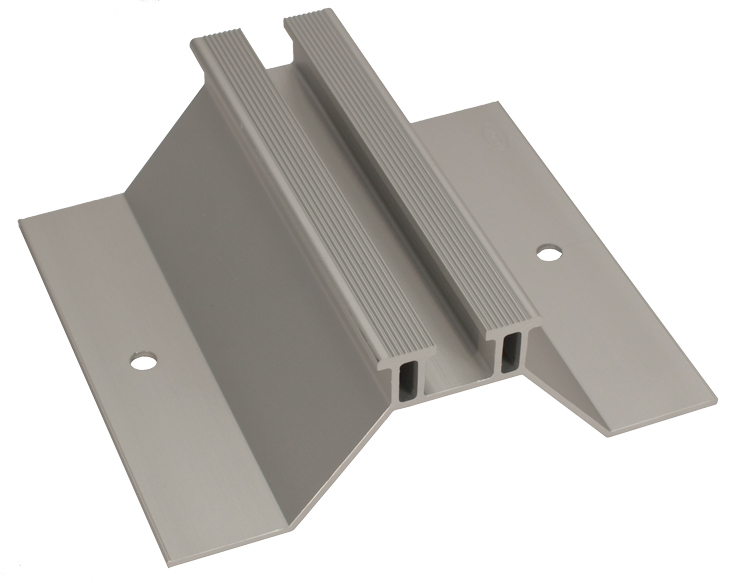

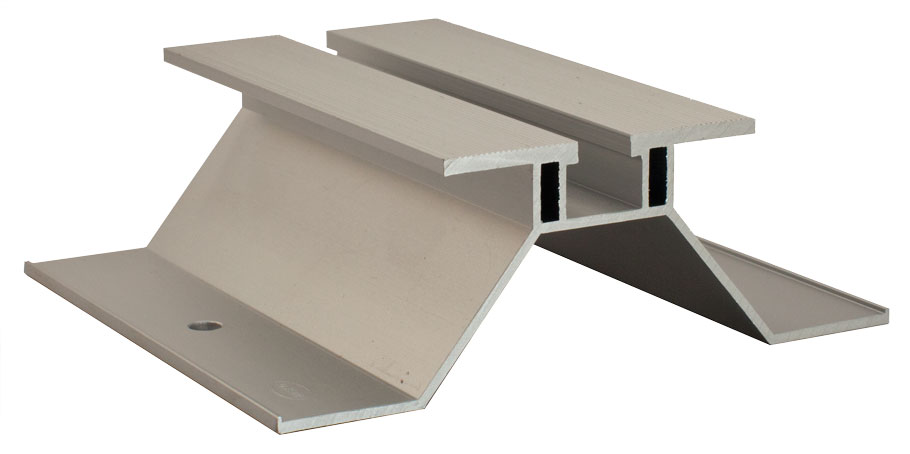

TRIMDEK MOUNTING BRACKET - STD

P/No: SPMFTDMBCKT

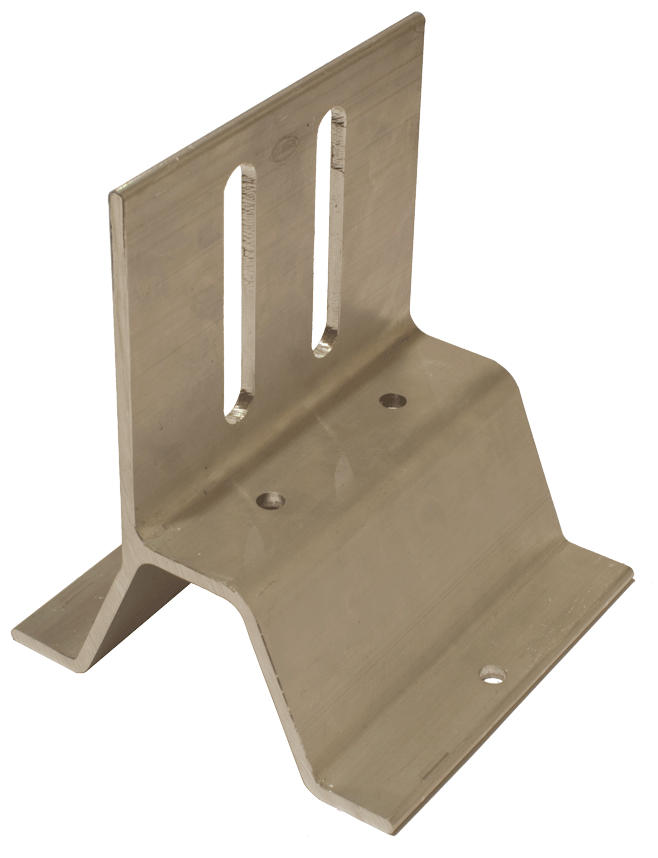

The Alzone Trimdek foot was designed to mount over the raised peak of Trimdek sheeting.

The foot allows the attachment of single modules or multiples without the need to fit within the valley of the sheeting.

This foot is compatible with existing Alzone brackets or can be used to secure Alzone Eco Rail using a SPMCLAMP with single nut, bolt & Washer. This foot can also be utilised as a mount on other flat profile sheeting .

The Alzone SPMFPAD or SPMTAPE will provide a gasket and isolation between the different metal surfaces.

Clear anodising on this T6 grade aluminium bracket provides increased weather resistance and matches existing Alzone rail and brackets.

100% Anodised

*Australian Compliance Certificate to meet:

Trimdek foot
SPMFTDMBCKT Call us about this item

*Compliance is only offered when used in conjunction with Alzone Racking Systems (Rails, Feet, Clamps e.t.c)

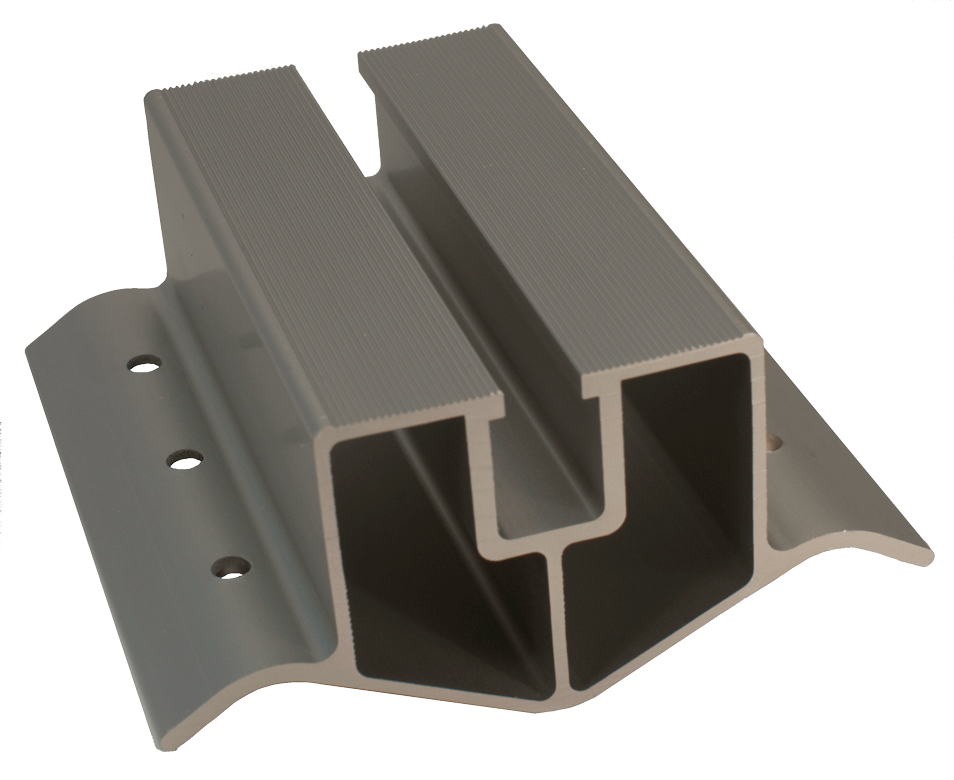

TRIMDEK MOUNTING BRACKET - LARGE

P/No. SPMFLTDMBCKT

The Alzone Trimdek Mounting bracket was designed to mount over the raised peak of Trimdek Sheeting.

The foot allows attachment of single modules or multiples using Alzone Rail.

Fixing is via a SPMCLAMP with single nut and washer allows for rotation of rail at 360 degrees.

This foot can also be utilised as a mount on flat profile sheeting.

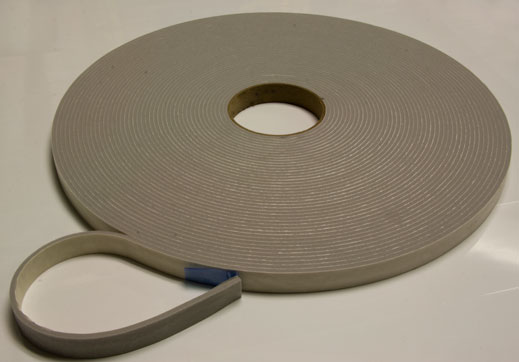

Alzone Isolation Pad SPMFPAD or SPMT3504-18 Foam Tape can be used to provide a gasket and isolation between different metal surfaces.

Clear anodising on this aluminium bracket provides weather resistance and matches finish on Alzone Rail.

100% Anodised

*Australian Compliance Certificate to meet:

TRIMDECK MOUNTING BRACKET
SPMFLTDMBCKT Call us about this item

*Compliance is only offered when used in conjunction with Alzone Racking Systems (Rails, Feet, Clamps e.t.c)

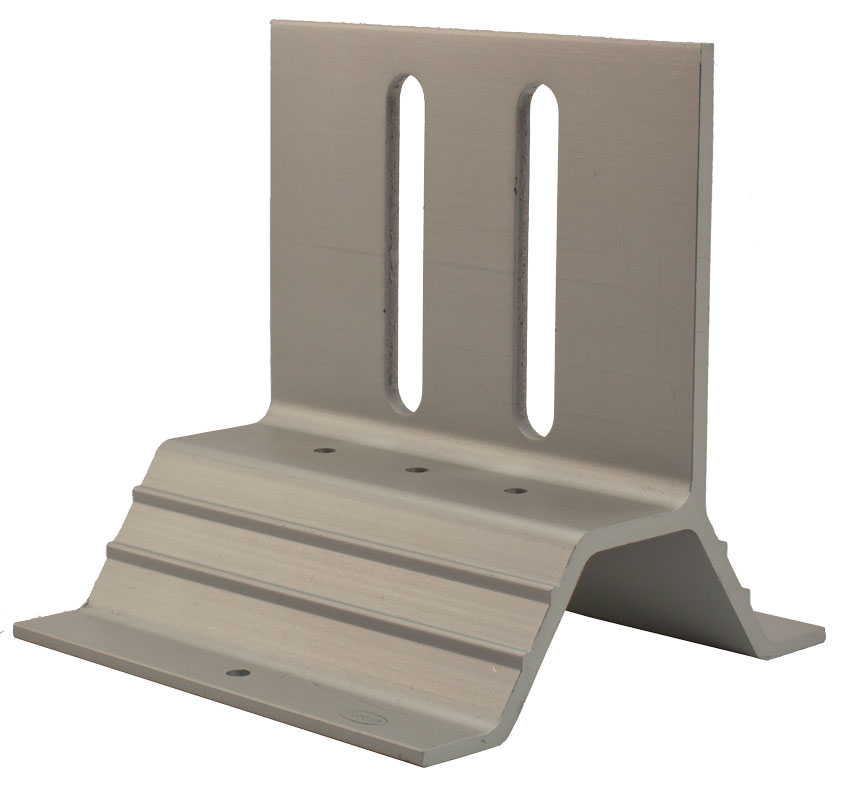

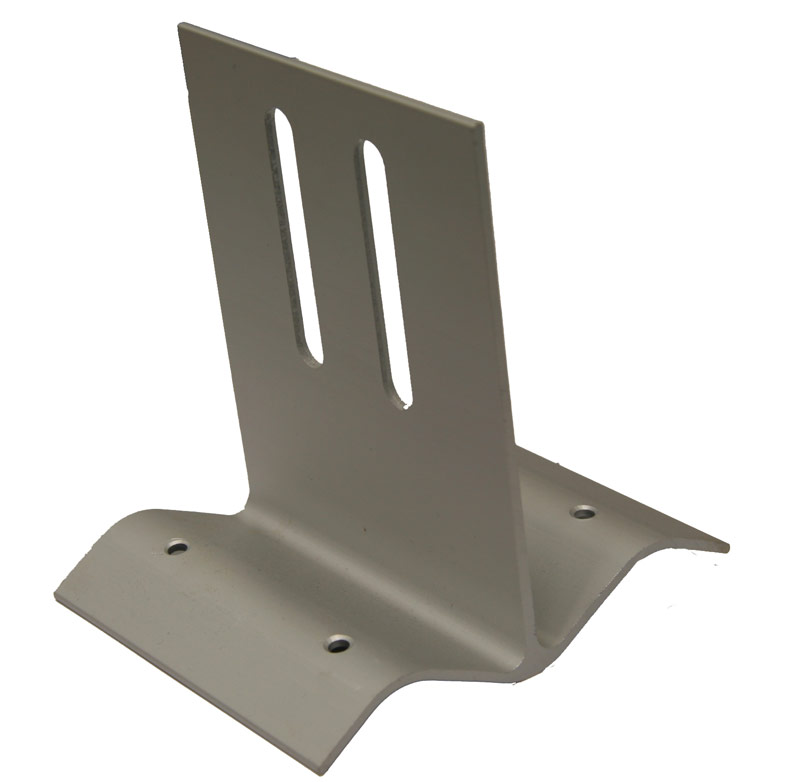

CORRUGATED FOOT

P/No. SPMFC

Alzone Corrugated Feet have been designed to suit installations on standard large profile corrugated roofs.

The vertical slots in feet uprights provide adjustment to the solar array when roofing is uneven.

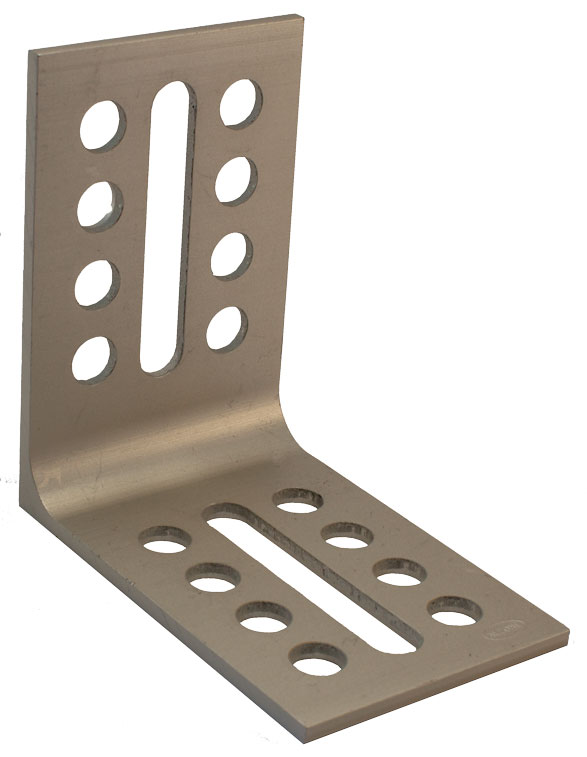

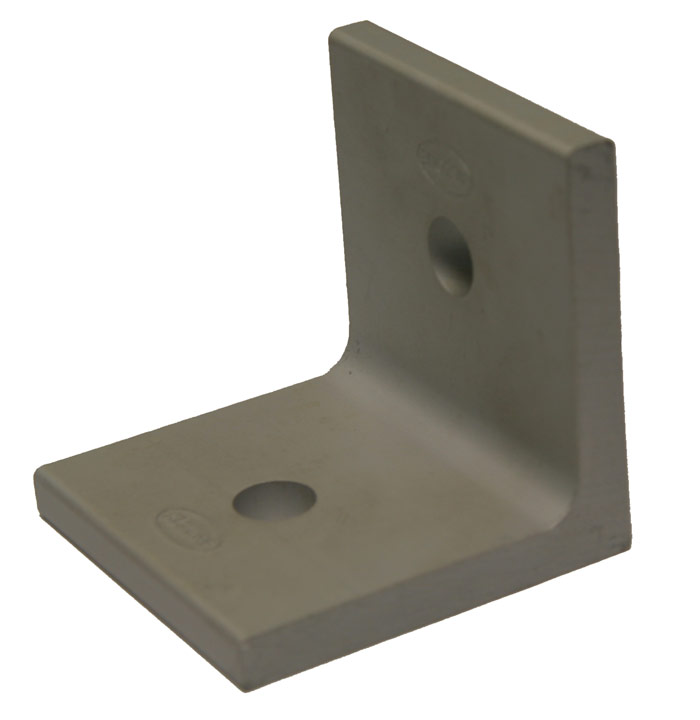

Alzone angle bracket (SPRAFB/SPMLRAB100) can be combined with corrugated feet to change the direction of rail at right angles to corrugations.

This corrugated aluminium foot is finished in durable aluminium anodizing for increased weather resistance.

100% Anodised

*Australian Compliance Certificate to meet:

FOOT CORGATED
SPMFC Call us about this item

*Compliance is only offered when used in conjunction with Alzone Racking Systems (Rails, Feet, Clamps e.t.c)

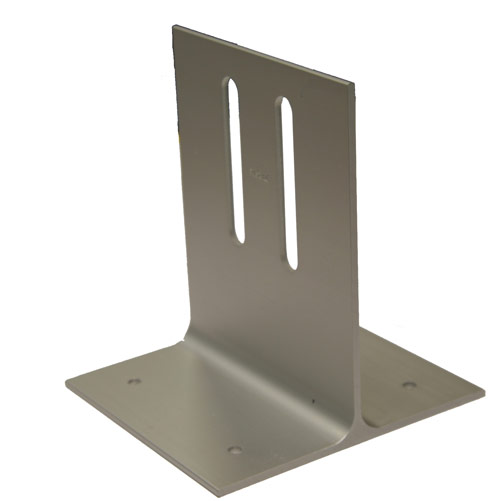

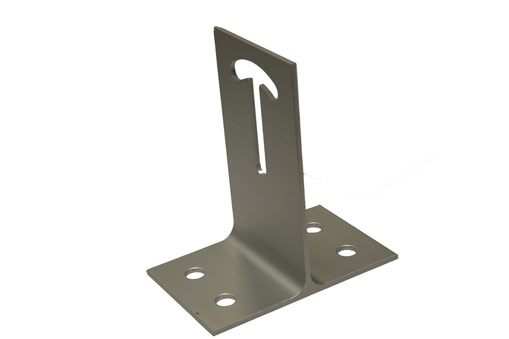

FLAT FOOT

P/No. SPMFF

The Alzone Flat Foot is designed for flat profile roofing such as Corrugated, Trimdek and Cliplock roof sheeting.

These feet provide adjustment to height of rail via vertical slots in the foot upright.

These aluminium feet are finished in weather resistant anodizing for increased durability.

100% Anodised

*Australian Compliance Certificate to meet:

FOOT FLAT
SPMFF Call us about this item

*Compliance is only offered when used in conjunction with Alzone Racking Systems (Rails, Feet, Clamps e.t.c)


TRIMDEK FOOT

P/No. SPMFTD

Alzone Trimdek Feet have been designed to fit over the raised section of Trimdek sheeting.

Vertical slots in the foot upright provides adjustment of rail height as well as provision to use a variety of Alzone brackets to change direction of rail or for attachment of tilted system.

The Trimdeck foot can be fastened though peak of sheeting or in valley if required. Finish on foot is clear anodised aluminium to increase durability during exposure to climate.

Alzone Isolation Pad (SPMFPAD) can be used to provide a gasket and isolation between different metal surfaces.

100% Anodised

*Australian Compliance Certificate to meet:

TRIMDECK FOOT
SPMFTD Call us about this item

*Compliance is only offered when used in conjunction with Alzone Racking Systems (Rails, Feet, Clamps e.t.c)


KLIPLOK FOOT

P/No. SPMFKL

The Alzone Kliplok foot was designed to mount over the ridges of various Kliplok roof profiles.
Attachment is via roofing screws through the peak. Additional provision for screw attachment has been made on the support feet which sit in the valley (these can be used in difficult installations).
Slotted uprights allows solar module main rails to be mounted following the peaks or with addition of Alzone brackets, run at right angles to peaks.
Product is adaptable for raised (tilted) systems using Alzone brackets and legs.
Manufactured using Grade 6106 T6 aluminium and produced in a clear anodized finish the Kliplok foot foot provides a durable weather resistant solution on this type of sheeting.
Alzone isolation tape (SPMT3504-18) is recommended as a gasket isolator for this product.
Dimension W 110 mm x L 110 mm x H 135 mm
P/No SPMFKL
Compliance certificate to be verified 1/12/2010

100% Anodised

*Australian Compliance Certificate to meet:

Kliplok Foot
SPMFKL Call us about this item

*Compliance is only offered when used in conjunction with Alzone Racking Systems (Rails, Feet, Clamps e.t.c)

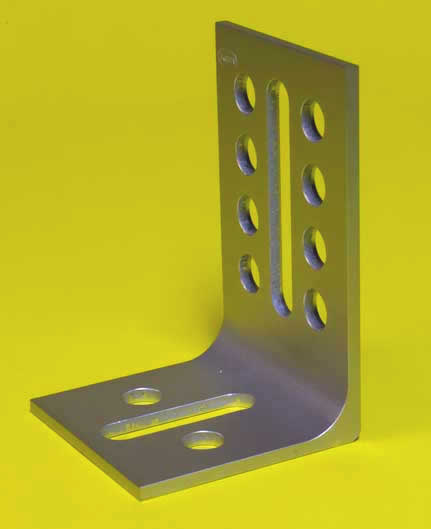

"L" FOOT

The SPMFLBCKTMK2 is an adjustable L-foot component made for the Alzone Cwic Rail Mounting System.

Made of extruded aluminum, these L-feet are strong enough for both residential and commercial solar PV module installations.

The vertical slots make it easy to level the PV array when there are irregularities in the roof.

Dimensions: W 55mm x L 40mm x H 75mm x 8mm Thick


P/No. SPMFLBCKTMK2

100% Anodised

*Australian Compliance Certificate to meet:

FOOT
SPMFLBCKTMK2 Call us about this item

*Compliance is only offered when used in conjunction with Alzone Racking Systems (Rails, Feet, Clamps e.t.c)


HINGE 1

The Alzone Hinge provides a strong method of attachment of Alzone Rail to various mounting brackets. This feature is particularly valuable when doing tilted systems as it allows for various angles. The aluminium hinge is finished in clear anodising for ultimate durability. The securing bolt is corrosion resistant stainless steel. Hinge can also be used for direct attachment to roof or framing structures.

P/No. SPMHINGE1

100% Anodised

*Australian Compliance Certificate to meet:

FOOT
SPMHINGE1 Call us about this item

*Compliance is only offered when used in conjunction with Alzone Racking Systems (Rails, Feet, Clamps e.t.c)

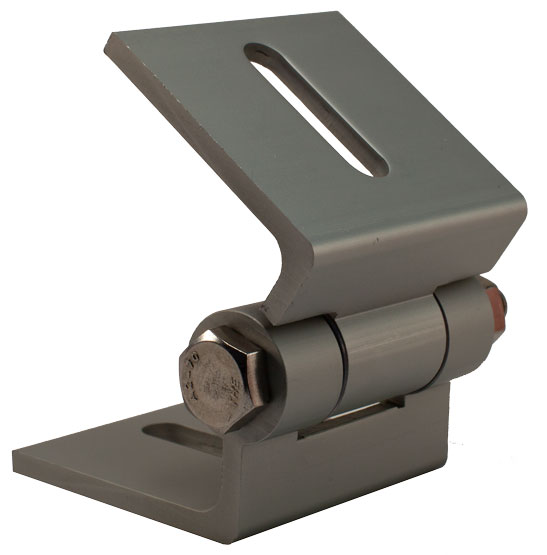

HINGE 2

The Alzone Hinge is a reverse version of Hinge 1 providing a strong method of attachment of Alzone Rail to various mounting brackets. This feature is particularly valuable when doing tilted systems as it allows for various angles. The aluminium hinge is finished in clear anodising for ultimate durability. The securing bolt is corrosion resistant stainless steel. The installer can easily alter the leg position on hinge by removing bolt and spacers prior to reassembly. Hinge can also be used for direct attachment to roof or framing structures


P/No. SPMHINGE1

100% Anodised

*Australian Compliance Certificate to meet:

FOOT
SPMHINGE1 Call us about this item

*Compliance is only offered when used in conjunction with Alzone Racking Systems (Rails, Feet, Clamps e.t.c)


SOLAR RACKING TILE BRACKETS

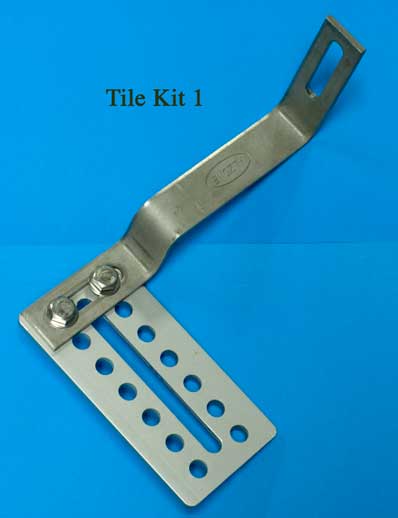

ECO RAIL SOLAR RACKING TILE BRACKET KIT 1

Tile Kit 1

The Alzone Tile kit 1 is used with the Eco Rail Mounting System and consists of an anodised aluminum plate with an attached stainless steel stirrup. Mounting the solar racking tile bracket to the top of the roof rafter can be made via the various slots on the anodised aluminum mounting plate, which facilitates horizontal mounting. The durable grade 304 stainless steel stirrup can be used to mount Alzone non-flanged solar racking. The slotted upright allows adjustment for variation in roof conformity. The incorporated rail stirrup is designed to fit between the lower and upper tile.

NOTE: Some grinding on tiles may be required to minimize the gap between upper and lower tiles.
Comes with Grade 304 stainless steel bolts.

P/N SPMTILEKIT1

Wind Zones A,B,C,D

*Australian Compliance Certificate to meet:

ECO Rail Tile Bracket Kit 1
SPMTILEKIT1 Call us about this item

*Compliance is only offered when used in conjunction with Alzone Racking Systems (Rails, Feet, Clamps e.t.c)


ECO RAIL SOLAR RACKING TILE BRACKET KIT 2

Tile Kit 2

The Alzone Tile kit 2 is used with the Eco Rail Mounting System and gives you the option of mounting to the side of the rafter.
Consisting of an anodised aluminum rafter angle bracket, which mounts to the side of the rafter and a stainless steel stirrup. With a variety of different tiles it allows height adjustment of the stirrup, along with a stronger mount to the rafter.
Comes with Grade 304 stainless steel bolts

NOTE: Some grinding on tiles may be required to minimize the gap between upper and lower tiles.
Comes with Grade 304 stainless steel bolts.

P/N SPMTILEKIT2

Wind Zones A,B,C,D

*Australian Compliance Certificate to meet:

ECO Rail Tile Bracket kit 2
SPMTILEKIT2 Call us about this item

*Compliance is only offered when used in conjunction with Alzone Racking Systems (Rails, Feet, Clamps e.t.c)

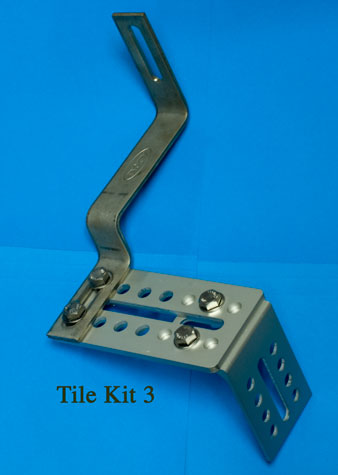

ECO RAIL SOLAR RACKING TILE BRACKET KIT 3

Tile Kit 3

The Alzone Tile kit 3 is used with the Eco Rail Mounting System and consists of a rafter angle bracket, tile extension plate and stainless steel stirrup. This gives you the option of mounting either to the top or the side of the rafter. Alternatively should you have some difficult tile spacings, you can use the rafter angle bracket to mount to either side of the rafter and the extension plate to give you the ability to make adjustments either left or right.
Comes with Grade 304 stainless steel bolts.

NOTE: Some grinding on tiles may be required to minimize the gap between upper and lower tiles.
Comes with Grade 304 stainless steel bolts.

P/N SPMTILEKIT3

Wind Zones A,B,C,D

*Australian Compliance Certificate to meet:

ECO Rail Tile Bracket Kit 3
SPMTILEKIT3 Call us about this item

*Compliance is only offered when used in conjunction with Alzone Racking Systems (Rails, Feet, Clamps e.t.c)

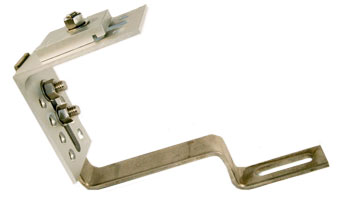

CWIC RAIL SOLAR RACKING TILE BRACKET KIT 1

Tile Kit 1

The Alzone Cwic Rail Tile Kit 1 is a Stainless Steel Stirrup (SPMTFBSTIRRUP) with an attached Anodised Aluminum Angle Bracket (SPMLRAB100) and rail clamp (SPMCLAMP) to secure rail to top of Angle Bracket. (SPMLRAB100)

Mounting the solar racking tile bracket to the top of the roof rafter can be made via the slots on the stainless steel stirrup. (SPMTFBSTIRRUP)

Designed for systems where panels are in portrait and rails are parallel to gutter.

The durable grade 304 stainless steel stirrup can be used to mount Alzone Cwic Rail Solar Racking.

The slotted upright allows adjustment for variation in roof conformity. The incorporated rail stirrup is designed to fit between the lower and upper tile.

NOTE: Some grinding on tiles may be required to minimize the gap between upper and lower tiles.
Comes with Grade 304 stainless steel bolts.

P/N SPMTKCWIC1

Wind Zones A,B,C,D

*Australian Compliance Certificate to meet:

CWIC Rail Tile Bracket Kit 1
SPMTKCWIC1 Call us about this item

*Compliance is only offered when used in conjunction with Alzone Racking Systems (Rails, Feet, Clamps e.t.c)

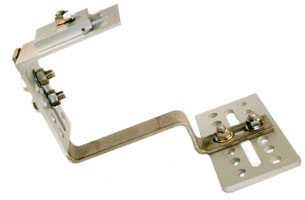

CWIC RAIL SOLAR RACKING TILE BRACKET KIT 2

Tile Kit 2

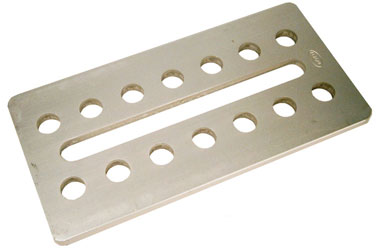

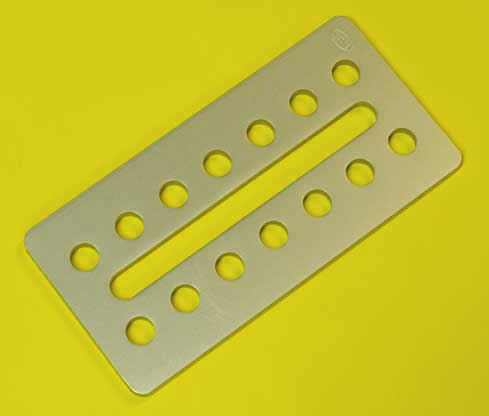

The Alzone Cwic Rail Tile Kit 2 is an Anodised Aluminum Plate (SPMTSXB) with an attached Stainless Steel Stirrup, (SPMTFBSTIRRUP) Aluminum Angle Bracket (SPMLRAB100) and Rail Clamp (SPMCLAMP) to secure rail to top of Angle Bracket. (SPMLRAB100)

Mounting the solar racking tile bracket to the top of the roof rafter can be made via the pre-drilled holes on the Anodised Aluminum Plate. (SPMTSXB)

Designed for systems where panels are in portrait and rails are parallel to gutter.

The durable grade 304 stainless steel stirrup can be used to mount Alzone Cwic Rail Solar Racking.

The slotted upright allows adjustment for variation in roof conformity. The incorporated rail stirrup is designed to fit between the lower and upper tile.

NOTE: Some grinding on tiles may be required to minimize the gap between upper and lower tiles.
Comes with Grade 304 stainless steel bolts.

P/N SPMTKCWIC2

Wind Zones A,B,C,D

*Australian Compliance Certificate to meet:

CWIC Rail Tile Bracket Kit 2
SPMTKCWIC2 Call us about this item

*Compliance is only offered when used in conjunction with Alzone Racking Systems (Rails, Feet, Clamps e.t.c)

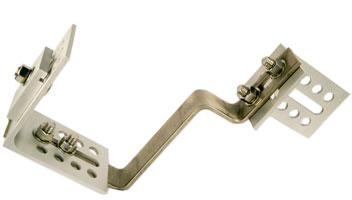

CWIC RAIL SOLAR RACKING TILE BRACKET KIT 3

Tile Kit 3

The Alzone Cwic Rail Tile Kit 3 is an Anodised Angle Bracket (SPMRAFB) with an attached Stainless Steel Stirrup (SPMTFBSTIRRUP), Aluminum Angle Bracket (SPMLRAB100) and Rail Clamp (SPMCLAMP) to secure rail to top of Angle Bracket. (SPMLRAB100)

Mounting the solar racking tile bracket to the top of the roof rafter can be made via the pre-drilled holes on the Anodised Aluminum Angle Bracket. (SPMRAFB)

Designed for systems where panels are in portrait and rails are parallel to gutter.

The durable grade 304 stainless steel stirrup can be used to mount Alzone Cwic Rail Solar Racking.

The slotted upright allows adjustment for variation in roof conformity. The incorporated rail stirrup is designed to fit between the lower and upper tile.

NOTE: Some grinding on tiles may be required to minimize the gap between upper and lower tiles.
Comes with Grade 304 stainless steel bolts.

P/N SPMTKCWIC3

Wind Zones A,B,C,D

*Australian Compliance Certificate to meet:

CWIC Rail Tile Bracket Kit 3
SPMTKCWIC3 Call us about this item

*Compliance is only offered when used in conjunction with Alzone Racking Systems (Rails, Feet, Clamps e.t.c)

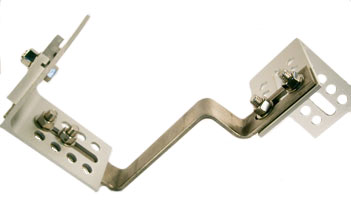

CWIC RAIL SOLAR RACKING TILE BRACKET KIT 4

Tile Kit 4

The Alzone Cwic Rail Tile Kit 4 is an Anodised Angle Bracket (SPMLRAB100) with an attached Stainless Steel Stirrup (SPMTFBSTIRRUP), Aluminum Angle Bracket (SPMLRAB100) and Rail Clamp (SPMCLAMP) to secure rail to top of Angle Bracket. (SPMLRAB100)

Mounting the solar racking tile bracket to the top of the roof rafter can be made via the pre-drilled holes on the Anodised Aluminum Angle Bracket. (SPMLRAB100)

Designed for systems where panels are in portrait and rails are parallel to gutter.

The durable grade 304 stainless steel stirrup can be used to mount Alzone Cwic Rail Solar Racking.

The slotted upright allows adjustment for variation in roof conformity. The incorporated rail stirrup is designed to fit between the lower and upper tile.

NOTE: Some grinding on tiles may be required to minimize the gap between upper and lower tiles.
Comes with Grade 304 stainless steel bolts.

P/N SPMTKCWIC4

Wind Zones A,B,C,D

*Australian Compliance Certificate to meet:

CWIC Rail Tile Bracket Kit 4
SPMTKCWIC4 Call us about this item

*Compliance is only offered when used in conjunction with Alzone Racking Systems (Rails, Feet, Clamps e.t.c)

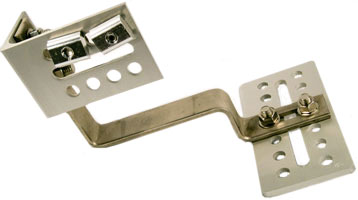

CWIC RAIL SOLAR RACKING TILE BRACKET KIT 5

Tile Kit 5

he Alzone Cwic Rail Tile Kit 5 is an Anodised Aluminum Plate (SPMTSXB) with an attached Stainless Steel Stirrup (SPMTFBSTIRRUP), Aluminum Angle Bracket (SPMRAFB) and Cwic Rail Socket Head Cap Screws (SPMSHCS8X16 + SPMW8X24 + SPMCRC) to secure rail to Angle Bracket. (SPMRAFB)

Mounting the solar racking tile bracket to the top of the roof rafter can be made via the pre-drilled holes on the Anodised Aluminum Plate. (SPMTSXB)

Designed for systems where panels are in landscape and rails are running up the roof from gutter to roof ridge.

The durable grade 304 stainless steel stirrup can be used to mount Alzone Cwic Rail Solar Racking.

The slotted upright allows adjustment for variation in roof conformity. The incorporated rail stirrup is designed to fit between the lower and upper tile.

NOTE: Some grinding on tiles may be required to minimize the gap between upper and lower tiles.
Comes with Grade 304 stainless steel bolts.

P/N SPMTKCWIC5

Wind Zones A,B,C,D

*Australian Compliance Certificate to meet:

CWIC Rail Tile Bracket Kit 5
SPMTKCWIC5 Call us about this item

*Compliance is only offered when used in conjunction with Alzone Racking Systems (Rails, Feet, Clamps e.t.c)


CWIC RAIL SOLAR RACKING TILE BRACKET KIT 6

Tile Kit 6

The Alzone Cwic Rail Tile Kit 6 is an Anodised Angle Bracket (SPMRAFB) with an attached Aluminium Plate (SPMTSXB) Stainless Steel Stirrup (SPMTFBSTIRRUP), Aluminum Angle Bracket (SPMLRAFB) and Cwic Rail Socket Head Cap Screws (SPMSHCS8X16 + SPMW8X24 + SPMCRC) to secure rail to Angle Bracket. (SPMRAFB)

Mounting the solar racking tile bracket to the top of the roof rafter can be made via the pre-drilled holes on the Anodised Aluminum Angle Bracket. (SPMRAFB)

Designed for systems where panels are in landscape and rails are running up the roof from gutter to roof ridge.

The durable grade 304 stainless steel stirrup can be used to mount Alzone Cwic Rail Solar Racking.

The slotted upright allows adjustment for variation in roof conformity. The incorporated rail stirrup is designed to fit between the lower and upper tile.

NOTE: Some grinding on tiles may be required to minimize the gap between upper and lower tiles.
Comes with Grade 304 stainless steel bolts.

P/N SPMTKCWIC6

Wind Zones A,B,C,D

*Australian Compliance Certificate to meet:

CWIC Rail Tile Bracket Kit 6
SPMTKCWIC6 Call us about this item

*Compliance is only offered when used in conjunction with Alzone Racking Systems (Rails, Feet, Clamps e.t.c)




CWIC RAIL SOLAR RACKING TILE BRACKET KIT 7

Tile Kit 7

The Alzone Cwic Rail Tile Kit 7 is an Anodised Angle Bracket (SPMLRAB100) with an attached Aluminium Plate (SPMTSXB) Stainless Steel Stirrup (SPMTFBSTIRRUP), Aluminum Angle Bracket (SPMLRAFB) and Cwic Rail Socket Head Cap Screws (SPMSHCS8X16 + SPMW8X24 + SPMCRC) to secure rail to Angle Bracket. (SPMLRAB100)

Mounting the solar racking tile bracket to the top of the roof rafter can be made via the pre-drilled holes on the Anodised Aluminum Angle Bracket. (SPMLRAB100)

Designed for systems where panels are in landscape and rails are running up the roof from gutter to roof ridge.

The durable grade 304 stainless steel stirrup can be used to mount Alzone Cwic Rail Solar Racking.

The slotted upright allows adjustment for variation in roof conformity. The incorporated rail stirrup is designed to fit between the lower and upper tile.

NOTE: Some grinding on tiles may be required to minimize the gap between upper and lower tiles.
Comes with Grade 304 stainless steel bolts.

P/N SPMTKCWIC7

Wind Zones A,B,C,D

*Australian Compliance Certificate to meet:

CWIC Rail Tile Bracket Kit 7
SPMTKCWIC7 Call us about this item

*Compliance is only offered when used in conjunction with Alzone Racking Systems (Rails, Feet, Clamps e.t.c)


CWIC RAIL SOLAR RACKING TILE BRACKET KIT 8

Tile Kit 8

The Alzone Cwic Rail Tile Kit 8 is an Anodised Angle Bracket (SPMRAFB) with an attached Aluminium Plate (SPMTSXB) Stainless Steel Stirrup (SPMTFBSTIRRUP), Aluminum Angle Bracket (SPMLRAFB) and Rail Clamp (SPMCLAMP) to secure rail to top of Angle Bracket. (SPMLRAB100)

Mounting the solar racking tile bracket to the top of the roof rafter can be made via the pre-drilled holes on the Anodised Aluminum Angle Bracket. (SPMRAFB)

Designed for systems where panels are in portrait and rails are parallel to gutter.

The durable grade 304 stainless steel stirrup can be used to mount Alzone Cwic Rail Solar Racking.

The slotted upright allows adjustment for variation in roof conformity. The incorporated rail stirrup is designed to fit between the lower and upper tile.

NOTE: Some grinding on tiles may be required to minimize the gap between upper and lower tiles.
Comes with Grade 304 stainless steel bolts.

P/N SPMTKCWIC8

Wind Zones A,B,C,D

*Australian Compliance Certificate to meet:

CWIC Rail Tile Bracket Kit 8
SPMTKCWIC8 Call us about this item

*Compliance is only offered when used in conjunction with Alzone Racking Systems (Rails, Feet, Clamps e.t.c)


CWIC RAIL SOLAR RACKING TILE BRACKET KIT 9

Tile Kit 9

The Alzone Cwic Rail Tile Kit 9 is an Anodised Angle Bracket (SPMLRAB100) with an attached Aluminium Plate (SPMTSXB) Stainless Steel Stirrup (SPMTFBSTIRRUP), Aluminum Angle Bracket (SPMLRAFB) and Rail Clamp (SPMCLAMP) to secure rail to top of Angle Bracket. (SPMLRAB100)

Mounting the solar racking tile bracket to the top of the roof rafter can be made via the pre-drilled holes on the Anodised Aluminum Angle Bracket. (SPMLRAB100)

Designed for systems where panels are in portrait and rails are parallel to gutter.

The durable grade 304 stainless steel stirrup can be used to mount Alzone Cwic Rail Solar Racking.

The slotted upright allows adjustment for variation in roof conformity. The incorporated rail stirrup is designed to fit between the lower and upper tile.

NOTE: Some grinding on tiles may be required to minimize the gap between upper and lower tiles.
Comes with Grade 304 stainless steel bolts.

P/N SPMTKCWIC9

Wind Zones A,B,C,D

*Australian Compliance Certificate to meet:

CWIC Rail Tile Bracket Kit 9
SPMTKCWIC9 Call us about this item

*Compliance is only offered when used in conjunction with Alzone Racking Systems (Rails, Feet, Clamps e.t.c)

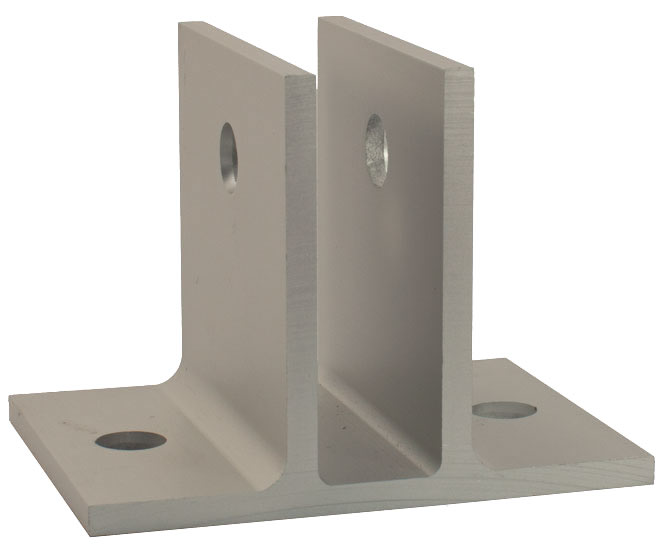

GROUND MOUNT FOOT

This Foot bracket is designed to attach ground mount main rails and rear legs to ground mount footings. The main rail and rear legs can be swung in an arc 180 degrees to the horizontal plane allowing for a convenient connection to the desired position. Other uses include fixing rail to difficult roof or wall framing. This product is anodised for increased weather protection.
Size 100 x 75 x 75 wide x 5mm thick.

100% Anodised




P/No. SPMGMBB

GROUND MOUNT FOOT
SPMGMBB Call us about this item

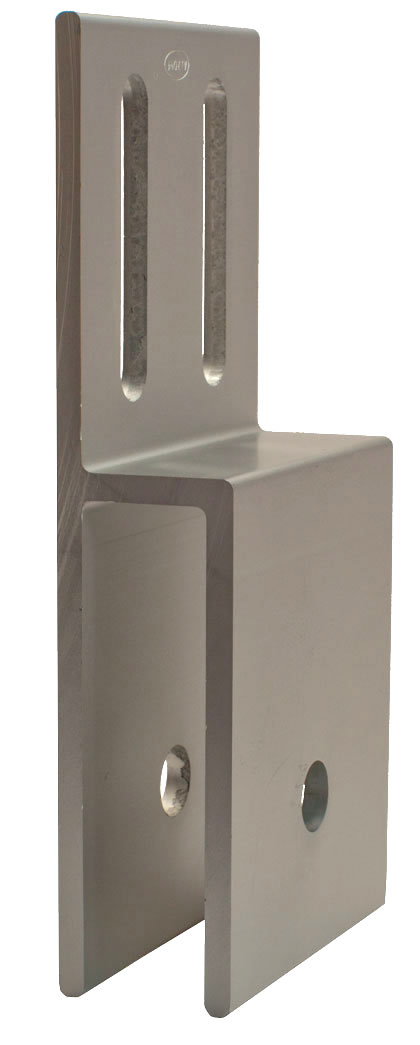

LEG ATTACHMENT - GROUND MOUNT

The Alzone Ground Mount Leg Attachment is designed to attach the Ground Mount Main Rail to Ground Mount Leg Rail. This product allows easy attachment to the main rail and ability to swing leg to the desired angle and attachment points. Finished in clear anodising for increased corrosion resistance.

100% Anodised


P/No. SPMGMLTJ

LEG ATTACHMENT
SPMGMLTJ Call us about this item

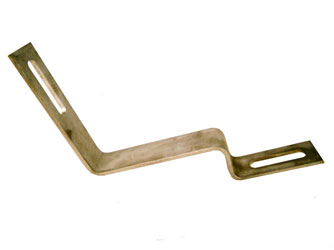

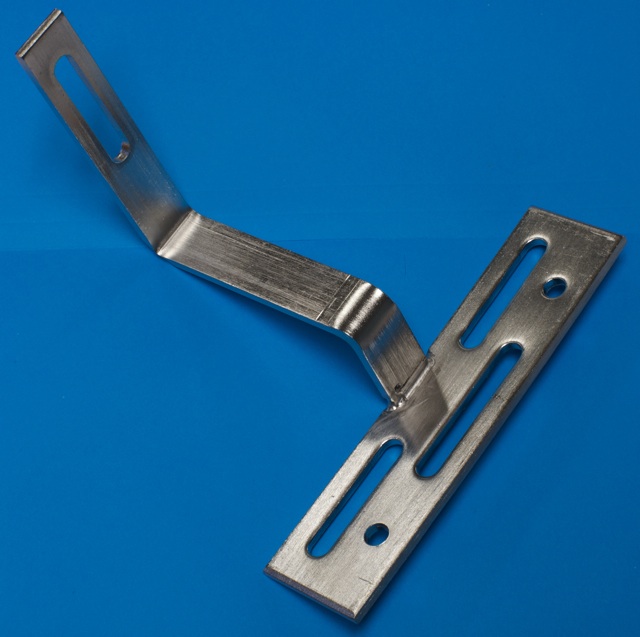

Solar Tile Stirrup

The Alzone Tile stirrup is manufactured from durable grade 304 stainless steel. This tile stirrup allows the Alzone non flange rail to be effectively attached directly to the top of of the rafter on tiled roofs, via the Alzone tile stirrup extension bracket or tile rafter angle bracket. When used with a combination of either or both of these brackets it provides a strong and more adjustable system than alternative brands of stirrup brackets at an economical price.

SPMTFBSTIRRUP

Wind Zones A,B,C,D

• AS/NZS 1170.0 - Structural design actions: General principals
• AS/NZS 1170.1 - Structural design actions: Permanent and other actions
• AS/NZS 1170.2 - Structural design actions: Wind actions
• AS/NZS 1664.1 - Aluminium structures: Limit state design
• AS 1720.1 - Timber structures

Solar Tile Stirrup
SPMTFBSTIRRUP Call us about this item




Solar Tile Rafter Angle Bracket

The rafter angle bracket is attached on either side of the timber rafter for maximum strength when mounting the Alzone stainless tile stirrup. This angle bracket allows the adjustment of the stainless stirrup at various heights. Additional attachment of the Alzone tile stirrup extension bracket enables the stirrup to be moved out from either side of the roof rafter in various locations.
Other uses of this 4 mm thick anodized aluminium angle bracket is for joining rail legs to the solar main rail or to attach Alzone non flange rail onto Alzone flat or corrugated feet.
Directly attaching the angle bracket to the metal roof sheeting and into the purling or batten can provide an easy attachment of Alzone non flange rail to the roof whilst allowing adjustment for roof variations.

100% Anodised

Compliance Certificate

SPMRAFB

Solar Tile Rafter Angle Bracket
SPMRAFB Call us about this item

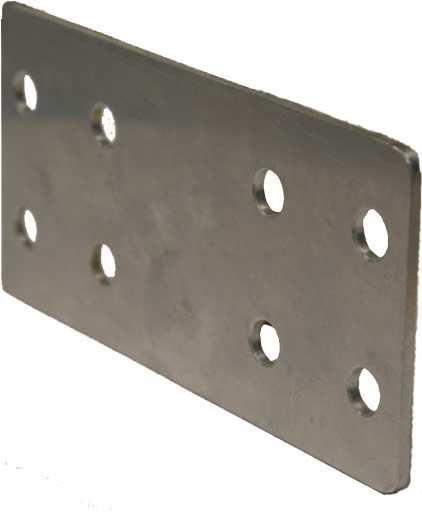

Solar Tile Stirrup Extension Bracket

This durable extension plate is manufactured from 8mm aluminium with a durable anodized finish.
This extension bracket can be used for a number of purposes. Attached to the top of timber rafters on tiled roofs it allows the Alzone tile stirrup to be attached in various positions to either side of the rafter. Alternatively it may be used as a heavy duty joining plate to connect Alzone non flange rail or to act as an extension when attaching the Alzone tile stirrup in various positions onto the Alzone rafter angle bracket.

100% Anodised



Compliance Certificate

SPMTSXB



Solar Tile Stirrup Extension Bracket
SPMTSXB Call us about this item


SPMLRAB100

The 100 x 100 rafter angle bracket is attached on either side of the timber rafter for maximum strength when mounting the Alzone stainless tile stirrup. This angle bracket allows the adjustment of the stainless stirrup at various heights. Additional attachment of the Alzone tile stirrup extension bracket enables the stirrup to be moved out from either side of the roof rafter in various locations.
Other uses of this 4 mm thick anodized aluminium angle bracket is for joining rail legs to the solar main rail or to attach Alzone non flange rail onto Alzone flat or corrugated feet.
Directly attaching the angle bracket to the metal roof sheeting and into the purling or batten can provide an easy attachment of Alzone non flange rail to the roof whilst allowing adjustment for roof variations.



Compliance Certificate

100% Anodised

SPMLRAB100

Solar Tile Rafter Angle Bracket
SPMLRAB100 Call us about this item


Tee Foot


The Alzone Tee Foot is designed to provide raised profile (up to 35 degrees above existing roof angle) on roof mounted solar arrays. It is usually used when the array is in landscape position with modules in portrait. The Tee foot can provide a convenient pre drilled foot for special mounting requirements on rail or special structures.
The aluminium foot with protective anodized coating provides a solution for difficult installations.

100% Anodised

Compliance Certificate





FOOT TEE
SPMFTEE Call us about this item

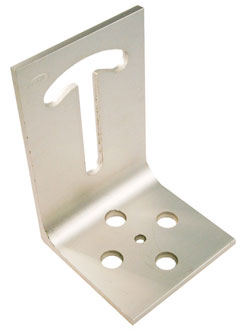

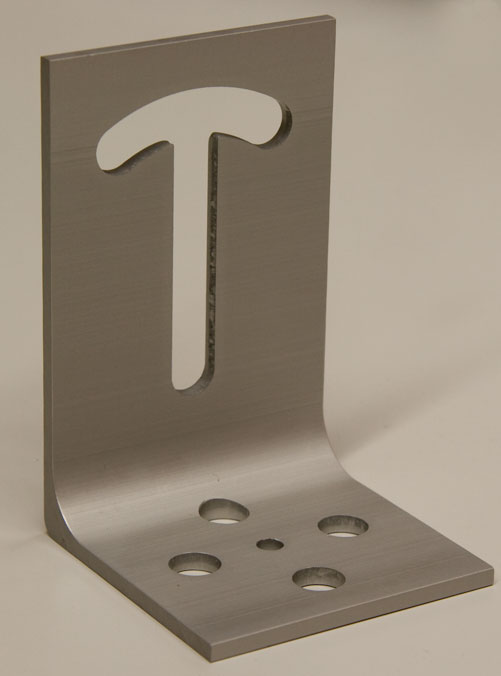

Angle Brackets

Angle/Foot
P/No. SPMFTEEANGLE

The specially designed angle bracket can be used for a variety of applications.

This angle bracket allows directional rotation of Alzone rail on the SPMFCMTGBCKT corrugated foot mounting bracket as well as a right angle change of direction of Alzone rail on SPMFCBUY corrugated feet.

These angle brackets can be used on raised racking to allow up to 35 degree tilt on rail or rear legs.

Other applications on custom systems Make this anodized aluminium bracket a valuable accessory to many applications.
Dimensions W 65mm x H 100mm x D 65mm x 5mm

100% Anodised

Compliance Certificate







Tee Angle
SPMFTEEANGLE Call us about this item

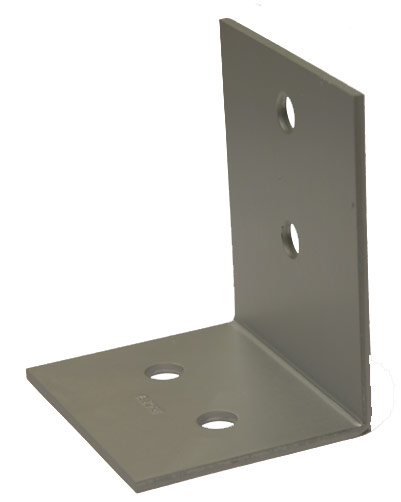

Solar Racking Angles


This Alzone aluminium angle bracket conveniently changes the direction of Alzone rail on corrugated feet by 90 degrees. The modules can be mounted in portrait mode whilst the rail runs in landscape position (90 degrees to corrugations).
This bracket is finish in a clear anodized coating for improved weather resistance and matches other Alzone racking parts. All holes are pre drilled at 10mm
Size:-88mm x 64mm x 76mm wide x 3mm thick

100% Anodised

Compliance Certificate

SPMANGLE





Angle Brackets
SPMANGLE Call us about this item


SPMFA10

This heavy duty aluminium angle bracket is primarily used as mounting feet on ground mount racking in high (cyclonic) wind zones. Other uses for this tough clear anodized bracket are for mounting Alzone rail to difficult roof, wall or custom framing.
The two holes are pre drilled at 12.5mm for convenient on site installation.
Size :- 75mm x 75mm x 75mm wide x 10mm thick

100% Anodised

Compliance Certificate




Angle Brackets
SPMFA10 Call us about this item


SPMFA6

The medium duty aluminium angle foot is mostly used as mounting feet on ground mount installations in lower wind zones ( A, B & C ). It is a useful addition for difficult roof or wall installations and mounting alzone rail to customised solar frames.
Finish is in durable clear anodizing for enhanced weather resistance.
Both holes are pre drilled at 12.5mm
Size:-75mm x 75mm x 75mm wide x 5mm thick

100% Anodised

Compliance Certificate



Angle Brackets
SPMFA6 Call us about this item




SPMGMAB





SPMGMAB Call us about this item










Joiners

Rail Joiner
P/No. SPMRJOINER

The 3mm anodised joining plate allows a quick convenient method of joining Alzone standard rails together to create longer sections.
The weather resistant finish and pre-drilled holes reduce installation time and leaves a quality finish to your solar racking installation.
Dimension 155mm L x 75mm H x 3mm W

100% Anodised

Compliance Certificate

Rail Joiner
SPMJOINER Call us about this item

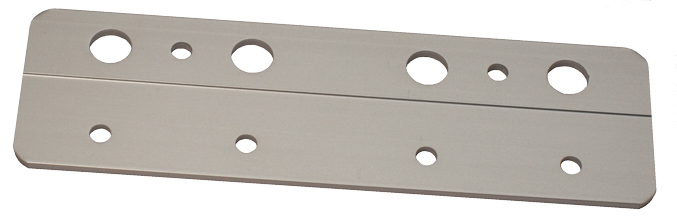

Eco Rail Easy Rail Joiner

This versatile Alzone joiner allows two lengths of rail to be connected to form one length. The Eco Rail is secured using two alzone stainless bolts per rail. There are pre-punched holes to make mounting easier. When the joiner is used with Alzone Easy-Rail the raised section on the joiner provides convenient alignment with rail. Pre-punched holes, conveniently spaced allow easy securing using self drilling screws.
The T6 grade aluminium joiner comes in a clear anodised finish to provide a matching finish to the Alzone rail and brackets.

100% Anodised





Compliance Certificate

SPMEJOIN

Eco Rail Easy Rail Joiner
SPMEJOIN Call us about this item







Clamps

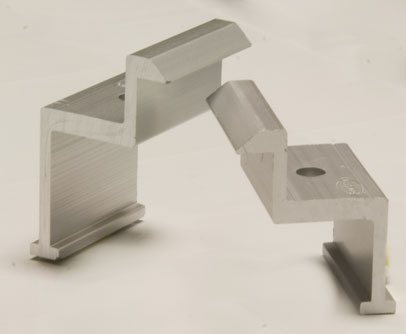

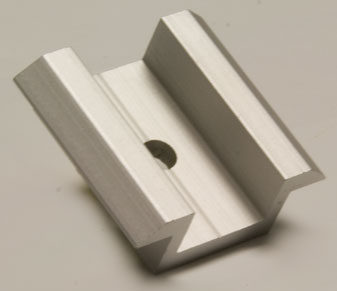

End Clamps
The Alzone end clamps are designed to securely mount solar modules at both ends of Alzone rail sections .There are a number of sizes available to suit most solar modules.
End clamps are pre drilled with grooves on the underside of clamps for advanced grip.
There is no drilling and clamps can be finger tightened on initial installation reducing risk to your valuable modules.
Clamps are manufactured from aluminium and come complete with a weather resistant anodized finish.

100% Anodised

Compliance Certificate

END CLAMPS
SPME-32 Call us about this item
SPME-36 Call us about this item
SPME-46 Call us about this item
SPME-50 Call us about this item
SPME-39 Call us about this item
SPME-34 Call us about this item
SPME-42 Call us about this item
RAIL BOLTS
SPMBSHOE50 Call us about this item
SPMBSHOE60 Call us about this item







Mid Clamps
Alzone middle mounts are suitable for joining adjacent solar modules together on Alzone rail. Grooves on the underside of the clamps allow a secure grip to modules without the need to drill or damage panels.  Clamps are constructed from aluminium which is finished in an anodized weather resistant coating. They provide a fast efficient manner of attachment to Alzone rail.

100% Anodised

Compliance Certificate



MID CLAMPS
SPM1 Call us about this item
SPM2 Call us about this item
RAIL BOLTS
SPMBSHOE50 Call us about this item
SPMBSHOE60 Call us about this item

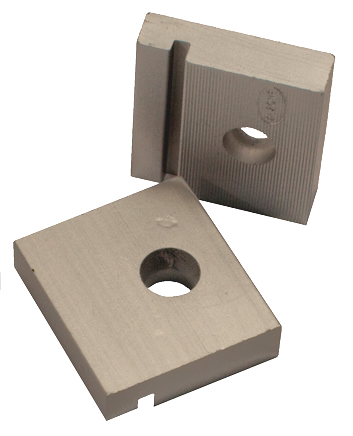

Eco Rail Clamp



The Alzone Eco Rail clamp has been designed and engineer approved to attach the Alzone Eco Rail to the Alzone corrugated foot mounting bracket or Trimdek foot.
The clamp features a recess to fit over the lower part of the rail and attaches to the foot base using a single nut, bolt & washer.
Serrations on the base allow additional grip to the mounting surface. The pre punched centre hole allows the Eco Rail rail to be rotated 360 degrees on the base.
The clamp is manufactured from T6 alloy and has a clear anodised finish for greater weather resistance and corresponds with finish on other Alzone products.

100% Anodised

Compliance Certificate

SPMCLAMP

Eco Rail Clamp
SPMCLAMP Call us about this item







Bolts

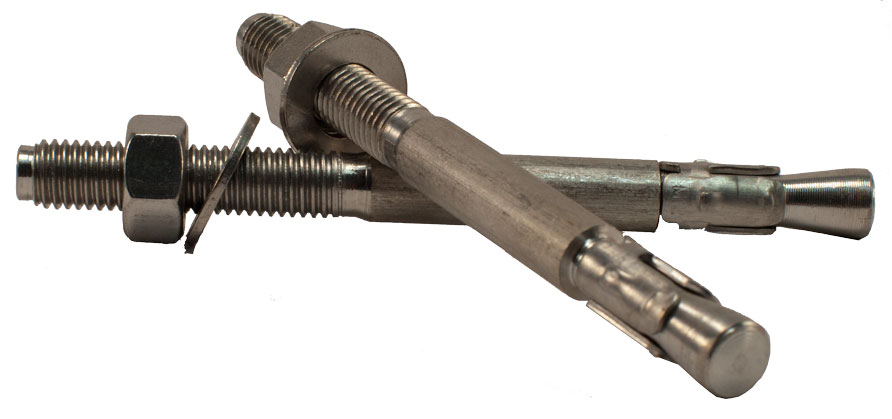

Nut and Bolts

SPMB racking bolts are manufactured from quality grade 304 stainless steel.Each bolt comes complete with a nut and flat washer with spares available on request.The head of the 3/8 bolt is designed to fit into channels of all the Alzone racking ensuring ease of connection to feet and other Alzone brackets.

The larger M12 x 50mm bolt is supplied complete with nut and flat washer and is mostly used as a through bolt for Alzone ground mount systems.M6 x 50mm and M6 x 60mm are used for solar clamp brackets in combination with a specially designed rail shoe which fits into the Alzone rail channel.

Dimension 3/8 x 1", 3/8 x 1 3/4
M12 x50mm
M6 x 50,M6 x 60



Nut and Bolts
SPMB3825 Call us about this item
SPMB3845 Call us about this item
SPMB1250 Call us about this item

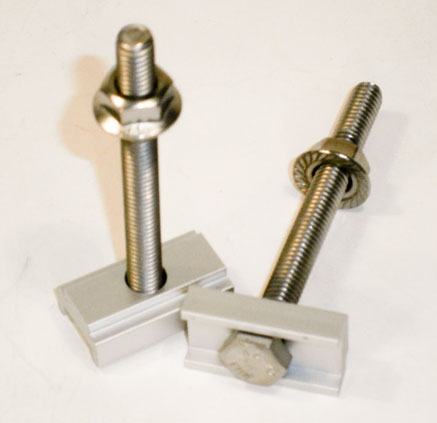

Rail Bolts
Alzone rail bolts are a convenient way to attach middle and end clamps to Standard and Easy-Rail. The durable stainless steel rail bolts provide ease of installation of solar modules via the special stainless steel rail shoe and serrated securing nut.

Compliance Certificate



RAIL BOLTS
SPMBARS50 Call us about this item
SPMBARS60 Call us about this item

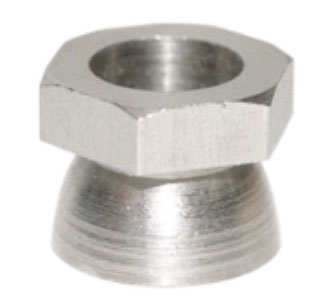

Shear Nut

Shear Nut

Stainless steel shear nuts ensure additional security to the fastening of valuable solar modules.

The nut is tightened until the hex nut shears leaving behind a small and difficult to remove cone shaped nut to secure the solar module clamp brackets.

Dimension 6mm



SHEAR NUT
SPMSNUT6MM Call us about this item



Pads

Pads

The closed cell foam pads provide a convenient and economical solution to mechanical separation of dissimilar metals while ensuring a seal against air and moisture.

The pad is resistant to U. V. and fungi while creating an alternative to use of sealants and caulking agents.

An adhesive surface on one side with peal off backing allows a convenient method of attachment to Alzone corrugated or flat feet.

Dimension W 140 x L115 x T 3mm



PADS
SPMFPAD Call us about this item









Tape

SPMT3504-18

This closed cell foam tape can be applied easily to the base of the SPMRA Easy-Rail providing mechanical separation to dissimilar metals and a seal against air and moisture.

The adhesive surface on one side with peal off backing allows faster installation time and reduces the need for sealant or caulking compounds.

Dimension W 18mm x 30M







Tapes
SPMT3504-18 Call us about this item
