Fluorescent, Halogen, Xelogen, HID, Xenon Lighting

This section includes All Fluorescent, Halogen, Xelogen, HID and Xenon Lighting to suit Marine Lighting, Caravan & Motor-Home Lighting, House Lighting, and Work Lights.

Fluoro Lighting: A fluorescent lamp or a fluorescent tube is a low pressure mercury vapour gas discharge lamp that uses fluorescence to produce visible light. An electric current in the gas excites mercury vapour which produces short-wave ultraviolet light that then causes a phosphor coating on the inside of the bulb to glow. The luminous efficacy of a fluorescent light bulb can exceed 100 lumens per watt, several times the efficacy of an incandescent bulb with comparable light output.

Halogen Lighting: A halogen lamp, also known as a tungsten halogen, quartz-halogen or quartz iodine lamp, is an incandescent lamp that has a small amount of a halogen such as iodine or bromine added. The combination of the halogen gas and the tungsten filament produces a halogen cycle chemical reaction which redeposit's evaporated tungsten back onto the filament, increasing its life and maintaining the clarity of the envelope.

Xelogen Lighting: Xelogen lamps are an energy efficient, safe alternative to traditional halogen fixtures. These light fixtures produce a beautiful source of long lasting illumination that can last up to 20,000 hours! Halogen lamps can be a hassle to install, especially since you cannot touch them with your bare hands. Doing so, will decrease the amount of hours the bulb is able to produce quality light. However, xelogen bulbs can be handled with your bare hands and have no effect on the lamp’s output.

HID Lighting: High-intensity discharge lamps (HID lamps) are a type of electrical gas-discharge lamp which produces light by means of an electric arc between tungsten electrodes housed inside a translucent or transparent fused quartz or fused alumina arc tube. This tube is filled with both gas and metal salts. The gas facilitates the arc's initial strike. Once the arc is started, it heats and evaporates the metal salts forming plasma, which greatly increases the intensity of light produced by the arc and reduces its power consumption. High-intensity discharge lamps are a type of arc lamp.

Xenon Lighting: A xenon arc lamp is a specialized type of gas discharge lamp, an electric light that produces light by passing electricity through ionised xenon gas at high pressure. It produces a bright white light that closely mimics natural sunlight. Xenon arc lamps are used in movie projectors in theaters, in searchlights, and for specialized uses in industry and research to simulate sunlight. Xenon headlamps in automobiles actually use metal-halide lamps where a xenon arc is only used during start-up.

Stengel Lighting

Stengel was founded in 1986 and is mainly occupied with the design and sales of energy saving vehicle lights. 25 years experience in light technology have left a considerable impression.

In 1986 they started with lights for the solar industry and in 1988 they presented the RESOLUX series and by using energy saving compact lamps they created the foundation for their success. One year later they added electronic inverter ballast for compact lamps, 230V AC/DC to their product range.

All lights in their program are state of the art and revised regularly. This way they can offer perfect design, high-tech electronics and the latest lamp technology.

And naturally MADE IN GERMANY!

Stengel - Resolux Compact Fluorescent Lights

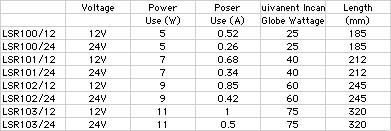

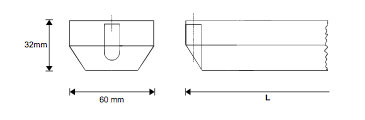

Resolux 100, 101, 102 & 103 Series Compact Fluorescent - Surface Mounted Lights

These German Made fluorescent lights are a surface mounted luminare made from high quality PCB. These lights have been designed for use in motor homes, caravans, weekend shacks, or even the home. When installed these highly attractive fixtures will light up whatever room they might be put into. Utilising a universal PCB throughout all models allows you to install a lower wattage tube to reduce power consumption if required.

Using the quality PCB allows these lights to have no radio interference (to the new improved standard VDE0871B), low loss reverse polarity protection, over and under voltage protection. All of these features in the one compact unit. The Resolux 100 series lights are a surface mounted luminaire made of high quality PCB, these lights have been designed for use in motorhome's and caravans to provide a highly efficient light in an attractive fitting. A universal PCB is fitted in all luminare's, making it possible to use lower wattage tubes in larger luminare's, to reduce power consumption if required.

12 and 24 Volt DC Models available.



a

RESOLUX 100 Series

Wattage: 1 x 5 Watt

Single lamp luminaire, surface-mounted

12 Volt DC Only.

Input Voltage Range: 10.5V to 15.0V

Operating Frequency: 33kHz

Power Consumption: 510mA @ 12V

Comparable to a 25w Incandescent house globe

RESOLUX 101 Series

Wattage: 1 x 7 Watt

Single lamp luminaire, surface-mounted

12 or 24 Volt DC.

Input Voltage Range:10.5V to 15.0V (12V DC) or 21.0V to 29.0V (24V DC)

Operating Frequency: 33kHz

Power Consumption: 650mA @ 12V / 320mA @ 24V

Comparable to a 40w Incandescent house globe

RESOLUX 102 Series

Wattage: 1 x 9 Watt

Single lamp luminaire, surface-mounted

12 or 24 Volt DC.

Input Voltage Range:10.5V to 15.0V (12V DC) or 21.0V to 29.0V (24V DC)

Operating Frequency: 33kHz

Power Consumption: 820mA @ 12V / 390mA @ 24V

Comparable to a 60w Incandescent house globe

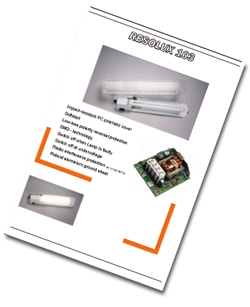

RESOLUX 103 Series

Wattage: 1 x 11 Watt

Single lamp luminaire, surface-mounted

12 or 24 Volt DC.

Input Voltage Range:10.5V to 15.0V (12V DC) or 21.0V to 29.0V (24V DC)

Operating Frequency: 33kHz

Power Consumption: 1030mA @ 12V / 520mA @ 24V

Comparable to a 75w Incandescent house globe

Resolux 112 & 113 Compact Fluorescent - Recessed Lights

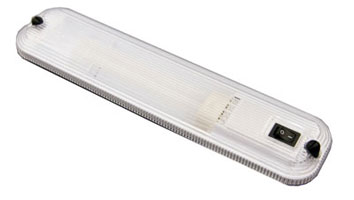

Resolux 112 Series Compact Fluorescent Light

The Resolux 112 is only available as a 9 W recessed light for installation in boats, motorhome's and caravans.

The light is constructed of high tech pcb with soft start.

12 or 24 Volt DC.

Operating Frequency: 33kHz

Input Voltage Range:10.5V to 15.0V (12V DC) or 21.0V to 29.0V (24V DC)

Power Consumption: 820mA @ 12V / 390mA @ 24V

Comparable to a 60w Incandescent house globe

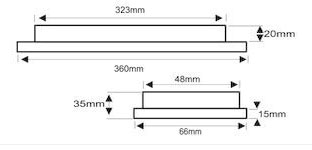

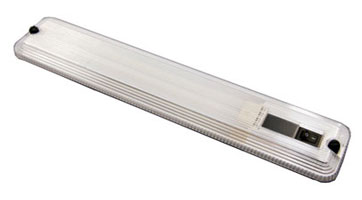

Resolux 113 Series Compact Fluorescent Light

The Resolux 113 is only available as a 11 W recessed light for installation in boats, motorhome's and caravans.

The light is constructed of high tech pcb with soft start.

12 or 24 Volt DC.

Operating Frequency: 33kHz

Input Voltage Range:10.5V to 14.8V (12V DC) or 21.0V to 28.5V (24V DC)

Power Consumption: 1000mA @ 12V / 5200mA @ 24V

Comparable to a 75w Incandescent house globe

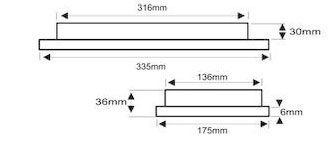

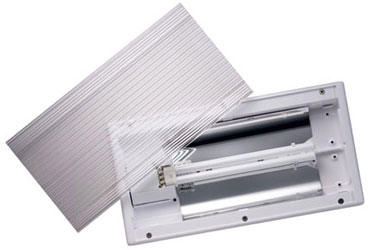

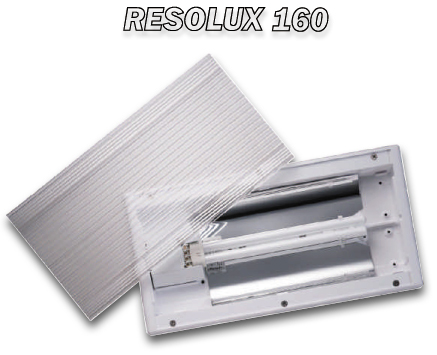

Resolux 160 Series Compact Fluorescent - Recessed Light

The Resolux 160 is designed for recessed interior fitting and has superior radio interference suppression.

The light also has soft start and built in polarity reversal protection.

Operating temperatures can range between -30°C and +60°C.

Radio suppression to VDE 0871 B standard.

Fitted with 11 W compact fluorescent tube as standard.

This light is also available with a radius adapted housing for curved ceilings.

Input Voltage Range:10.5V to 14.8V (12V DC) or 21.0V to 28.5V (24V DC)

Power Consumption: 1000mA @ 12V / 5200mA @ 24V

Comparable to a 75w Incandescent house globe

Stengel FR Series Dust & Jet Proof Fluorescent - Surface Mounted lights - IP65 Rated

Need a fluorescent that performs under extreme conditions?

The impact resistant Stengel FR series has been designed to work where conditions are wet or dusty. They are well suited to workshops and engine rooms or areas where there may be excessive soiling.

The clear polycarbonate diffuser swivels at one end for removal if necessary. The FR series has an operating temperature range of between -20C and 60C.

Operating temperature range: -20°C to +60°C

Model
Voltage Current Luminous Flux
FR11/12
12 Volt
1.0A
900lm
FR11/24
24 Volt
0.5A
900lm
FR18/12
12 Volt
1.6A
1000lm
FR18/24
24 Volt
0.8A
1450lm
FR36/12
12 Volt
4.2A
3500lm
FR36/24
24 Volt
2.1A
3500lm

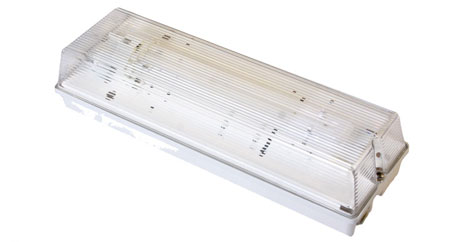

FR 11 & FR 18C Compact fluorescent's:

Housing white polycarbonate with one self-sealing grommet on opening closing end, two boreholes with rubber washers inserted for sealing.

Clear prism polycarbonate diffuser, with a swiveling device on one side so that the diffuser can be unhooked and removed if necessary.

Securely fixed on the other end with a V4A screw.

Connection via three-way terminal. The PCB is fitted on the inside of the white reflector sheet.

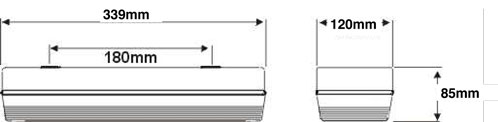

The FR 18 Compact is slightly larger than the FR 11 Light, but still much smaller than the non-compact versions.



a

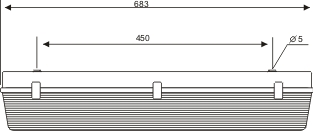

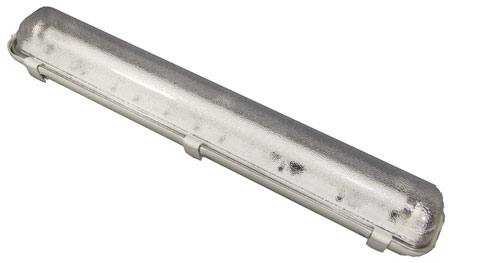

FR 18 & FR 36:

Housing grey polycarbonate with polyurethane sealing, two self-sealing grommets, two bore holes for ceiling or wall mounting, rubber seals and washers for sealing fixture are included.

The diffuser is made of injection-molded polycarbonate with inner prism.

Swiveling device on one end so that diffuser can be unhooked and removed if necessary, secured by clamps on the other end.

Inverter ballasts Resolux 980 / 981 are fixed to the white powder-sprayed metal sheet reflector together with a three-way connection terminal.

The reflector can be unhooked and removed if necessary.

aa

Stengel Lumelite Compact Fluorescent

LUMLITE an economical interior luminaire with high light intensity.

The 9 watt compact lamp ( equivalent to 60 watt incandescent lamp) satisfies the needs on caravan, bus and commercial vehicle market with light quantity and colour.

The PC cover can be removed by slight pressure on the edges.

The ABS-chassis has a cable duct to simplify the feeding of the connection cable.

The PC-board is build according to the latest technology.

LUMLITE has been developed for the individual private and commercial 12 + 24 V application with long life compact lamp, low maintenance while having optimum light conditions.

Technical data:

Safety protection against idle current, under voltage and faulty lamp.

Radio interference suppression according to EN 55015

Operating temp. range: -10°C to +55°C

Operating frequency: 60kHz

Operating voltage: 10.5V to 15.0V (12V DC) or 21.0V to 29.0V (24V DC)

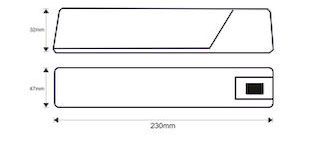

Dimensions (LxWxH): 230mm x 47mm x 32mm

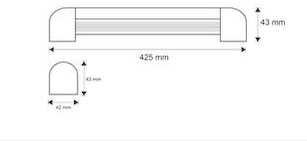

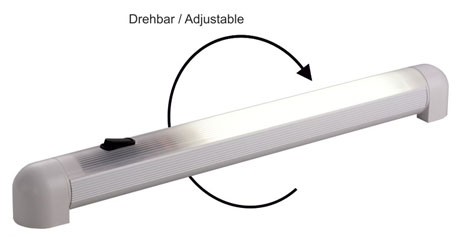

Stengel Mobilux Adjustable Compact Fluorescent

These German made fittings provide efficient lighting in an elegant luminaire.

a

Mobilux adjustable compact fluorescent lights have an aluminium profile covered with a PC prismatic diffuser.

The ends are closed off by plastic parts, which are necessary for the wall mounting and allow a rotation of 270 degrees. That is, the light can be changed from direct to indirect illumination.

The PC-board is placed inside the aluminium profile.

The luminaire's are supplied complete with an 11W compact fluorescent tube.

Radio suppression is to standard VDE 0871 B and exceeds CE standards

Mobilux adjustable compact fluorescent lights are available in 2 different colours, Aluminium & White.

The light colour is identical to the light colour of an incandescent lamp therefore will accentuate the required comfortable character.

The PC-board has a soft start as well as a safety circuit.

Technical data:

Radio interference suppression according to EN 55015 + VDE 0871 B

Operating temperature range: -20°C to +70°C

Operating voltage: 10.5V to 15.0V (12V DC) or 21.0V to 29.0V (24V DC)

Dimensions (LxWxH): 230mm x 47mm x 32mm

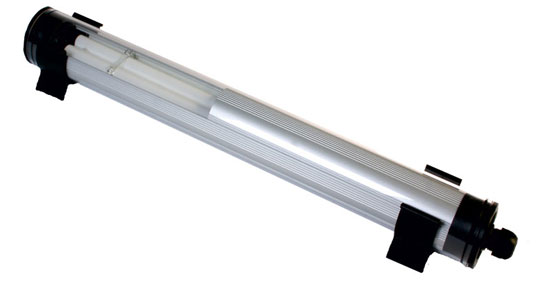

Mobilum Industrial Handheld Fluorescent Light Fittings

The ultimate handheld light.

These handheld fluorescent lights are tougher than your average light.

The MOBILUM range of fluoro is water proof and shock proof.

Integrated into this tough little unit is the standard features of the Stengel fluoro fittings including the radio interference suppression, low loss reverse polarity protection, over and under voltage protection.

The Mobilum is also enclosed in a water proof housing that is rated to IP 68. Protection class IP 68 proofs that the luminaire can be used in a rough and wet surrounding.

The ends are sealed tight. At one side is a cable gland suitable for 6-12mm O/D cable

Designed for: Commercial Vehicles, Vessels and Fishing Boats, Machinery, Tents e.t.c

There are mounting clamps available, so the Mobilum can also be mounted on walls.

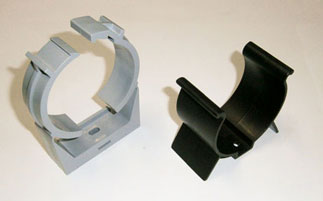

Options are a grey lock-in clip and black push-in clip. (pictured to the left)

The luminaire's have an integrated soft start, over voltage protection and reverse polarity protection.

Available in 12 or 24 Volt (except models with T5 tubes).







Technical data:

Radio interference suppression according to EN 55015 + VDE 0871 B

Operating temperature range: -20°C to +70°C

Operating voltage: 10.5V to 15.0V (12V DC) or 21.0V to 29.0V (24V DC)

Diameter: 63mm

Model
Voltage
Compact Lamp
Length (mm)
MO 11/12 + 24Volt
12+24 Volt DC
11 Watt (TC-EL 11)
414mm
MO 18L/12 + 24Volt
12+24 Volt DC
18 Watt (TC-L 18)
550mm
MO 36L/12 + 24Volt
12+24 Volt DC
36 Watt (TC-L 36)
750mm

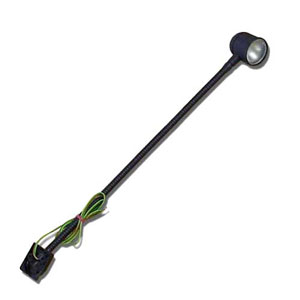

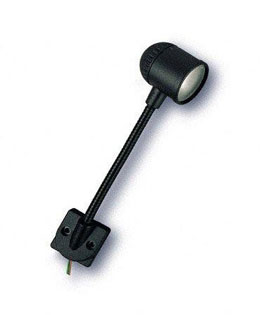

Copilot Map Light

Osram Copilot Reading Lamps are high-intensity halogen reading light for people on the move.

It has a flexible arm and head which can rotate through 360° and is equally at home in cars, HGV's, boats, caravans and mobile homes.

Comes with 5 W halogen globe & Black matte finish.

The lights use very little power but focus a large amount of quality light in a small area.

They are great for reading and hand tasks.

The base is designed to be permanently mounted to the work surface

Perfect for caravans and boats

10cm & 60cm flexible gooseneck - rotates 360°

Easy to install - mounting set included



Replacement globes are also available. These are a BA9s Globe.







Supplementary Light "Backseat Light"

Best as reading light in the passenger cars backseat, ideal for boats and caravans as well.

Easy assembly by use of the enclosed assembly kit. Light unit with slide switch, antiglare screen and integrated reflector. Flexible light arm slewable in all directions. Comes with a 12v 10w globe, and light is fused to 8 A.



LABSI Black Flexi light 10W $69.99 Buy this product from our online store



Cabin Lights

Stainless Steel Cabin Dome Light

LIMITED STOCK AVAILABLE

aAttractive 304 grade stainless steel dome light with chrome plated brass toggle switch and diffused frosted glass lens. Built of corrosion resistant stainless steel – no more rust! – the impact resistant lens cover will take the knocks of life at sea.

LDS LDM LDL
Base Diameter (mm):
110
140
170
Lens Diameter (mm):
75
102
123
Height (mm):
30
35
50
Globe (mm):
10
15
15

LDSS Small SS Dome Light 10W $19.99 Buy this product from our online store

Flush Mount Cabin Lights

LHF4

A

LHF3

A

LHF2

A

LHF1

A

LIMITED STOCK AVAILABLE

These quartz halogen lights (LHF1-5, LHS1-5) are made of white plastic and include a 10 W 12 V DC halogen globe.

The globe can be replaced with a 12 or 24 V DC or 5, 10 or 20 W bi-pin globe.

The aluminium reflector is specially designed to expend heat to the front of the light, rather than to the rear, as occurs with domestic halogen lights.

Halogen lights are best used where lighting is required for short periods.

LHF1 Halogen Standard Flush $19.99 Buy this product from our online store
LHF2 Halo. Standard Flush w/s $26.99 Buy this product from our online store
LHF3 No longer Available $25.99 Buy this product from our online store
LHF4 Halo Flush Rotatable w/sw $27.99 Buy this product from our online store

Surface Mount Cabin Lights

LHS4

A

LHS3

A

LHS2

A

LHS1

A

LIMITED STOCK AVAILABLE

These quartz halogen lights (LHF1-5, LHS1-5) are made of white plastic and include a 10 W 12 V DC halogen globe.

The globe can be replaced with a 12 or 24 V DC or 5, 10 or 20 W bi-pin globe.

The aluminium reflector is specially designed to expend heat to the front of the light, rather than to the rear, as occurs with domestic halogen lights.

Halogen lights are best used where lighting is required for short periods.

LHS1 Halogen Surface Standard $19.99 Buy this product from our online store
LHS2 Halo Surface Standard w/s $27.99 Buy this product from our online store
LHS3 Halogen Surface Rotatable $29.99 Buy this product from our online store
LHS4 Halo. Surf. Rotatable w/s $29.99 Buy this product from our online store

Other Cabin Lights

LHS5

A

LHF5

A

LIMITED STOCK AVAILABLE

These quartz halogen lights (LHF1-5, LHS1-5) are made of white plastic and include a 10 W 12 V DC halogen globe.

The globe can be replaced with a 12 or 24 V DC or 5, 10 or 20 W bi-pin globe.

The aluminium reflector is specially designed to expend heat to the front of the light, rather than to the rear, as occurs with domestic halogen lights.

Halogen lights are best used where lighting is required for short periods.



LHF5 Halo. Flush w/Wide Cover $20.99 Buy this product from our online store
LHS5 Halo Surface w/Wide Cover $20.99 Buy this product from our online store

Items Not stocked but available from overseas suppliers

Reading Light "Pilot Light"

AReady for use without assembly. Light unit with slide switch, antiglare screen, integrated reflector, flexible arm slewable in all directions and Safety Universal Plug. With integrated 8 A fuse to protect the board system, to DIN ISO 4165. Connection to Cigarette Lighter and Standard Socket Outlets with no problems. 12 V/10W.



Enquire Within Call us about this item

Superlux Halogen Hand and Reading Light

AAll-round light for car, boat and caravan. Attachment of the multi-purpose ball jointed holder either permanent by screw-on fastening or flexible by suction cup on any car window. 12 V/10 W halogen incandescent lamp and computer set reflector, optimal antiglare light distribution by prismatic lens, helix cable 0.6 to 3.0 m, Safety Universal Plug, 8 A.



Enquire Within Call us about this item

Battery Control

AProtects the battery from excessive discharge caused by electrical appliances such as cool boxes, seat heating's, fans, etc. by automatic cut-out of the power supply. Renewed cut-in with the return of normal voltage conditions. Fitting for cigarette lighter and standard socket, with LED operational check and short circuit protection. 1.0 m line cord with connector (interior ay 21 mm), bendable and therefore adjustable to various space conditions around the cigar lighter.

Enquire Within Call us about this item

Digital Timer

AReliable on and off switching of programmed time sets - for electrical devices like cool- boxes, seat heating's, lamps etc. Board network 12 V DC ± 10%, breaking capacity max. 8 (5) A/120 W resistive load, 28 storage locations (14 x on/14 x off), daily and weekly programme.

Enquire Within Call us about this item
