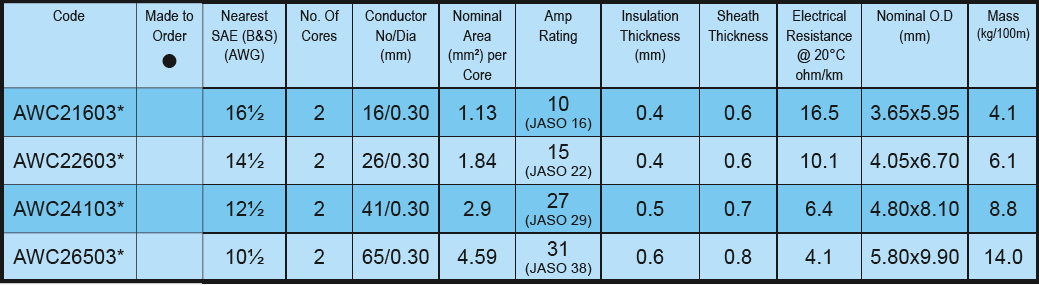

Twin Sheath Two Core Flat
75°C PVC Insulated
APPLICATIONS: Trailer wiring.
CONDUCTOR: Plain copper wire.
INSULATION: 75°C PVC to AS 3808
CORE COLOUR: Red, black.
SHEATH: 75°C PVC to AS 3808
SHEATH COLOUR: Black.
PACK: 30, 100 metres, bulk drum.NOTE: (i) Amp ratings may vary according to standards applied or specific application.
(ii) Not suitable for connection to Mains Power Supply
* Industry Equivalent – 3mm, 4mm, 5mm, 6mm
| AWC21603-BK-100 | 3MM V90 TWIN SHEATH :BLACK | Call Us! | |
| AWC21603-BK-1000 | 3MM V90 TWIN SHEATH :BLACK | Call Us! | |
| AWC21603-BK-30 | 3MM V90 TWIN SHEATH :BLACK | Call Us! | |
| AWC21603-BK-50 | 3MM V90 TWIN SHEATH :BLACK | Call Us! | |
| AWC21603-BK-500 | 3MM V90 TWIN SHEATH :BLACK | Call Us! | |
| AWC22603-BK-100 | 4MM V90 TWIN SHEATH :BLACK | Call Us! | |
| AWC22603-BK-250 | 4MM V90 TWIN SHEATH :BLACK | Call Us! | |
| AWC22603-BK-30 | 4MM V90 TWIN SHEATH :BLACK | Call Us! | |
| AWC22603-BK-50 | 4MM V90 TWIN SHEATH :BLACK | Call Us! | |
| AWC22603-BK-500 | 4MM V90 TWIN SHEATH :BLACK | Call Us! | |
| AWC24103-BK-100 | 5MM V90 TWIN SHEATH :BLACK | Call Us! | |
| AWC24103-BK-250 | 5MM V90 TWIN SHEATH :BLACK | Call Us! | |
| AWC24103-BK-30 | 5MM V90 TWIN SHEATH :BLACK | Call Us! | |
| AWC24103-BK-50 | 5MM V90 TWIN SHEATH :BLACK | Call Us! | |
| AWC24103-BK-500 | 5MM V90 TWIN SHEATH :BLACK | Call Us! | |
| AWC26503-BK-100 | 6MM V90 TWIN SHEATH :BLACK | Call Us! | |
| AWC26503-BK-250 | 6MM V90 TWIN SHEATH :BLACK | Call Us! | |
| AWC26503-BK-30 | 6MM V90 TWIN SHEATH :BLACK | Call Us! | |
| AWC26503-BK-50 | 6MM V90 TWIN SHEATH :BLACK | Call Us! | |
| AWC26503-BK-500 | 6MM V90 TWIN SHEATH :BLACK | Call Us! | |
| AWC26503-BK-V | 6MM V90 TWIN SHEATH :BLACK | Call Us! | |
| AWC2DDA-BK-100 | Call Us! | ||
| AWC2DDA-BK-30 | Call Us! | ||
| AWC2DDA-BK-50 | Call Us! | ||
| AWC2DDA-BK-500 | Call Us! |

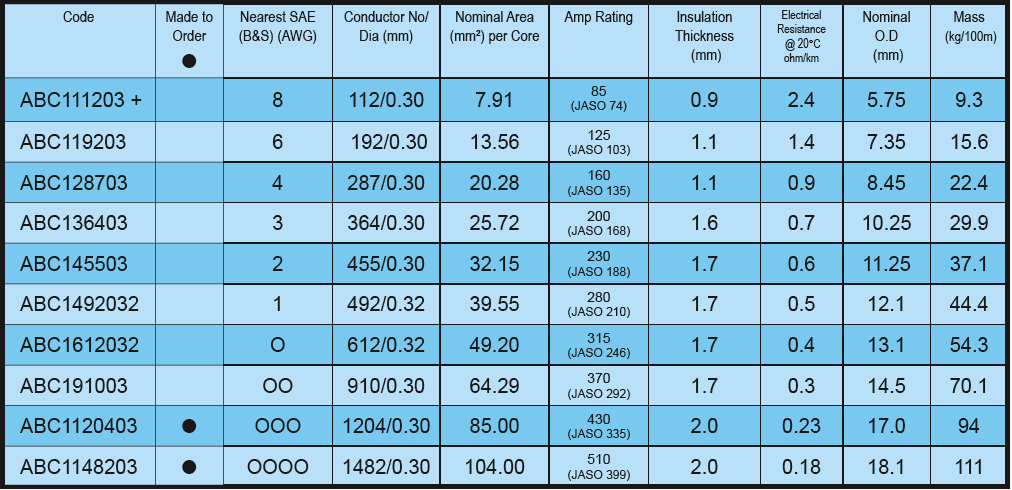

Single Core Battery/Starter
75°C PVC Insulated
APPLICATIONS: Battery and starter cable.
CONDUCTOR: Plain copper wire.
INSULATION: 75°C PVC to AS 3808.
COLOUR: Red or black (8 B & S to 00 B & S).
Black only (000 B & S, 0000 B & S).
PACK: 30, 100 metres, bulk drum.
TYPICAL PROPERTIES:NOTE: (i) Amp ratings are based on 60% duty cycle & JASO D609 single core at 30c 100% Duty Cycle.
(ii) Not suitable for connection to Mains Power Supply.
+ N.Z. equivalent – Auto 158.
| ABC111203-BK-100 | 8 B&S BATTERY V90 :BLACK | Call Us! | |
| ABC111203-BK-30 | 8 B&S BATTERY V90 :BLACK | Call Us! | |
| ABC111203-BK-50 | 8 B&S BATTERY V90 :BLACK | Call Us! | |
| ABC111203-BK-500 | 8 B&S BATTERY V90 :BLACK | Call Us! | |
| ABC111203-RD-100 | 8 B&S BATTERY V90 :RED | Call Us! | |
| ABC111203-RD-30 | 8 B&S BATTERY V90 :RED | Call Us! | |
| ABC111203-RD-50 | 8 B&S BATTERY V90 :RED | Call Us! | |
| ABC111203-RD-500 | 8 B&S BATTERY V90 :RED | Call Us! | |
| ABC1120403-BK-10 | 000 B&S BATTERY V90 :BLACK | Call Us! | |
| ABC1120403-BK-30 | 000 B&S BATTERY V90 :BLACK | Call Us! | |
| ABC1120403-BK-V | 000 B&S BATTERY V90 :BLACK | Call Us! | |
| ABC1120403-RD-10 | 000 B&S BATTERY V90 :RED | Call Us! | |
| ABC1120403-RD-30 | 000 B&S BATTERY V90 :RED | Call Us! | |
| ABC1148203-BK-100 | 0000 B&S BATTERY V90:BLACK | Call Us! | |
| ABC1148203-BK-50 | 0000 B&S BATTERY V90:BLACK | Call Us! | |
| ABC119203-BK-100 | 6 B&S V90 BATTERY :BLACK | Call Us! | |
| ABC119203-BK-30 | 6 B&S V90 BATTERY :BLACK | Call Us! | |
| ABC119203-RD-100 | 6 B&S V90 BATTERY :RED | Call Us! | |
| ABC119203-RD-30 | 6 B&S V90 BATTERY :RED | Call Us! | |
| ABC128703-BK-100 | 4 B&S V90 BATTERY :BLACK | Call Us! | |
| ABC128703-BK-30 | 4 B&S V90 BATTERY :BLACK | Call Us! | |
| ABC128703-BK-V | 4 B&S V90 BATTERY :BLACK | Call Us! | |
| ABC128703-RD-100 | 4 B&S V90 BATTERY :RED | Call Us! | |
| ABC128703-RD-30 | 4 B&S V90 BATTERY :RED | Call Us! | |
| ABC128703-RD-V | 4 B&S V90 BATTERY :RED | Call Us! | |
| ABC136403-BK-100 | 3 B&S V90 BATTERY :BLACK | Call Us! | |
| ABC136403-BK-30 | 3 B&S V90 BATTERY :BLACK | Call Us! | |
| ABC136403-BK-V | 3 B&S V90 BATTERY :BLACK | Call Us! | |
| ABC136403-RD-100 | 3 B&S V90 BATTERY :RED | Call Us! | |
| ABC136403-RD-30 | 3 B&S V90 BATTERY :RED | Call Us! | |
| ABC136403-RD-V | 3 B&S V90 BATTERY :RED | Call Us! | |
| ABC145503-BK-100 | 2 B&S V90 BATTERY :BLACK | Call Us! | |
| ABC145503-BK-30 | 2 B&S V90 BATTERY :BLACK | Call Us! | |
| ABC145503-BK-V | 2 B&S V90 BATTERY :BLACK | Call Us! | |
| ABC145503-LB-100 | 2 B&S V90 BATTERY :BLUE | Call Us! | |
| ABC145503-LB-V | 2 B&S V90 BATTERY :BLUE | Call Us! | |
| ABC145503-RD-100 | 2 B&S V90 BATTERY :RED | Call Us! | |
| ABC145503-RD-30 | 2 B&S V90 BATTERY :RED | Call Us! | |
| ABC145503-RD-V | 2 B&S V90 BATTERY :RED | Call Us! | |
| ABC1492032-BK-100 | 1 B&S V90 BATTERY :BLACK | Call Us! | |
| ABC1492032-BK-30 | 1 B&S V90 BATTERY :BLACK | Call Us! | |
| ABC1492032-RD-30 | 1 B&S V90 BATTERY :RED | Call Us! | |
| ABC1612032-BK-10 | 0 B&S V90 BATTERY :BLACK | Call Us! | |
| ABC1612032-BK-100 | 0 B&S V90 BATTERY :BLACK | Call Us! | |
| ABC1612032-BK-30 | 0 B&S V90 BATTERY :BLACK | Call Us! | |
| ABC1612032-RD-10 | 0 B&S V90 BATTERY :RED | Call Us! | |
| ABC1612032-RD-100 | 0 B&S V90 BATTERY :RED | Call Us! | |
| ABC1612032-RD-30 | 0 B&S V90 BATTERY :RED | Call Us! | |
| ABC191003-BK-10 | OO B&S V90 BATTERY :BLACK | Call Us! | |
| ABC191003-BK-100 | OO B&S V90 BATTERY :BLACK | Call Us! | |
| ABC191003-BK-30 | OO B&S V90 BATTERY :BLACK | Call Us! | |
| ABC191003-BK-V | OO B&S V90 BATTERY :BLACK | Call Us! | |
| ABC191003-RD-100 | OO B&S V90 BATTERY :RED | Call Us! | |
| ABC191003-RD-30 | OO B&S V90 BATTERY :RED | Call Us! | |
| ABC191003-RD-V | OO B&S V90 BATTERY :RED | Call Us! |
Twin Flex Battery
V90HT Insulated and Sheathed
Figure 8 Format
APPLICATIONS: Battery and starter cable.
CONDUCTOR: Plain copper wire.to AS1125 Class 6.
COLOUR: Clear outer, red and blue inner with alternate red & black available.
PACK: 100 metres, bulk drum.NOTE: (i) Amp ratings are based on 60% duty cycle & JASO D609 single core at 30c 100% Duty Cycle.
(ii) Not suitable for connection to Mains Power Supply.
+ N.Z. equivalent – Auto 158.

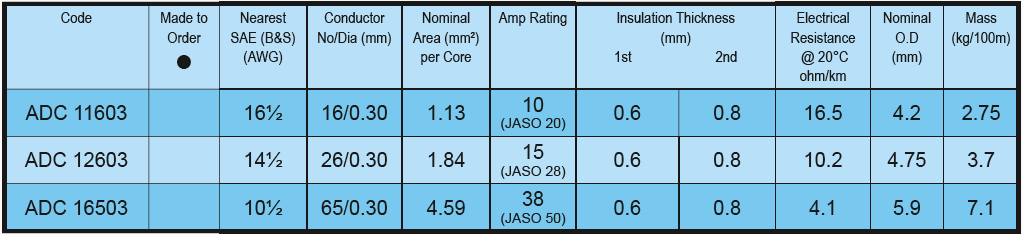

Single Core Double Insulated
75°C PVC Insulated and Sheathed
APPLICATIONS: Gas conversions.
CONDUCTOR: 75°C PVC to AS 3808
COLOUR: Red core, black sheath.
PACK: 30, 100 metres.NOTE: (i) Amp ratings may vary according to standards applied or specifi c application.
(ii) Not suitable for connection to Mains Power Supply
* Industry Equivalent – 3mm, 4mm, 6mm.

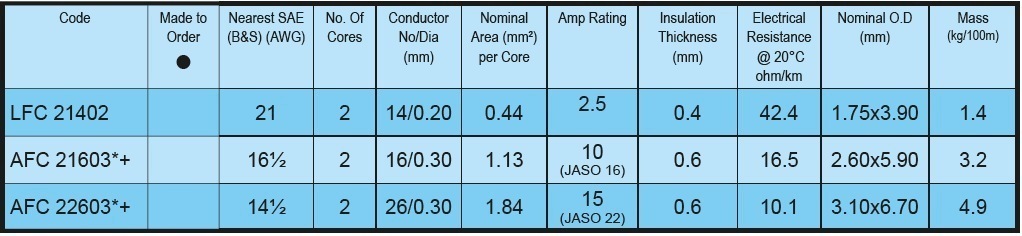

Figure 8 Parallel Webbed
75°C PVC Insulated
APPLICATIONS: Hook-up, speaker connection.
CONDUCTOR: Plain copper wire.
INSULATION: 75°C PVC to AS 3808
COLOUR: Red with a black stripe.
Other combinations as requested.
PACK: 30, 100, 500 metres.
NOTE: (i) Amp ratings may vary according to standards applied or specifi c application.
(ii) Not suitable for connection to Mains Power Supply
* Industry Equivalent – 3mm, 4mm.
+ N.Z. equivalent – Auto 151, 153.

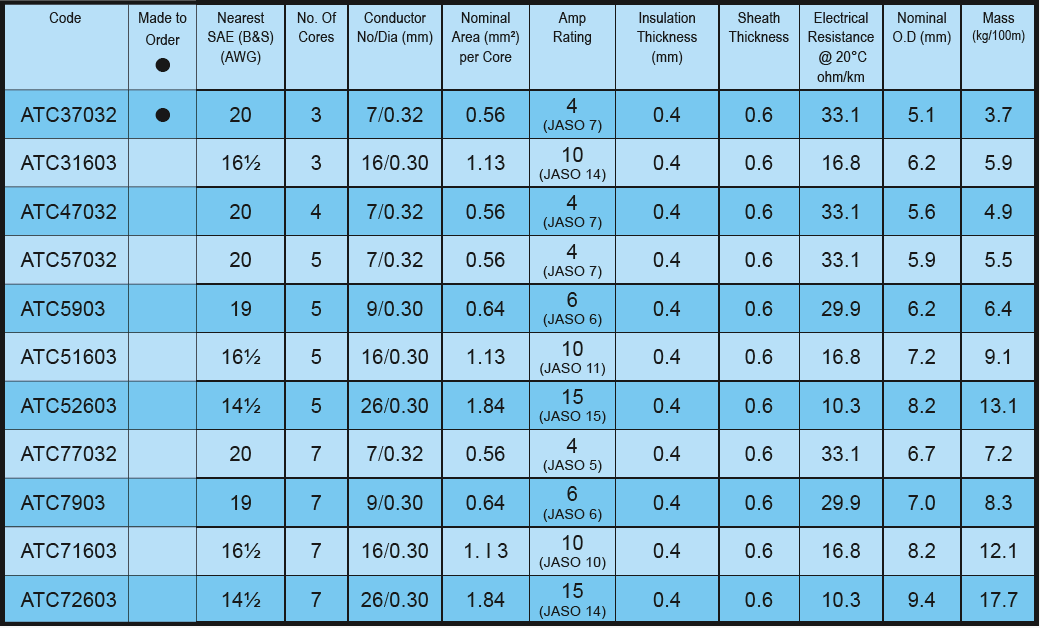

Multi-Core Trailer Cable
75°C PVC Insulated and Sheathed
APPLICATIONS: Caravan and trailer wiring.
CONDUCTOR: Plain copper wire.
INSULATION: 75°C PVC to AS 3808
CORE COLOUR: CORE NO. COLOUR
1 White
2 Yellow
3 Brown
4 Red
5 Green
6 Black
7 Blue
SHEATH: 75°C PVC to AS 3808
SHEATH COLOUR: Black.
PACK: 30, 100, 500, 1000 metres, bulk drum.
NOTE: (i) Amp ratings may vary according to standards applied or specifi c application.
(ii) Not suitable for connection to Mains Power Supply

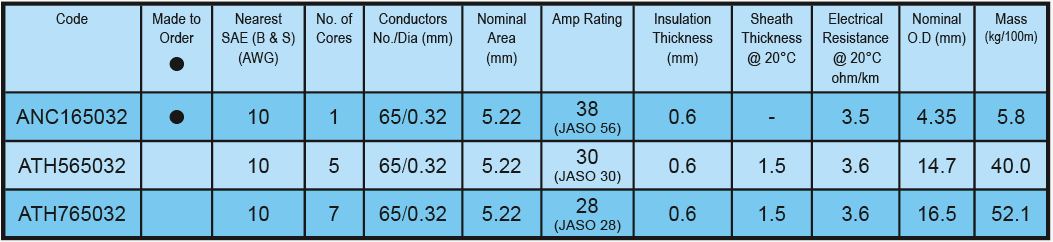

Road Train - ADR 63 - Heavy Duty
Single, five and seven core
APPLICATIONS: Road train wiring.
ROAD TRAIN SPEC ADR 63. MIN : 5 mmsq (conductor area)
MAX : 4 ohms / km (elect resist)
CONDUCTOR: Plain copper wire.
INSULATION: 75°C PVC to AS 3808
CORE COLOUR: Five Core: white, yellow, brown, red, green.
Seven Core: white, yellow, brown, red, green, blue, black.
SHEATH: Black 75° PVC to AS 3808 (five and seven core).
PACK: 30, 300 metre, bulk drum.NOTE: (i) Amp ratings may vary according to standards applied or specifi c application.
(ii) Not suitable for connection to Mains Power Supply

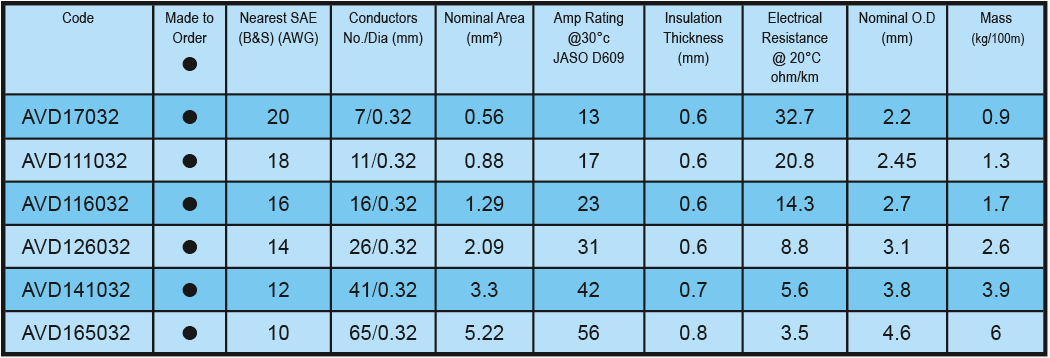

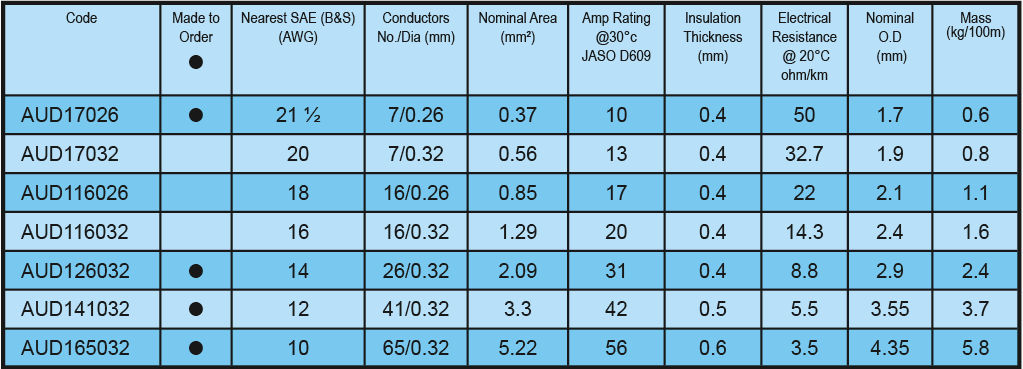

Single Core AV
Harness Assembly
105°C PVC Insulated to JISC3406
APPLICATIONS: Harness manufacture.
CONDUCTOR: Plain copper wire to JIS C3102.
INSULATION: V90HT (105°C) PVC to AS3808
COLOUR: To customer’s requirements by quotation.
PACK: To customer’s requirements by quotation.NOTE: (i) Not for connection to Mains Power Supply.
Single Core AVS Thin Wall
105°C PVC Insulated to JASO D611
APPLICATIONS: Harness manufacture.
CONDUCTOR: Plain copper wire to JIS C3102.
INSULATION: V90HT (105°C) PVC to AS 3808.
COLOUR: To customer’s requirements by quotation.
PACK: To customer’s requirements by quotation.NOTE: (i) Not for connection to Mains Power Supply.

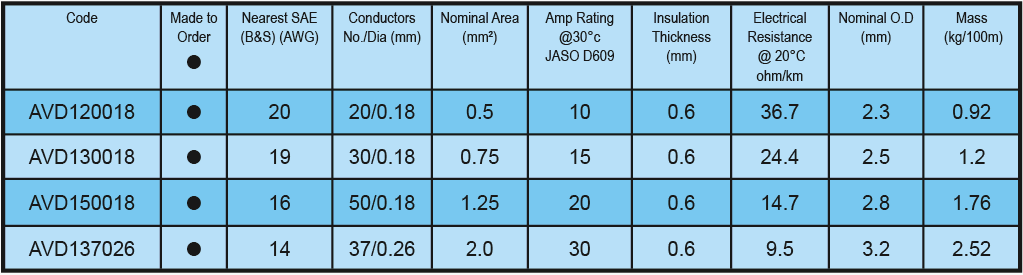

AutoSingle Core AVF - Flexible Conductor 105°C PVC Insulated JIS C3406
APPLICATIONS: Harness manufacture.
CONDUCTOR: Plain copper wire.
INSULATION: V90HT (105°C) PVC to AS 3808.
COLOUR: To customer’s requirements by quotation.
PACK: To customer’s requirements by quotation.NOTE: (i) Not for connection to Mains Power Supply.

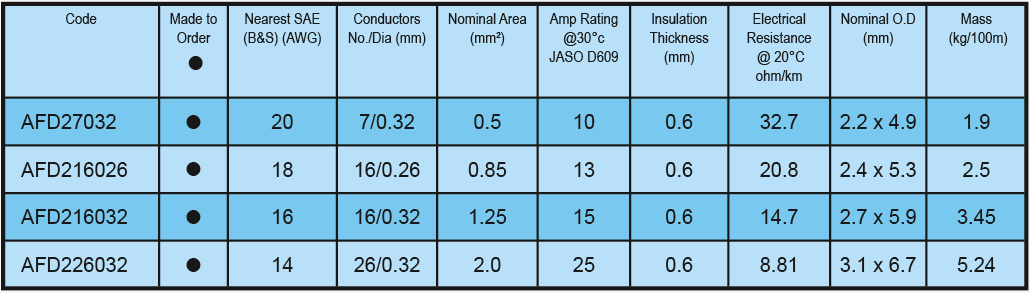

2 Core Flat AVF - Parallel Webbed
105°C PVC Insulated
APPLICATIONS: Harness manufacture.
CONDUCTOR: Plain copper wire to JIS 3102.
INSULATION: V90HT (105°C) PVC to AS 3808.
COLOUR: To customer’s requirements by quotation.
PACK: To customer’s requirements by quotation.NOTE: (i) Not for connection to Mains Power Supply.

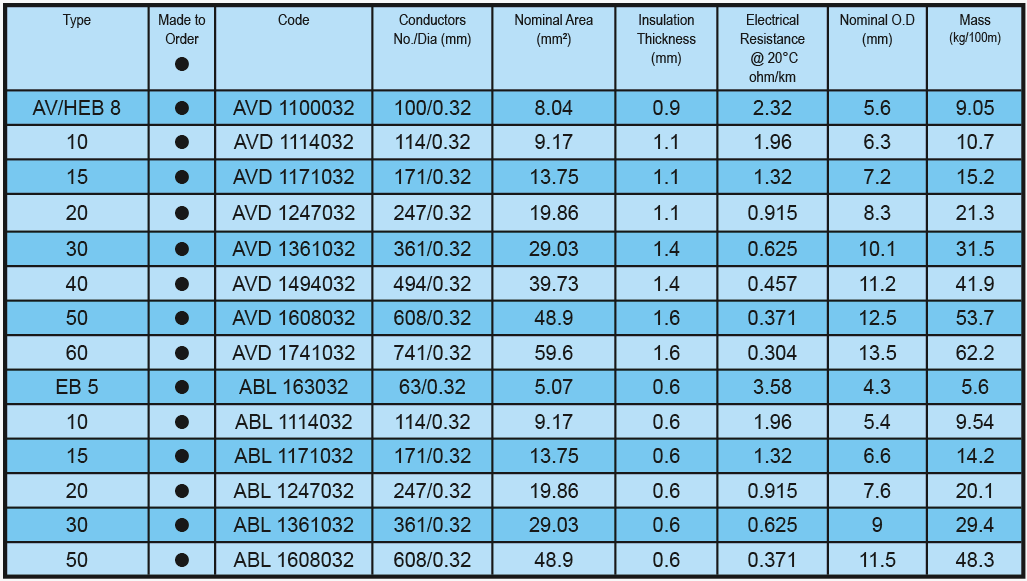

Single Core Battery/Starter AV, HEB, EB
105°C PVC Insulated
APPLICATIONS: Battery and starter cable.
CONDUCTOR: Plain copper wire.
INSULATION: V90HT (105°C) PVC to AS 3808.
COLOUR: To customer’s requirements by quotation.
PACK: Bulk drum.NOTE: (i) Not for connection to Mains Power Supply.
