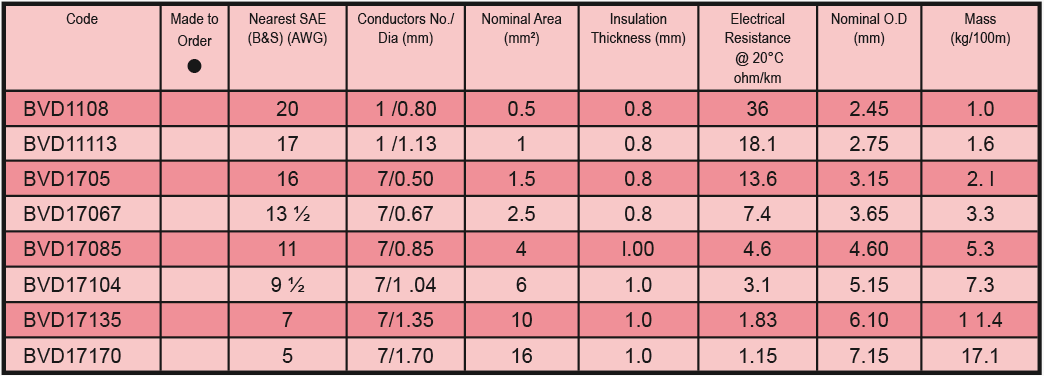

Single Core V90HT (105°C)
PVC Insulated to AS 5000.1 0.6/1KV
APPLICATIONS: Power Cable 0.6/1 KV.
CONDUCTOR: Plain copper wire.
INSULATION: V90HT PVC to AS 5000.1 & AS3808.
COLOUR: Black, blue, brown, orange, violet, red, white, grey, green/yellow.
Stripes by request.
PACK: 100 or 500 metres.NOTE: (i) Amp Ratings – See Technical Tables, Section 9, Or Refer To As 3008.1
BVD1108-BK-100 1/.8 HT90 0.6/1KV :BLACK Call Us! BVD1108-BK-1000 1/.8 HT90 0.6/1KV :BLACK Call Us! BVD1108-GN-100 1/.8 HT90 0.6/1KV :GREEN Call Us! BVD1108-GN-1000 1/.8 HT90 0.6/1KV :GREEN Call Us! BVD1108-GNYW-100 1/.8 HT90 0.6/1KV :GREEN/YELLOW Call Us! BVD1108-LB-100 1/.8 HT90 0.6/1KV :BLUE Call Us! BVD1108-LB-1000 1/.8 HT90 0.6/1KV :BLUE Call Us! BVD1108-NN-100 1/.8 HT90 0.6/1KV :BROWN Call Us! BVD1108-NN-1000 1/.8 HT90 0.6/1KV :BROWN Call Us! BVD1108-NN-500 1/.8 HT90 0.6/1KV :BROWN Call Us! BVD1108-OR-100 1/.8 HT90 0.6/1KV :ORANGE Call Us! BVD1108-OR-1000 1/.8 HT90 0.6/1KV :ORANGE Call Us! BVD1108-OR-500 1/.8 HT90 0.6/1KV :ORANGE Call Us! BVD1108-PK-100 1/.8 HT90 0.6/1KV :PINK Call Us! BVD1108-PK-1000 1/.8 HT90 0.6/1KV :PINK Call Us! BVD1108-RD-100 1/.8 HT90 0.6/1KV :RED Call Us! BVD1108-RD-1000 1/.8 HT90 0.6/1KV :RED Call Us! BVD1108-SY-100 1/.8 HT90 0.6/1KV :GREY Call Us! BVD1108-SY-1000 1/.8 HT90 0.6/1KV :GREY Call Us! BVD1108-VL-100 1/.8 HT90 0.6/1KV :VIOLET Call Us! BVD1108-VL-1000 1/.8 HT90 0.6/1KV :VIOLET Call Us! BVD1108-WH-100 1/.8 HT90 0.6/1KV :WHITE Call Us! BVD1108-WH-1000 1/.8 HT90 0.6/1KV :WHITE Call Us! BVD1108-WH-2000 1/.8 HT90 0.6/1KV :WHITE Call Us! BVD1108-WH-500 1/.8 HT90 0.6/1KV :WHITE Call Us! BVD1108-WHLB-100 1/.8 HT90 0.6/1KV :WHITE/BLUE Call Us! BVD1108-WHOR-100 1/.8 HT90 0.6/1KV :WHITE/ORANGE Call Us! BVD1108-WHOR-1000 1/.8 HT90 0.6/1KV :WHITE/ORANGE Call Us! BVD1108-WHYW-100 1/.8 HT90 0.6/1KV :WHITE/YELLOW Call Us! BVD1108-YW-100 1/.8 HT90 0.6/1KV :YELLOW Call Us! BVD1108-YW-1000 1/.8 HT90 0.6/1KV :YELLOW Call Us! BVD1108-YW-5000 1/.8 HT90 0.6/1KV :YELLOW Call Us! BVD11113-BK-100 1/1.13 HT90 0.6/1KV :BLACK Call Us! BVD11113-BK-500 1/1.13 HT90 0.6/1KV :BLACK Call Us! BVD11113-GN-100 1/1.13 HT90 0.6/1KV :GREEN Call Us! BVD11113-GN-500 1/1.13 HT90 0.6/1KV :GREEN Call Us! BVD11113-GNYW-100 1/1.13 HT90 0.6/1KV :GREEN/YELLOW Call Us! BVD11113-GNYW-500 Call Us! BVD11113-LB-100 1/1.13 HT90 0.6/1KV :BLUE Call Us! BVD11113-LB-1000 1/1.13 HT90 0.6/1KV :BLUE Call Us! BVD11113-LB-500 1/1.13 HT90 0.6/1KV :BLUE Call Us! BVD11113-NN-100 1/1.13 HT90 0.6/1KV :BROWN Call Us! BVD11113-NN-1000 1/1.13 HT90 0.6/1KV :BROWN Call Us! BVD11113-NN-500 1/1.13 HT90 0.6/1KV :BROWN Call Us! BVD11113-OR-100 1/1.13 HT90 0.6/1KV :ORANGE Call Us! BVD11113-OR-1000 1/1.13 HT90 0.6/1KV :ORANGE Call Us! BVD11113-OR-500 1/1.13 HT90 0.6/1KV :ORANGE Call Us! BVD11113-PK-100 1/1.13 HT90 0.6/1KV :PINK Call Us! BVD11113-RD-100 1/1.13 HT90 0.6/1KV :RED Call Us! BVD11113-RD-500 1/1.13 HT90 0.6/1KV :RED Call Us! BVD11113-SY-100 1/1.13 HT90 0.6/1KV :GREY Call Us! BVD11113-VL-100 1/1.13 HT90 0.6/1KV :VIOLET Call Us! BVD11113-WH-100 1/1.13 HT90 0.6/1KV :WHITE Call Us! BVD11113-WH-1000 1/1.13 HT90 0.6/1KV :WHITE Call Us! BVD11113-WH-500 1/1.13 HT90 0.6/1KV :WHITE Call Us! BVD11113-YW-100 1/1.13 HT90 0.6/1KV :YELLOW Call Us! BVD11113-YW-1000 1/1.13 HT90 0.6/1KV :YELLOW Call Us! BVD1705-BK-100 7/.5 HT90 0.6/1KV :BLACK Call Us! BVD1705-BK-500 7/.5 HT90 0.6/1KV :BLACK Call Us! BVD1705-GNYW-100 7/.5 HT90 0.6/1KV :GREEN/YELLOW Call Us! BVD1705-GNYW-500 7/.5 HT90 0.6/1KV :GREEN/YELLOW Call Us! BVD1705-LB-100 7/.5 HT90 0.6/1KV :BLUE Call Us! BVD1705-LB-500 7/.5 HT90 0.6/1KV :BLUE Call Us! BVD1705-LBRD-100 7/.5 HT90 0.6/1KV :BLUE/RED Call Us! BVD1705-LBWH-100 7/.5 HT90 0.6/1KV :BLUE/WHITE Call Us! BVD1705-NN-100 7/.5 HT90 0.6/1KV :BROWN Call Us! BVD1705-NN-500 7/.5 HT90 0.6/1KV :BROWN Call Us! BVD1705-NNRD-100 7/.5 HT90 0.6/1KV :BROWN/RED Call Us! BVD1705-NNWH-100 7/.5 HT90 0.6/1KV :BROWN/WHITE Call Us! BVD1705-OR-100 7/.5 HT90 0.6/1KV :ORANGE Call Us! BVD1705-OR-500 7/.5 HT90 0.6/1KV :ORANGE Call Us! BVD1705-PK-100 7/.5 HT90 0.6/1KV :PINK Call Us! BVD1705-PK-500 7/.5 HT90 0.6/1KV :PINK Call Us! BVD1705-RD-100 7/.5 HT90 0.6/1KV :RED Call Us! BVD1705-RD-500 7/.5 HT90 0.6/1KV :RED Call Us! BVD1705-SY-100 7/.5 HT90 0.6/1KV :GREY Call Us! BVD1705-SY-500 7/.5 HT90 0.6/1KV :GREY Call Us! BVD1705-VL-100 7/.5 HT90 0.6/1KV :VIOLET Call Us! BVD1705-VL-500 7/.5 HT90 0.6/1KV :VIOLET Call Us! BVD1705-WH-100 7/.5 HT90 0.6/1KV :WHITE Call Us! BVD1705-WH-500 7/.5 HT90 0.6/1KV :WHITE Call Us! BVD17067-BK-100 7/.67 HT90 0.6/1KV :BLACK Call Us! BVD17067-BK-1000 7/.67 HT90 0.6/1KV :BLACK Call Us! BVD17067-BK-500 7/.67 HT90 0.6/1KV :BLACK Call Us! BVD17067-BK-V 7/.67 HT90 0.6/1KV :BLACK Call Us! BVD17067-GN-100 7/.67 HT90 0.6/1KV :GREEN Call Us! BVD17067-GNYW-100 7/.67 HT90 0.6/1KV :GREEN/YELLOW Call Us! BVD17067-GNYW-500 7/.67 HT90 0.6/1KV :GREEN/YELLOW Call Us! BVD17067-GNYW-V 7/.67 HT90 0.6/1KV :GREEN/YELLOW Call Us! BVD17067-LB-100 7/.67 HT90 0.6/1KV :BLUE Call Us! BVD17067-LB-500 7/.67 HT90 0.6/1KV :BLUE Call Us! BVD17067-NN-100 7/.67 HT90 0.6/1KV :BROWN Call Us! BVD17067-NN-500 7/.67 HT90 0.6/1KV :BROWN Call Us! BVD17067-OR-100 7/.67 HT90 0.6/1KV :ORANGE Call Us! BVD17067-RD-100 7/.67 HT90 0.6/1KV :RED Call Us! BVD17067-RD-500 7/.67 HT90 0.6/1KV :RED Call Us! BVD17067-RD-V 7/.67 HT90 0.6/1KV :RED Call Us! BVD17067-SY-100 7/.67 HT90 0.6/1KV :GREY Call Us! BVD17067-SY-500 7/.67 HT90 0.6/1KV :GREY Call Us! BVD17067-VL-100 7/.67 HT90 0.6/1KV :VIOLET Call Us! BVD17067-WH-100 7/.67 HT90 0.6/1KV :WHITE Call Us! BVD17067-WH-500 7/.67 HT90 0.6/1KV :WHITE Call Us! BVD17067-YW-100 7/.67 HT90 0.6/1KV :YELLOW Call Us! BVD17085-BK-100 7/.85 HT90 0.6/1KV :BLACK Call Us! BVD17085-BK-500 7/.85 HT90 0.6/1KV :BLACK Call Us! BVD17085-GNYW-100 7/.85 HT90 0.6/1KV :GREEN/YELLOW Call Us! BVD17085-GNYW-500 7/.85 HT90 0.6/1KV :GREEN/YELLOW Call Us! BVD17085-LB-100 7/.85 HT90 0.6/1KV :BLUE Call Us! BVD17085-RD-100 7/.85 HT90 0.6/1KV :RED Call Us! BVD17085-RD-500 7/.85 HT90 0.6/1KV :RED Call Us! BVD17085-SY-100 7/.85 HT90 0.6/1KV :GREY Call Us! BVD17085-WH-100 7/.85 HT90 0.6/1KV :WHITE Call Us! BVD17085-YW-100 7/.85 HT90 0.6/1KV :YELLOW Call Us! BVD17104-BK-100 7/1.04 HT90 0.6/1kV :BLACK Call Us! BVD17104-GNYW-100 7/1.04 HT90 0.6/1kV :GREEN/YELLOW Call Us! BVD17104-GNYW-500 7/1.04 HT90 0.6/1kV :GREEN/YELLOW Call Us! BVD17104-LB-100 7/1.04 HT90 0.6/1kV :BLUE Call Us! BVD17104-RD-100 7/1.04 HT90 0.6/1kV :RED Call Us! BVD17104-WH-100 7/1.04 HT90 0.6/1kV :WHITE Call Us! BVD17135-BK-100 7/1.35 HT90 0.6/1KV :BLACK Call Us! BVD17135-GNYW-100 7/1.35 HT90 0.6/1KV :GREEN/YELLOW Call Us! BVD17135-LB-100 7/1.35 HT90 0.6/1KV :BLUE Call Us! BVD17135-RD-100 7/1.35 HT90 0.6/1KV :RED Call Us! BVD17135-WH-100 7/1.35 HT90 0.6/1KV :WHITE Call Us! BVD17135-YW-100 7/1.35 HT90 0.6/1KV :YELLOW Call Us! BVD17170-BK-100 7/1.70 HT90 0.6/1KV :BLACK Call Us! BVD17170-BK-500 7/1.70 HT90 0.6/1KV :BLACK Call Us! BVD17170-GNYW-100 7/1.70 HT90 0.6/1KV :GREEN/YELLOW Call Us! BVD17170-LB-100 7/1.70 HT90 0.6/1KV :BLUE Call Us! BVD17170-RD-100 7/1.70 HT90 0.6/1KV :RED Call Us! BVD17170-WH-100 7/1.70 HT90 0.6/1KV :WHITE Call Us!

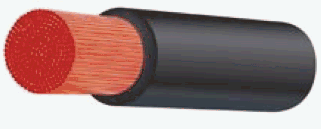

Flexible Power Cable

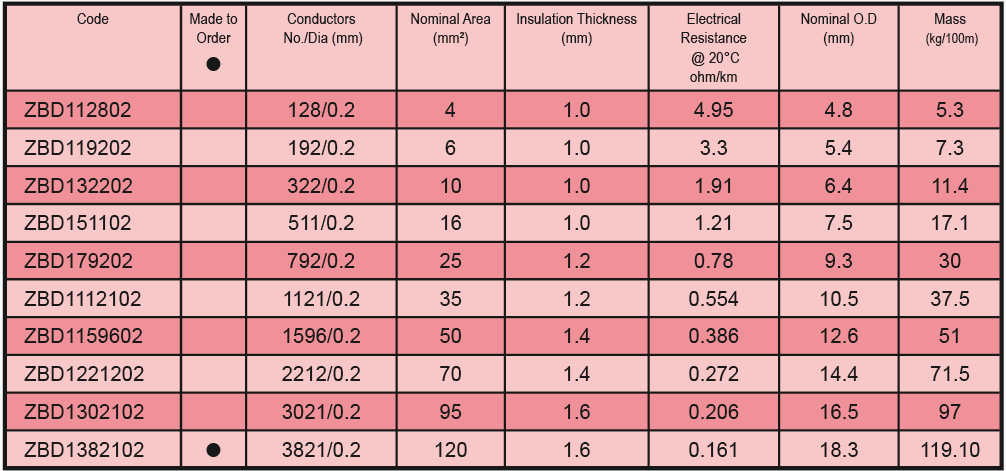

Single Core V90HT (105°C)
PVC Insulated single core unprotected to AS 5000.1 0.6/1KV
APPLICATIONS: Power cable 0.6/1KV.
CONDUCTOR: Flexible plain copper wire stranding. Class 5 to AS1125
INSULATION: V90HT PVC to AS 5000.1 & AS3808
COLOUR: Black, red, blue, white, green/yellow.
PACK: 100 metres, bulk drum.Refer AS3008 For Application Derating Factors
* Refer to Section 9 for Amp Ratings
ZBD1112102-BK-100 35MMSQ v90ht 35mmsq:BLACK Call Us! ZBD1112102-BK-30 35MMSQ v90ht 35mmsq:BLACK Call Us! ZBD1112102-BK-V 35MMSQ v90ht 35mmsq:BLACK Call Us! ZBD1112102-GNYW-100 35MMSQ v90ht 35mmsq:GREEN/YELLOW Call Us! ZBD1112102-GNYW-V 35MMSQ v90ht 35mmsq:GREEN/YELLOW Call Us! ZBD1112102-LB-100 35MMSQ v90ht 35mmsq:BLUE Call Us! ZBD1112102-RD-100 35MMSQ v90ht 35mmsq:RED Call Us! ZBD1112102-RD-V 35MMSQ v90ht 35mmsq:RED Call Us! ZBD1112102-WH-100 35MMSQ v90ht 35mmsq:WHITE Call Us! ZBD112802-BK-100 128/.2 4mmsq v90ht :BLACK Call Us! ZBD112802-GNYW-100 128/.2 4mmsq v90ht :GREEN/YELLOW Call Us! ZBD112802-LB-100 128/.2 4mmsq v90ht :BLUE Call Us! ZBD112802-RD-100 128/.2 4mmsq v90ht :RED Call Us! ZBD112802-WH-100 128/.2 4mmsq v90ht :WHITE Call Us! ZBD1159602-BK-100 50MMSQ v90ht 50mmsq:BLACK Call Us! ZBD1159602-BK-30 50MMSQ v90ht 50mmsq:BLACK Call Us! ZBD1159602-BK-V 50MMSQ v90ht 50mmsq:BLACK Call Us! ZBD1159602-GNYW-100 50MMSQ v90ht 50mmsq:GREEN/YELLOW Call Us! ZBD1159602-LB-100 50MMSQ v90ht 50mmsq:BLUE Call Us! ZBD1159602-LB-V 50MMSQ v90ht 50mmsq:BLUE Call Us! ZBD1159602-RD-100 50MMSQ v90ht 50mmsq:RED Call Us! ZBD1159602-RD-V 50MMSQ v90ht 50mmsq:RED Call Us! ZBD1159602-WH-100 50MMSQ v90ht 50mmsq:WHITE Call Us! ZBD1159602-WH-V 50MMSQ v90ht 50mmsq:WHITE Call Us! ZBD119202-BK-100 192/.2 6mmsq v90ht :BLACK Call Us! ZBD119202-BK-V 192/.2 6mmsq v90ht :BLACK Call Us! ZBD119202-GNYW-100 192/.2 6mmsq v90ht :GREEN/YELLOW Call Us! ZBD119202-LB-100 192/.2 6mmsq v90ht :BLUE Call Us! ZBD119202-RD-100 192/.2 6mmsq v90ht :RED Call Us! ZBD119202-RD-V 192/.2 6mmsq v90ht :RED Call Us! ZBD119202-WH-100 192/.2 6mmsq v90ht :WHITE Call Us! ZBD1221202-BK-100 70MMSQ v90ht 70mmsq:BLACK Call Us! ZBD1221202-BK-50 70MMSQ v90ht 70mmsq:BLACK Call Us! ZBD1221202-BK-V 70MMSQ v90ht 70mmsq:BLACK Call Us! ZBD1221202-GNYW-100 70MMSQ v90ht 70mmsq:GREEN/YELLOW Call Us! ZBD1221202-GNYW-V 70MMSQ v90ht 70mmsq:GREEN/YELLOW Call Us! ZBD1221202-LB-100 70MMSQ v90ht 70mmsq:BLUE Call Us! ZBD1221202-RD-100 70MMSQ v90ht 70mmsq:RED Call Us! ZBD1221202-RD-V 70MMSQ v90ht 70mmsq:RED Call Us! ZBD1221202-WH-100 70MMSQ v90ht 70mmsq:WHITE Call Us! ZBD1302102-BK-100 95MMSQ v90ht :BLACK Call Us! ZBD1302102-BK-V 95MMSQ v90ht :BLACK Call Us! ZBD1302102-GNYW-100 95MMSQ v90ht :GREEN/YELLOW Call Us! ZBD1302102-LB-100 95MMSQ v90ht :BLUE Call Us! ZBD1302102-RD-100 95MMSQ v90ht :RED Call Us! ZBD1302102-WH-100 95MMSQ v90ht :WHITE Call Us! ZBD132202-BK-100 10MMSQ v90ht :BLACK Call Us! ZBD132202-GNYW-100 10MMSQ v90ht :GREEN/YELLOW Call Us! ZBD132202-LB-100 10MMSQ v90ht :BLUE Call Us! ZBD132202-LB-V 10MMSQ v90ht :BLUE Call Us! ZBD132202-RD-100 10MMSQ v90ht :RED Call Us! ZBD132202-RD-500 10MMSQ v90ht :RED Call Us! ZBD132202-WH-100 10MMSQ v90ht :WHITE Call Us! ZBD1382102-BK-100 120mmsq S/C 0.6/1KV :BLACK Call Us! ZBD1382102-BK-50 120mmsq S/C 0.6/1KV :BLACK Call Us! ZBD1382102-BK-V 120mmsq S/C 0.6/1KV :BLACK Call Us! ZBD1382102-GNYW-V 120mmsq S/C 0.6/1KV :GREEN/YELLOW Call Us! ZBD1382102-RD-100 120mmsq S/C 0.6/1KV :RED Call Us! ZBD151102-BK-100 16MMSQ V90HT :BLACK Call Us! ZBD151102-BK-500 16MMSQ V90HT :BLACK Call Us! ZBD151102-GNYW-100 16MMSQ V90HT :GREEN/YELLOW Call Us! ZBD151102-LB-100 16MMSQ V90HT :BLUE Call Us! ZBD151102-LB-V 16MMSQ V90HT :BLUE Call Us! ZBD151102-RD-100 16MMSQ V90HT :RED Call Us! ZBD151102-RD-500 16MMSQ V90HT :RED Call Us! ZBD151102-VL-100 16MMSQ V90HT :VIOLET Call Us! ZBD151102-WH-100 16MMSQ V90HT :WHITE Call Us! ZBD179202-BK-100 25MMSQ V90HT :BLACK Call Us! ZBD179202-BK-V 25MMSQ V90HT :BLACK Call Us! ZBD179202-GNYW-100 25MMSQ V90HT :GREEN/YELLOW Call Us! ZBD179202-LB-100 25MMSQ V90HT :BLUE Call Us! ZBD179202-LB-500 25MMSQ V90HT :BLUE Call Us! ZBD179202-RD-100 25MMSQ V90HT :RED Call Us! ZBD179202-WH-100 25MMSQ V90HT :WHITE Call Us!
Flexible Power Cable

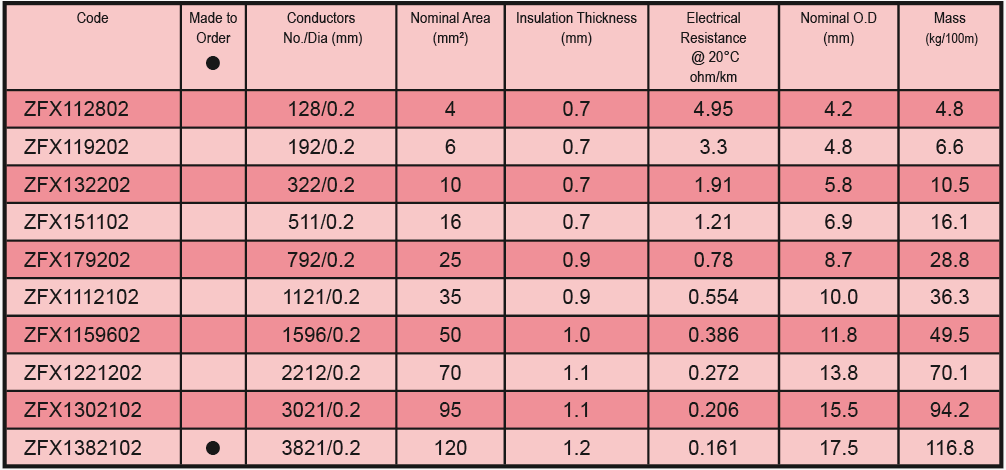

Single Core X-HF-110
Insulated single core unprotected to AS 5000.1 0.6/1KV
APPLICATIONS: Power cable 0.6/1KV.
CONDUCTOR: Flexible plain copper wire stranding. Class 5 to AS1125
INSULATION: X-HF-110 to AS 5000.1 & AS3808
COLOUR: Black, red, blue, white, green/yellow.
PACK: 100 metres, bulk drum.
Flame Retardant
Non HalogenNOTE: Refer AS3008 For Application Derating Factors
* Refer to Section 9.6 for Amp Ratings
ZFX1112102-BK-100 1121/.2XLFR 110C :BLACK Call Us! ZFX1112102-GNYW-100 1121/.2XLFR 110C :GREEN/YELLOW Call Us! ZFX1112102-LB-100 1121/.2XLFR 110C :BLUE Call Us! ZFX1112102-RD-100 1121/.2XLFR 110C :RED Call Us! ZFX1112102-WH-100 1121/.2XLFR 110C :WHITE Call Us! ZFX1159602-BK-100 1596/.2XLFR 110C :BLACK Call Us! ZFX1159602-GNYW-100 1596/.2XLFR 110C :GREEN/YELLOW Call Us! ZFX1159602-LB-100 1596/.2XLFR 110C :BLUE Call Us! ZFX1159602-LB-V 1596/.2XLFR 110C :BLUE Call Us! ZFX1159602-RD-100 1596/.2XLFR 110C :RED Call Us! ZFX1159602-WH-100 1596/.2XLFR 110C :WHITE Call Us! ZFX1221202-BK-100 2212/.2XLFR 110C :BLACK Call Us! ZFX1302102-RD-100 3021/.2XLFR 110C :RED Call Us! ZFX132202-BK-100 10MM2 XLEP 110C :BLACK Call Us! ZFX132202-GNYW-100 10MM2 XLEP 110C :GREEN/YELLOW Call Us! ZFX132202-LB-100 10MM2 XLEP 110C :BLUE Call Us! ZFX132202-RD-100 10MM2 XLEP 110C :RED Call Us! ZFX132202-WH-100 10MM2 XLEP 110C :WHITE Call Us! ZFX151102-BK-100 511/.2XLFR 110C :BLACK Call Us! ZFX151102-GNYW-100 511/.2XLFR 110C :GREEN/YELLOW Call Us! ZFX151102-LB-100 511/.2XLFR 110C :BLUE Call Us! ZFX151102-RD-100 511/.2XLFR 110C :RED Call Us! ZFX151102-WH-100 511/.2XLFR 110C :WHITE Call Us! ZFX179202-BK-100 792/.2 XLFR 110C :BLACK Call Us! ZFX179202-GNYW-100 792/.2 XLFR 110C :GREEN/YELLOW Call Us! ZFX179202-LB-100 792/.2 XLFR 110C :BLUE Call Us! ZFX179202-RD-100 792/.2 XLFR 110C :RED Call Us! ZFX179202-RD-V 792/.2 XLFR 110C :RED Call Us! ZFX179202-WH-100 792/.2 XLFR 110C :WHITE Call Us!
Building Wires

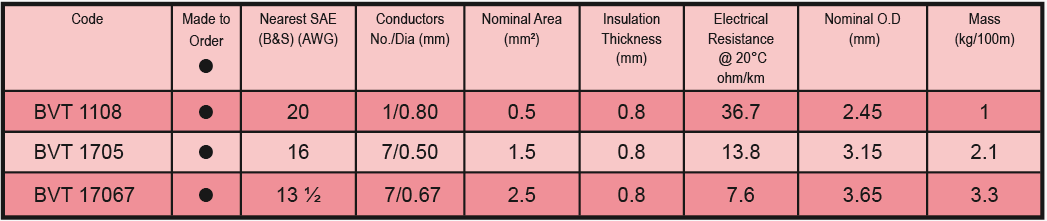

Single Core V90HT (105°C) Tinned
PVC Insulated to AS 5000.1 0.6/1KV
APPLICATIONS: 0.6/1 KV tinned power cable.
CONDUCTOR: Tinned copper wire.
INSULATION: 105 C PVC to AS 5000.1 & AS3808.
COLOUR: Black, blue, brown, orange, violet, red, white, grey.
PACK: 300 or 500 metres.NOTE: (i) Amp Ratings – See Technical Tables, Section 9, Or Refer To As 3008.1
BVT1108-BK-1000 1/.8 TCW HT90 .6/1kV:BLACK Call Us! BVT1108-LB-4000 1/.8 TCW HT90 .6/1kV:BLUE Call Us! BVT1108-NN-1000 1/.8 TCW HT90 .6/1kV:BROWN Call Us! BVT1705-SY-100 7/.5 TCW HT90 .6/1kV:GREY Call Us! Building Wires

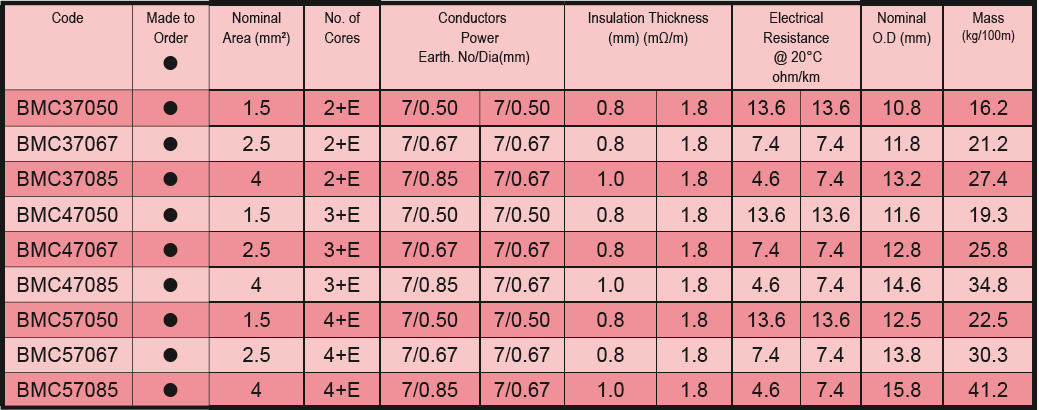

CIRCULAR Plus Earth
PVC Ins. and Sheath to AS 5000.1 0.6/1KV
APPLICATIONS: Power cable 0.6/1 KV.
CONDUCTOR: Plain copper wire.
INSULATION: 75°C PVC to AS 5000.1 &AS3808.
CORE COLOURS: 2 core+ earth – red, black, green/yellow.
3 core + earth – red, white, blue, green/yellow.
4 core + earth – red, white, blue, black, green/yellow.
SHEATH: Orange 75°C PVC to AS 5000.1 & AS3808.
PACK: 100 metre or bulk drum.NOTE: (i) Amp Ratings – See Technical Tables, Section 9, Or Refer To As 3008.1
BMC Call Us!
