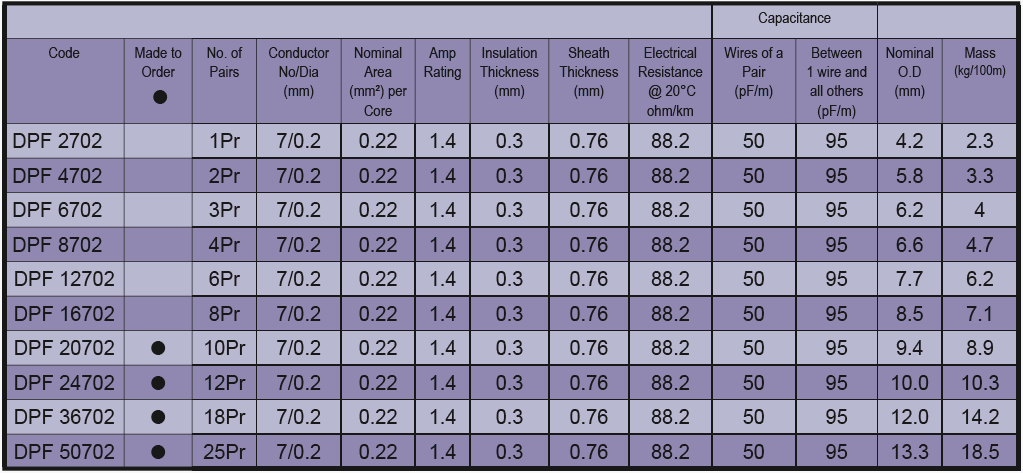

Multi-pair, overall screen RS 422
Austel approved. CCL A93/CA/0111
APPLICATIONS: Data communication, balanced mode, low capacitance.
CONDUCTOR: Tinned copper wire.
INSULATION: Data grade polypropylene 75°C. To S008
SCREEN: Overall aluminium/polyester laminate tape screen with a 7/0.20 mm
tinned copper drain wire.
SHEATH: 75°C PVC to AS 3808. and S008
SHEATH COLOUR: Grey.
PACK: 100 or 500 metres, bulk drum.
AUSTRALIAN COMMUNICATION AUTHORITY: ACA N1155 (TYCAB)NOTE: (i) Maximum Working Voltage 300 Volts
(ii) Not Suitable For Connection To Mains Power Supply.
| DPF12702-SY-100 | 6PR 7/.2 PLP SCREEN :GREY | Call Us! | |
| DPF12702-SY-500 | 6PR 7/.2 PLP SCREEN :GREY | Call Us! | |
| DPF16702-SY-100 | 8PR 7/.2 PLP SCREEN :GREY | Call Us! | |
| DPF20702-SY-100 | 10PR 7/.2 PLP SCREEN:GREY | Call Us! | |
| DPF24702-SY-100 | 12PR 7/.2 PLP SCREEN:GREY | Call Us! | |
| DPF2702-SY-100 | 1PR 7/.2 PLP SCREEN :GREY | Call Us! | |
| DPF2702-SY-250 | 1PR 7/.2 PLP SCREEN :GREY | Call Us! | |
| DPF2702-SY-300(B) | 1PR 7/.2 PLP SCREEN :GREY | Call Us! | |
| DPF2702-SY-500 | 1PR 7/.2 PLP SCREEN :GREY | Call Us! | |
| DPF4702-BK-100 | 2PR 7/.2 PLP SCREEN :BLACK | Call Us! | |
| DPF4702-SY-100 | 2PR 7/.2 PLP SCREEN :GREY | Call Us! | |
| DPF4702-SY-250 | 2PR 7/.2 PLP SCREEN :GREY | Call Us! | |
| DPF4702-SY-500 | 2PR 7/.2 PLP SCREEN :GREY | Call Us! | |
| DPF4702-SY-V | 2PR 7/.2 PLP SCREEN :GREY | Call Us! | |
| DPF6702-SY-100 | 3PR 7/.2 PLP SCREEN :GREY | Call Us! | |
| DPF6702-SY-250 | 3PR 7/.2 PLP SCREEN :GREY | Call Us! | |
| DPF6702-SY-500 | 3PR 7/.2 PLP SCREEN :GREY | Call Us! | |
| DPF8702-SY-100 | 4PR 7/.2 PLP SCREEN :GREY | Call Us! | |
| DPF8702-SY-250 | 4PR 7/.2 PLP SCREEN :GREY | Call Us! | |
| DPF8702-SY-500 | 4PR 7/.2 PLP SCREEN :GREY | Call Us! |
Data Cables
MULTI-WIRE

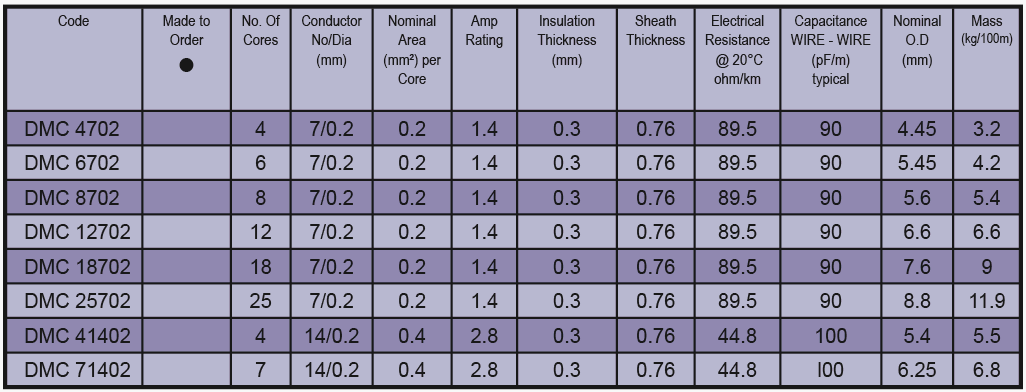

Multi-Wire, Overall Screen RS 232
AUSTRALIAN COMMUNICATION AUTHORITY: ACA N1155 (TYCAB) (Austel approved)
CCL A93/CA/0122 - 14/.2
CCL A93/CA/0123 - 7/.2
APPLICATIONS: Data communication, interface cable.
CONDUCTOR: Plain copper wire.
INSULATION: Data grade 75°c PVC to AS 3808. and S008
SCREEN: Overall aluminium/polyester laminate tape with a 7/0.20mm tinned copper
drain wire.
SHEATH: 75°C PVC to AS 3808 and S008
SHEATH COLOUR: Grey.
PACK: 100 or 500 metres, bulk drum.NOTE: (i) Maximum Working Voltage 300 Volts.
(ii) Not Suitable For Connection To Mains Power Supply.
DMC12702-SY-100 12x7/.2 SCREENED :GREY Call Us! DMC25702-SY-100 25x7/.2 SCREENED :GREY Call Us! DMC25702-SY-500 25x7/.2 SCREENED :GREY Call Us! DMC3BAA-NN-500 3X7/.25 SCREEN SPEC :BROWN Call Us! DMC3BAA-VL-500 3X7/.25 SCREEN SPEC :VIOLET Call Us! DMC41402-SY-100 4x14/.2 SCREENED :GREY Call Us! DMC41402-SY-250 4x14/.2 SCREENED :GREY Call Us! DMC41402-SY-500 4x14/.2 SCREENED :GREY Call Us! DMC4702-SY-100 4x7/.2 SCREENED :GREY Call Us! DMC4702-SY-250 4x7/.2 SCREENED :GREY Call Us! DMC4702-SY-500 4x7/.2 SCREENED :GREY Call Us! DMC5702-SY-100 5x7/.2 SCREENED DATA:GREY Call Us! DMC6702-SY-100 6x7/.2 SCREENED :GREY Call Us! DMC6702-SY-250 6x7/.2 SCREENED :GREY Call Us! DMC6702-SY-300(B) 6x7/.2 SCREENED :GREY Call Us! DMC6702-SY-500 6x7/.2 SCREENED :GREY Call Us! DMC71402-SY-100 7x14/.2 SCREENED DAT:GREY Call Us! DMC71402-SY-250 7x14/.2 SCREENED DAT:GREY Call Us! DMC71402-SY-500 7x14/.2 SCREENED DAT:GREY Call Us! DMC8702-SY-100 8x7/.2 SCREENED DATA:GREY Call Us! DMC8702-SY-500 8x7/.2 SCREENED DATA:GREY Call Us! Data Cables

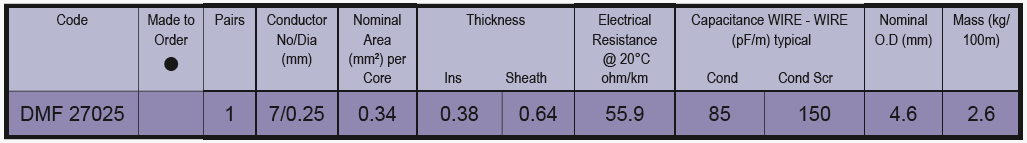

SINGLE PAIR 22AWG
Single Pair, Overall Screen
(Carol Cables Equiv 2514, Belden Equiv 8761)
APPLICATIONS: Data communication, industrial equipment control.
CONDUCTOR: Tinned copper wire.
INSULATION: Data grade polyethylene 75°C to S008.
PAIR COLOURS: Black and white.
SCREEN: Overall aluminium/polyester laminate tape screen with a 7/0.25 mm tinned
copper drain wire.
SHEATH: 75°C PVC to AS 3808 and S008
SHEATH COLOUR: Grey.
PACK: 100 or 500 metres.
ACA N1155 (AUSTEL APPROVAL: CCL 95/CA/0053)NOTE: Not Suitable For Connection To Mains Power Supply.
DMF27025-BG-100 2x7/.25 LDPE/PVC SCR:BEIGE Call Us! DMF27025-LL-300-TAC(B) 2x7/.25 LDPE/PVC SCR:LIGHT BLUE Call Us! DMF27025-SY-100 2x7/.25 LDPE/PVC SCR:GREY Call Us! DMF27025-SY-250 2x7/.25 LDPE/PVC SCR:GREY Call Us! DMF27025-SY-500 2x7/.25 LDPE/PVC SCR:GREY Call Us! Data Cables

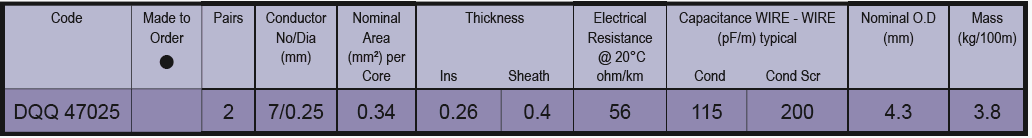

INDIVIDUAL SCREEN 22AWG
Multi Pair Individual Screen (Belden 8723 equiv)
ACA (Austel approved)
APPLICATIONS: Data communication and industrial equipment control.
CONDUCTOR: Tinned copper wire
INSULATION: Data grade polypropylene 75°C to S008
PAIR COLOURS: Pair 1 black and red.
Pair 2 green and white.
SCREEN: Individual aluminium/polyester laminate tape screens with a common
7/0.25 mm tinned copper drain wire.
SHEATH: 75°C PVC to AS 3808 and S008.
SHEATH COLOUR: Grey.
PACK: 100, 250 or 500 metres.
ACA N1155 (AUSTEL APPROVAL: A93/CA/0110.)NOTE: (i) Maximum Working Voltage 300 Volts.
(ii) Not Suitable For Connection To Mains Power Supply.
DQQ4/7067-BK-100 2PR 7/.25SCR + 7/.67:BLACK Call Us! DQQ4/7067-BK-250 2PR 7/.25SCR + 7/.67:BLACK Call Us! DQQ4/7067-BK-500 2PR 7/.25SCR + 7/.67:BLACK Call Us! DQQ47025-BK-100 2PR 7/.25PLP IND SCR:BLACK Call Us! DQQ47025-SY-100 2PR 7/.25PLP IND SCR:GREY Call Us! DQQ47025-SY-250 2PR 7/.25PLP IND SCR:GREY Call Us! DQQ47025-SY-300(B) 2PR 7/.25PLP IND SCR:GREY Call Us! DQQ47025-SY-500 2PR 7/.25PLP IND SCR:GREY Call Us! Data Cables

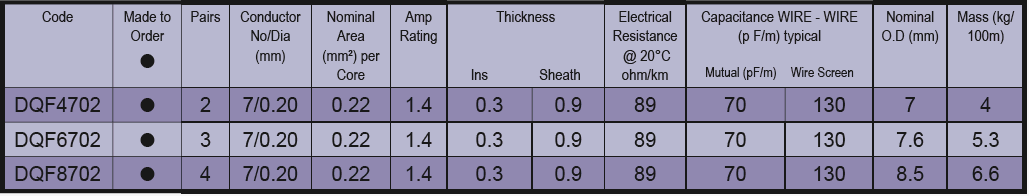

INDIVIDUAL AND OVERALL SCREEN 24 AWG
Multi Pair Individual and Overall Screen
APPLICATIONS: Data communication, signal isolation.
CONDUCTOR: Tinned copper wire.
INSULATION: Data grade polypropylene 75°C. to AS3808
PAIR COLOURS: Pair 1: White/blue & blue.
Pair 2: White/orange & orange.
Pair 3: White/green & green.
Pair 4: White/brown & brown.
SCREENS: Individual and overall aluminium/polyester laminate tape screens with 7/
0.20 mm tinned copper drain wires.
SHEATH: 75°C PVC to AS 3808
SHEATH COLOUR: Grey.
PACK: 100 or 500 metres.
ACA on requestNOTE: (i) Maximum Working Voltage 300 Volts.
(ii) Not Suitable For Connection To Mains Power Supply.
DQF Call Us! Data Cables

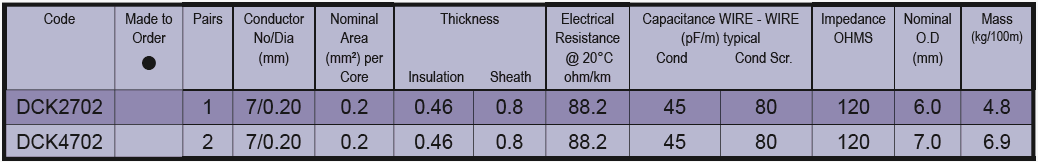

SCREEN AND BRAID 24 AWG
RS485
Overall Screen and Braid, Austel Approved, (Equiv 1pr 9841, 2pr 9842)
APPLICATIONS: Data communication, low capacitance.
CONDUCTOR: Tinned copper wire.
INSULATION: Data grade polyethylene 75°C. to S008
PAIR COLOURS: Black and white, red and green
SCREEN: Overall aluminium/polyester laminate tape screen with a 7/0.25 tinned
copper drain wire.
BRAID: Tinned copper wire, 90% coverage.
SHEATH: 75°C PVC to AS 3808 and S008
SHEATH COLOUR: Grey.
PACK: 250 or 500 metres.
ACA N1155 (AUSTEL APPROVAL: A93/CA/0112).NOTE: (i) Maximum Working Voltage 300 Volts.
(ii) Not Suitable For Connection To Mains Power Supply.
DCK2702-SY-100 1PR 7/.2 PE SCR+BRD :GREY Call Us! DCK2702-SY-500 1PR 7/.2 PE SCR+BRD :GREY Call Us! DCK4702-SY-100 2PR 7/.2LDPE SCR+BRD:GREY Call Us! DCK4702-SY-500 2PR 7/.2LDPE SCR+BRD:GREY Call Us! Instrumentation Cables

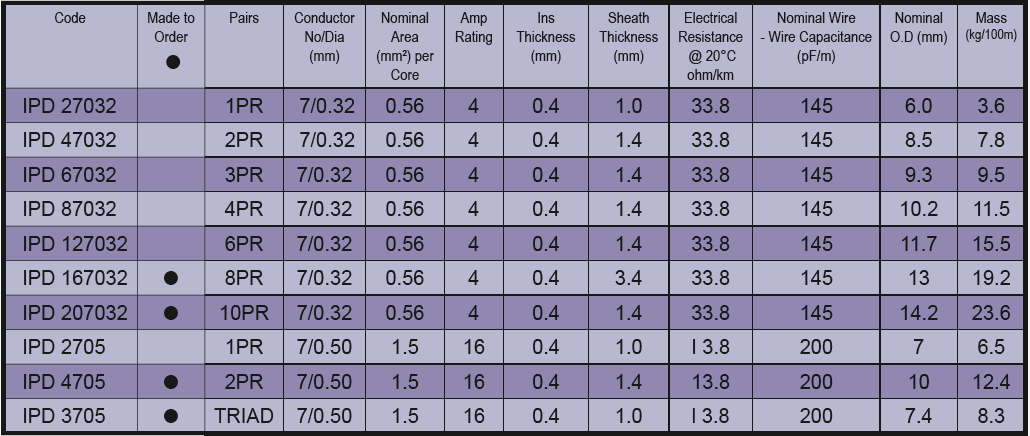

OVERALL SCREEN
Overall Screen, pairs and triples
APPLICATIONS: Interconnection of electronic equipment and instruments.
CONDUCTOR: Plain copper wire.
INSULATION: V90HT (105oC) to AS 3808
PAIR COLOUR: Black and white numbered.
TRIAD COLOUR: Red, white and black.
SCREEN: Overall aluminium/polyester tape screen with a 7/0.25
tinned copper drain wire.
SHEATH: V90HT (105°C) PVC to AS3808
SHEATH COLOUR: Black.
PACK: 100 or 500 metres, bulk drum.NOTE: (i) Maximum Working Voltage 600 volts.
(ii) Not Suitable For Connection To Mains Power Supply.
IPD127032-BK-V 6Pr 7/.32 Scr Instru:BLACK Call Us! IPD207032-BK-100 10PR 7/.32 Scr Instr:BLACK Call Us! IPD207032-BK-V 10PR 7/.32 Scr Instr:BLACK Call Us! IPD27032-BK-100 1PR 7/.32 Screened :BLACK Call Us! IPD27032-BK-500 1PR 7/.32 Screened :BLACK Call Us! IPD2705-BK-100 1Pr 7/.50 Scr Instru:BLACK Call Us! IPD2705-BK-500 1Pr 7/.50 Scr Instru:BLACK Call Us! IPD3705-BK-100 1 TRIAD 7/.5 SCR INS:BLACK Call Us! IPD3705-BK-500 1 TRIAD 7/.5 SCR INS:BLACK Call Us! IPD47032-BK-100 2Pr 7/.32 Scr Instru:BLACK Call Us! IPD47032-BK-500 2Pr 7/.32 Scr Instru:BLACK Call Us! IPD67032-BK-100 3Pr 7/.32 Scr Instr :BLACK Call Us! IPD67032-BK-1000 3Pr 7/.32 Scr Instr :BLACK Call Us! IPD87032-BK-100 4Pr 7/.32 Scr Instru:BLACK Call Us! IPD87032-BK-500 4Pr 7/.32 Scr Instru:BLACK Call Us! Flexible
Instrumentation

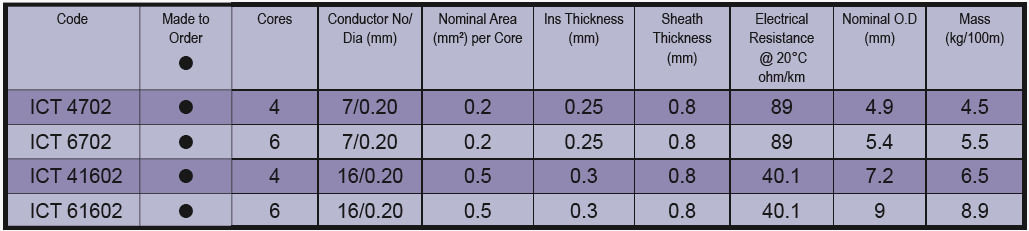

BRAID SCREEN
Braid Screen, multi wire
APPLICATIONS: Interconnection of electronic equipment and instruments.
CONDUCTOR: Tinned copper wire.
INSULATION: V90HT (105°C) PVC to AS 3808.
CORE COLOUR: 1. Red
2. Blue 3. Green
4. Yellow 5. White 6. Black
SCREEN: Overall copper wire braid, 85% coverage.
SHEATH: V90HT (105°C) PVC to AS 3808 .
PACK: 300 or 500 metres.NOTE: (i) Maximum Working Voltage 300 Volts.
(ii) Not Suitable For Connection To Mains Power Supply.
ICT6702-SY-100 6X7/.2 TCW LV BRAID :GREY Call Us!
