Flexible Cables
SINGLE CORE

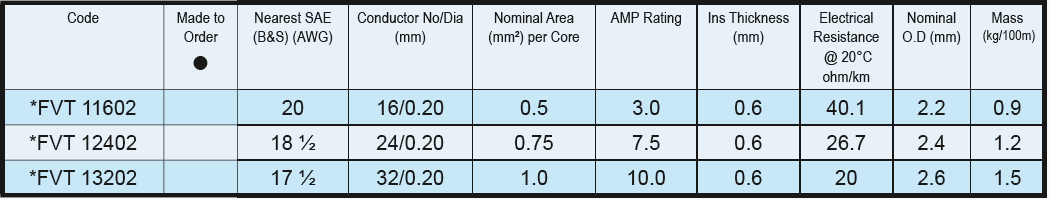

Single Core V90 HT (V105) 250/440 Volt
PVC Insulated
APPLICATIONS: Wiring of communication, electronic equipment and switchboards.
CONDUCTOR: Tinned copper wire.
INSULATION: V90HT (105°C) PVC to AS3808
COLOUR: Red, blue, green, yellow, white, black, brown, violet, orange.
PACK: 100, 500, 1000 metres.
AS3191NOTE: *Available in U.L. Style 10237 By Request
- Available in Plain Copper wire By Request
FVT11602-BK-100 16/.2 TCW HT90 240V :BLACK Call Us! FVT11602-BK-1000 16/.2 TCW HT90 240V :BLACK Call Us! FVT11602-GN-100 16/.2 TCW HT90 240V :GREEN Call Us! FVT11602-GN-1000 16/.2 TCW HT90 240V :GREEN Call Us! FVT11602-GNYW-100 16/.2 TCW HT90 240V :GREEN/YELLOW Call Us! FVT11602-GNYW-1000 16/.2 TCW HT90 240V :GREEN/YELLOW Call Us! FVT11602-LB-100 16/.2 TCW HT90 240V :BLUE Call Us! FVT11602-LB-1000 16/.2 TCW HT90 240V :BLUE Call Us! FVT11602-LB-500 16/.2 TCW HT90 240V :BLUE Call Us! FVT11602-LL-100 16/.2 TCW HT90 240V :LIGHT BLUE Call Us! FVT11602-NN-100 16/.2 TCW HT90 240V :BROWN Call Us! FVT11602-NN-1000 16/.2 TCW HT90 240V :BROWN Call Us! FVT11602-OR-100 16/.2 TCW HT90 240V :ORANGE Call Us! FVT11602-OR-1000 16/.2 TCW HT90 240V :ORANGE Call Us! FVT11602-OR-V 16/.2 TCW HT90 240V :ORANGE Call Us! FVT11602-PK-100 16/.2 TCW HT90 240V :PINK Call Us! FVT11602-PK-1000 16/.2 TCW HT90 240V :PINK Call Us! FVT11602-RD-100 16/.2 TCW HT90 240V :RED Call Us! FVT11602-RD-1000 16/.2 TCW HT90 240V :RED Call Us! FVT11602-SY-100 16/.2 TCW HT90 240V :GREY Call Us! FVT11602-SY-1000 16/.2 TCW HT90 240V :GREY Call Us! FVT11602-VL-100 16/.2 TCW HT90 240V :VIOLET Call Us! FVT11602-VL-1000 16/.2 TCW HT90 240V :VIOLET Call Us! FVT11602-WH-100 16/.2 TCW HT90 240V :WHITE Call Us! FVT11602-WH-1000 16/.2 TCW HT90 240V :WHITE Call Us! FVT11602-YW-100 16/.2 TCW HT90 240V :YELLOW Call Us! FVT11602-YW-1000 16/.2 TCW HT90 240V :YELLOW Call Us! FVT12402-BK-100 24/.2 TCW HT90 240V :BLACK Call Us! FVT12402-BK-1000 24/.2 TCW HT90 240V :BLACK Call Us! FVT12402-BKRD-100 24/.2 TCW HT90 240V :BLACK/RED Call Us! FVT12402-GN-100 24/.2 TCW HT90 240V :GREEN Call Us! FVT12402-GN-1000 24/.2 TCW HT90 240V :GREEN Call Us! FVT12402-GN-500 24/.2 TCW HT90 240V :GREEN Call Us! FVT12402-GNYW-100 24/.2 TCW HT90 240V :GREEN/YELLOW Call Us! FVT12402-GNYW-1000 24/.2 TCW HT90 240V :GREEN/YELLOW Call Us! FVT12402-GNYW-500 24/.2 TCW HT90 240V :GREEN/YELLOW Call Us! FVT12402-LB-100 24/.2 TCW HT90 240V :BLUE Call Us! FVT12402-LB-1000 24/.2 TCW HT90 240V :BLUE Call Us! FVT12402-LB-500 24/.2 TCW HT90 240V :BLUE Call Us! FVT12402-LBRD-100 24/.2 TCW HT90 240V :BLUE/RED Call Us! FVT12402-LBWH-100 24/.2 TCW HT90 240V :BLUE/WHITE Call Us! FVT12402-LL-100 24/.2 TCW HT90 240V :LIGHT BLUE Call Us! FVT12402-LL-V 24/.2 TCW HT90 240V :LIGHT BLUE Call Us! FVT12402-NN-100 24/.2 TCW HT90 240V :BROWN Call Us! FVT12402-NN-1000 24/.2 TCW HT90 240V :BROWN Call Us! FVT12402-NN-500 24/.2 TCW HT90 240V :BROWN Call Us! FVT12402-OR-100 24/.2 TCW HT90 240V :ORANGE Call Us! FVT12402-OR-1000 24/.2 TCW HT90 240V :ORANGE Call Us! FVT12402-OR-500 24/.2 TCW HT90 240V :ORANGE Call Us! FVT12402-PK-100 24/.2 TCW HT90 240V :PINK Call Us! FVT12402-PK-1000 24/.2 TCW HT90 240V :PINK Call Us! FVT12402-RD-100 24/.2 TCW HT90 240V :RED Call Us! FVT12402-RD-1000 24/.2 TCW HT90 240V :RED Call Us! FVT12402-SY-100 24/.2 TCW HT90 240V :GREY Call Us! FVT12402-SY-1000 24/.2 TCW HT90 240V :GREY Call Us! FVT12402-VL-100 24/.2 TCW HT90 240V :VIOLET Call Us! FVT12402-VL-1000 24/.2 TCW HT90 240V :VIOLET Call Us! FVT12402-WH-100 24/.2 TCW HT90 240V :WHITE Call Us! FVT12402-WH-1000 24/.2 TCW HT90 240V :WHITE Call Us! FVT12402-WH-500 24/.2 TCW HT90 240V :WHITE Call Us! FVT12402-YW-100 24/.2 TCW HT90 240V :YELLOW Call Us! FVT12402-YW-1000 24/.2 TCW HT90 240V :YELLOW Call Us! FVT12402-YW-V 24/.2 TCW HT90 240V :YELLOW Call Us! FVT13202-BK-100 32/.2 TCW HT90 240V :BLACK Call Us! FVT13202-BK-1000 32/.2 TCW HT90 240V :BLACK Call Us! FVT13202-BK-500 32/.2 TCW HT90 240V :BLACK Call Us! FVT13202-BK-V 32/.2 TCW HT90 240V :BLACK Call Us! FVT13202-GN-100 32/.2 TCW HT90 240V :GREEN Call Us! FVT13202-GNYW-100 32/.2 TCW HT90 240V :GREEN/YELLOW Call Us! FVT13202-GNYW-1000 32/.2 TCW HT90 240V :GREEN/YELLOW Call Us! FVT13202-GNYW-500 32/.2 TCW HT90 240V :GREEN/YELLOW Call Us! FVT13202-LB-100 32/.2 TCW HT90 240V :BLUE Call Us! FVT13202-LB-1000 32/.2 TCW HT90 240V :BLUE Call Us! FVT13202-LB-500 32/.2 TCW HT90 240V :BLUE Call Us! FVT13202-LL-100 32/.2 TCW HT90 240V :LIGHT BLUE Call Us! FVT13202-LL-1000 32/.2 TCW HT90 240V :LIGHT BLUE Call Us! FVT13202-NN-100 32/.2 TCW HT90 240V :BROWN Call Us! FVT13202-NN-1000 32/.2 TCW HT90 240V :BROWN Call Us! FVT13202-NN-500 32/.2 TCW HT90 240V :BROWN Call Us! FVT13202-OR-100 32/.2 TCW HT90 240V :ORANGE Call Us! FVT13202-OR-1000 32/.2 TCW HT90 240V :ORANGE Call Us! FVT13202-PK-100 32/.2 TCW HT90 240V :PINK Call Us! FVT13202-PK-1000 32/.2 TCW HT90 240V :PINK Call Us! FVT13202-RD-100 32/.2 TCW HT90 240V :RED Call Us! FVT13202-RD-1000 32/.2 TCW HT90 240V :RED Call Us! FVT13202-SY-100 32/.2 TCW HT90 240V :GREY Call Us! FVT13202-SY-1000 32/.2 TCW HT90 240V :GREY Call Us! FVT13202-SY-500 32/.2 TCW HT90 240V :GREY Call Us! FVT13202-SY-V 32/.2 TCW HT90 240V :GREY Call Us! FVT13202-VL-100 32/.2 TCW HT90 240V :VIOLET Call Us! FVT13202-VL-1000 32/.2 TCW HT90 240V :VIOLET Call Us! FVT13202-VL-500 32/.2 TCW HT90 240V :VIOLET Call Us! FVT13202-WH-100 32/.2 TCW HT90 240V :WHITE Call Us! FVT13202-WH-1000 32/.2 TCW HT90 240V :WHITE Call Us! FVT13202-WH-V 32/.2 TCW HT90 240V :WHITE Call Us! FVT13202-WHRD-100 32/.2 TCW HT90 240V :WHITE/RED Call Us! FVT13202-YW-100 32/.2 TCW HT90 240V :YELLOW Call Us! FVT13202-YW-1000 32/.2 TCW HT90 240V :YELLOW Call Us! FVT13202-YW-V 32/.2 TCW HT90 240V :YELLOW Call Us! Flexible Cables
SINGLE CORE

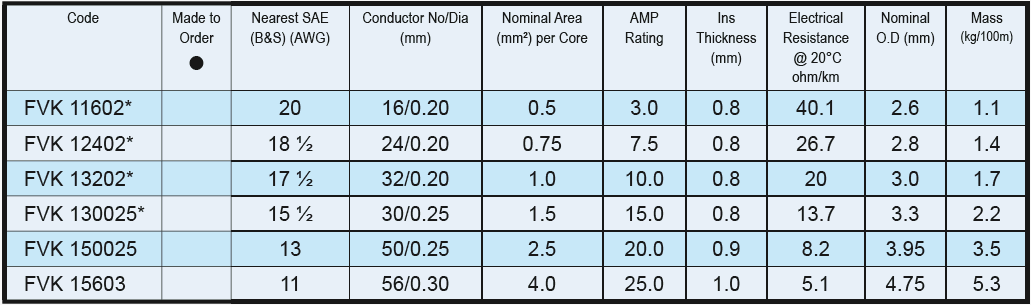

Single Core V90 HT (V105) 0.6/1KV
PVC Insulated
APPLICATIONS: For electrical interconnections.
CONDUCTOR: Tinned copper wire.
INSULATION: V90HT (105°C) PVC AS3808
COLOUR: Red, blue, green, yellow, white, black, brown, violet, orange, grey.
PACK: 100, 500, 1000 metres.
AS3191NOTE: *Available U.L. Style 1015 By Request
- Available in Plain Copper wire By Request
FVK11602-BK-100 16/.2 TCW HT90 .6/1K:BLACK Call Us! FVK11602-BK-1000 16/.2 TCW HT90 .6/1K:BLACK Call Us! FVK11602-GL-100 16/.2 TCW HT90 .6/1K:LIGHT GREEN Call Us! FVK11602-GL-1000 16/.2 TCW HT90 .6/1K:LIGHT GREEN Call Us! FVK11602-GN-100 16/.2 TCW HT90 .6/1K:GREEN Call Us! FVK11602-GN-1000 16/.2 TCW HT90 .6/1K:GREEN Call Us! FVK11602-GNYW-100 16/.2 TCW HT90 .6/1K:GREEN/YELLOW Call Us! FVK11602-GNYW-1000 16/.2 TCW HT90 .6/1K:GREEN/YELLOW Call Us! FVK11602-LB-100 16/.2 TCW HT90 .6/1K:BLUE Call Us! FVK11602-LB-1000 16/.2 TCW HT90 .6/1K:BLUE Call Us! FVK11602-LBRD-100 16/.2 TCW HT90 .6/1K:BLUE/RED Call Us! FVK11602-NN-100 16/.2 TCW HT90 .6/1K:BROWN Call Us! FVK11602-NN-1000 16/.2 TCW HT90 .6/1K:BROWN Call Us! FVK11602-OR-100 16/.2 TCW HT90 .6/1K:ORANGE Call Us! FVK11602-OR-1000 16/.2 TCW HT90 .6/1K:ORANGE Call Us! FVK11602-PK-100 16/.2 TCW HT90 .6/1K:PINK Call Us! FVK11602-PK-1K 16/.2 TCW HT90 .6/1K:PINK Call Us! FVK11602-RD-100 16/.2 TCW HT90 .6/1K:RED Call Us! FVK11602-RD-1000 16/.2 TCW HT90 .6/1K:RED Call Us! FVK11602-SY-100 16/.2 TCW HT90 .6/1K:GREY Call Us! FVK11602-SY-1000 16/.2 TCW HT90 .6/1K:GREY Call Us! FVK11602-VL-100 16/.2 TCW HT90 .6/1K:VIOLET Call Us! FVK11602-VL-1000 16/.2 TCW HT90 .6/1K:VIOLET Call Us! FVK11602-WH-100 16/.2 TCW HT90 .6/1K:WHITE Call Us! FVK11602-WH-1000 16/.2 TCW HT90 .6/1K:WHITE Call Us! FVK11602-YW-100 16/.2 TCW HT90 .6/1K:YELLOW Call Us! FVK11602-YW-1000 16/.2 TCW HT90 .6/1K:YELLOW Call Us! FVK12402-BK-100 24/.2 TCW HT90 .6/1K:BLACK Call Us! FVK12402-BK-1000 24/.2 TCW HT90 .6/1K:BLACK Call Us! FVK12402-BK-500 24/.2 TCW HT90 .6/1K:BLACK Call Us! FVK12402-BKWH-100 24/.2 TCW HT90 .6/1K:BLACK/WHITE Call Us! FVK12402-GN-100 24/.2 TCW HT90 .6/1K:GREEN Call Us! FVK12402-GN-1000 24/.2 TCW HT90 .6/1K:GREEN Call Us! FVK12402-GNYW-100 24/.2 TCW HT90 .6/1K:GREEN/YELLOW Call Us! FVK12402-GNYW-1000 24/.2 TCW HT90 .6/1K:GREEN/YELLOW Call Us! FVK12402-GNYW-500 24/.2 TCW HT90 .6/1K:GREEN/YELLOW Call Us! FVK12402-LB-100 24/.2 TCW HT90 .6/1K:BLUE Call Us! FVK12402-LB-1000 24/.2 TCW HT90 .6/1K:BLUE Call Us! FVK12402-LB-500 24/.2 TCW HT90 .6/1K:BLUE Call Us! FVK12402-LB-V 24/.2 TCW HT90 .6/1K:BLUE Call Us! FVK12402-LBRD-100 24/.2 TCW HT90 .6/1K:BLUE/RED Call Us! FVK12402-LBWH-100 24/.2 TCW HT90 .6/1K:BLUE/WHITE Call Us! FVK12402-LL-100 24/.2 TCW HT90 .6/1K:LIGHT BLUE Call Us! FVK12402-LL-1000 24/.2 TCW HT90 .6/1K:LIGHT BLUE Call Us! FVK12402-LL-V(CB45) 24/.2 TCW HT90 .6/1K:LIGHT BLUE Call Us! FVK12402-NN-100 24/.2 TCW HT90 .6/1K:BROWN Call Us! FVK12402-NN-1000 24/.2 TCW HT90 .6/1K:BROWN Call Us! FVK12402-NN-500 24/.2 TCW HT90 .6/1K:BROWN Call Us! FVK12402-NN-V 24/.2 TCW HT90 .6/1K:BROWN Call Us! FVK12402-NNRD-100 24/.2 TCW HT90 .6/1K:BROWN/RED Call Us! FVK12402-NNWH-100 24/.2 TCW HT90 .6/1K:BROWN/WHITE Call Us! FVK12402-OR-100 24/.2 TCW HT90 .6/1K:ORANGE Call Us! FVK12402-OR-1000 24/.2 TCW HT90 .6/1K:ORANGE Call Us! FVK12402-OR-V 24/.2 TCW HT90 .6/1K:ORANGE Call Us! FVK12402-PK-100 24/.2 TCW HT90 .6/1K:PINK Call Us! FVK12402-PK-1000 24/.2 TCW HT90 .6/1K:PINK Call Us! FVK12402-PK-V 24/.2 TCW HT90 .6/1K:PINK Call Us! FVK12402-RD-100 24/.2 TCW HT90 .6/1K:RED Call Us! FVK12402-RD-1000 24/.2 TCW HT90 .6/1K:RED Call Us! FVK12402-RD-500 24/.2 TCW HT90 .6/1K:RED Call Us! FVK12402-RDBK-100 24/.2 TCW HT90 .6/1K:RED/BLACK Call Us! FVK12402-SY-100 24/.2 TCW HT90 .6/1K:GREY Call Us! FVK12402-SY-1000 24/.2 TCW HT90 .6/1K:GREY Call Us! FVK12402-SY-V 24/.2 TCW HT90 .6/1K:GREY Call Us! FVK12402-SYBK-100 24/.2 TCW HT90 .6/1K:GREY/BLACK Call Us! FVK12402-VL-100 24/.2 TCW HT90 .6/1K:VIOLET Call Us! FVK12402-VL-1000 24/.2 TCW HT90 .6/1K:VIOLET Call Us! FVK12402-VL-V 24/.2 TCW HT90 .6/1K:VIOLET Call Us! FVK12402-WH-100 24/.2 TCW HT90 .6/1K:WHITE Call Us! FVK12402-WH-1000 24/.2 TCW HT90 .6/1K:WHITE Call Us! FVK12402-WH-500 24/.2 TCW HT90 .6/1K:WHITE Call Us! FVK12402-WH-V 24/.2 TCW HT90 .6/1K:WHITE Call Us! FVK12402-YW-100 24/.2 TCW HT90 .6/1K:YELLOW Call Us! FVK12402-YW-1000 24/.2 TCW HT90 .6/1K:YELLOW Call Us! FVK130025-BK-100 30/.25 HT90 0.6/1KV :BLACK Call Us! FVK130025-BK-1000 30/.25 HT90 0.6/1KV :BLACK Call Us! FVK130025-BK-500 30/.25 HT90 0.6/1KV :BLACK Call Us! FVK130025-BKWH-100 30/.25 HT90 0.6/1KV :BLACK/WHITE Call Us! FVK130025-GN-100 30/.25 HT90 0.6/1KV :GREEN Call Us! FVK130025-GN-1000 30/.25 HT90 0.6/1KV :GREEN Call Us! FVK130025-GNYW-100 30/.25 HT90 0.6/1KV :GREEN/YELLOW Call Us! FVK130025-GNYW-1000 30/.25 HT90 0.6/1KV :GREEN/YELLOW Call Us! FVK130025-GNYW-500 30/.25 HT90 0.6/1KV :GREEN/YELLOW Call Us! FVK130025-LB-100 30/.25 HT90 0.6/1KV :BLUE Call Us! FVK130025-LB-1000 30/.25 HT90 0.6/1KV :BLUE Call Us! FVK130025-LB-500 30/.25 HT90 0.6/1KV :BLUE Call Us! FVK130025-LBRD-100 30/.25 HT90 0.6/1KV :BLUE/RED Call Us! FVK130025-LBWH-100 30/.25 HT90 0.6/1KV :BLUE/WHITE Call Us! FVK130025-LL-100 30/.25 HT90 0.6/1KV :LIGHT BLUE Call Us! FVK130025-NN-100 30/.25 HT90 0.6/1KV :BROWN Call Us! FVK130025-NN-1000 30/.25 HT90 0.6/1KV :BROWN Call Us! FVK130025-NN-500 30/.25 HT90 0.6/1KV :BROWN Call Us! FVK130025-NNBK-1000 30/.25 HT90 0.6/1KV :BROWN/BLACK Call Us! FVK130025-NNRD-100 30/.25 HT90 0.6/1KV :BROWN/RED Call Us! FVK130025-NNWH-100 30/.25 HT90 0.6/1KV :BROWN/WHITE Call Us! FVK130025-OR-100 30/.25 HT90 0.6/1KV :ORANGE Call Us! FVK130025-OR-1000 30/.25 HT90 0.6/1KV :ORANGE Call Us! FVK130025-ORBK-100 30/.25 HT90 0.6/1KV :ORANGE/BLACK Call Us! FVK130025-PK-100 30/.25 HT90 0.6/1KV :PINK Call Us! FVK130025-PK-1000 30/.25 HT90 0.6/1KV :PINK Call Us! FVK130025-PK-500 30/.25 HT90 0.6/1KV :PINK Call Us! FVK130025-RD-100 30/.25 HT90 0.6/1KV :RED Call Us! FVK130025-RD-1000 30/.25 HT90 0.6/1KV :RED Call Us! FVK130025-RD-500 30/.25 HT90 0.6/1KV :RED Call Us! FVK130025-RDBK-100 30/.25 HT90 0.6/1KV :RED/BLACK Call Us! FVK130025-RDWH-100 30/.25 HT90 0.6/1KV :RED/WHITE Call Us! FVK130025-SY-100 30/.25 HT90 0.6/1KV :GREY Call Us! FVK130025-SY-1000 30/.25 HT90 0.6/1KV :GREY Call Us! FVK130025-SY-500 30/.25 HT90 0.6/1KV :GREY Call Us! FVK130025-VL-100 30/.25 HT90 0.6/1KV :VIOLET Call Us! FVK130025-VL-1000 30/.25 HT90 0.6/1KV :VIOLET Call Us! FVK130025-VL-500 30/.25 HT90 0.6/1KV :VIOLET Call Us! FVK130025-WH-100 30/.25 HT90 0.6/1KV :WHITE Call Us! FVK130025-WH-1000 30/.25 HT90 0.6/1KV :WHITE Call Us! FVK130025-WH-500 30/.25 HT90 0.6/1KV :WHITE Call Us! FVK130025-YW-100 30/.25 HT90 0.6/1KV :YELLOW Call Us! FVK130025-YW-1000 30/.25 HT90 0.6/1KV :YELLOW Call Us! FVK13202-BK-100 32/.2 TCW HT90 .6/1K:BLACK Call Us! FVK13202-BK-1000 32/.2 TCW HT90 .6/1K:BLACK Call Us! FVK13202-BK-500 32/.2 TCW HT90 .6/1K:BLACK Call Us! FVK13202-BK-V 32/.2 TCW HT90 .6/1K:BLACK Call Us! FVK13202-GN-100 32/.2 TCW HT90 .6/1K:GREEN Call Us! FVK13202-GNYW-100 32/.2 TCW HT90 .6/1K:GREEN/YELLOW Call Us! FVK13202-LB-100 32/.2 TCW HT90 .6/1K:BLUE Call Us! FVK13202-LB-1000 32/.2 TCW HT90 .6/1K:BLUE Call Us! FVK13202-LB-V 32/.2 TCW HT90 .6/1K:BLUE Call Us! FVK13202-LBWH-100 32/.2 TCW HT90 .6/1K:BLUE/WHITE Call Us! FVK13202-NN-100 32/.2 TCW HT90 .6/1K:BROWN Call Us! FVK13202-NN-V 32/.2 TCW HT90 .6/1K:BROWN Call Us! FVK13202-NNRD-100 32/.2 TCW HT90 .6/1K:BROWN/RED Call Us! FVK13202-NNWH-100 32/.2 TCW HT90 .6/1K:BROWN/WHITE Call Us! FVK13202-OR-100 32/.2 TCW HT90 .6/1K:ORANGE Call Us! FVK13202-OR-V 32/.2 TCW HT90 .6/1K:ORANGE Call Us! FVK13202-PK-100 32/.2 TCW HT90 .6/1K:PINK Call Us! FVK13202-PK-V 32/.2 TCW HT90 .6/1K:PINK Call Us! FVK13202-RD-100 32/.2 TCW HT90 .6/1K:RED Call Us! FVK13202-RD-V 32/.2 TCW HT90 .6/1K:RED Call Us! FVK13202-RDLB-V 32/.2 TCW HT90 .6/1K:RED/BLUE Call Us! FVK13202-RDNN-100 32/.2 TCW HT90 .6/1K:RED/BROWN Call Us! FVK13202-RDOR-100 32/.2 TCW HT90 .6/1K:RED/ORANGE Call Us! FVK13202-RDOR-V 32/.2 TCW HT90 .6/1K:RED/ORANGE Call Us! FVK13202-RDSY-100 32/.2 TCW HT90 .6/1K:RED/GREY Call Us! FVK13202-RDWH-100 32/.2 TCW HT90 .6/1K:RED/WHITE Call Us! FVK13202-RDWH-V 32/.2 TCW HT90 .6/1K:RED/WHITE Call Us! FVK13202-SY-100 32/.2 TCW HT90 .6/1K:GREY Call Us! FVK13202-SY-V 32/.2 TCW HT90 .6/1K:GREY Call Us! FVK13202-SYBK-100 32/.2 TCW HT90 .6/1K:GREY/BLACK Call Us! FVK13202-SYBK-V 32/.2 TCW HT90 .6/1K:GREY/BLACK Call Us! FVK13202-SYOR-100 32/.2 TCW HT90 .6/1K:GREY/ORANGE Call Us! FVK13202-SYPK-100 32/.2 TCW HT90 .6/1K:GREY + PINK Call Us! FVK13202-SYWH-100 32/.2 TCW HT90 .6/1K:GREY/WHITE Call Us! FVK13202-VL-100 32/.2 TCW HT90 .6/1K:VIOLET Call Us! FVK13202-VL-V 32/.2 TCW HT90 .6/1K:VIOLET Call Us! FVK13202-WH-100 32/.2 TCW HT90 .6/1K:WHITE Call Us! FVK13202-WH-500 32/.2 TCW HT90 .6/1K:WHITE Call Us! FVK13202-WH-V 32/.2 TCW HT90 .6/1K:WHITE Call Us! FVK13202-WHBK-V 32/.2 TCW HT90 .6/1K:WHITE/BLACK Call Us! FVK13202-WHLB-100 32/.2 TCW HT90 .6/1K:WHITE/BLUE Call Us! FVK13202-WHLB-V 32/.2 TCW HT90 .6/1K:WHITE/BLUE Call Us! FVK13202-WHNN-100 32/.2 TCW HT90 .6/1K:WHITE/BROWN Call Us! FVK13202-WHNN-V 32/.2 TCW HT90 .6/1K:WHITE/BROWN Call Us! FVK13202-WHOR-100 32/.2 TCW HT90 .6/1K:WHITE/ORANGE Call Us! FVK13202-WHOR-V 32/.2 TCW HT90 .6/1K:WHITE/ORANGE Call Us! FVK13202-WHPK-100 32/.2 TCW HT90 .6/1K:WHITE/PINK Call Us! FVK13202-WHPK-V 32/.2 TCW HT90 .6/1K:WHITE/PINK Call Us! FVK13202-WHRD-100 32/.2 TCW HT90 .6/1K:WHITE/RED Call Us! FVK13202-YW-100 32/.2 TCW HT90 .6/1K:YELLOW Call Us! FVK150025-BK-100 50/.25 HT90 0.6/1KV :BLACK Call Us! FVK150025-BK-500 50/.25 HT90 0.6/1KV :BLACK Call Us! FVK150025-GN-100 50/.25 HT90 0.6/1KV :GREEN Call Us! FVK150025-GNYW-100 50/.25 HT90 0.6/1KV :GREEN/YELLOW Call Us! FVK150025-GNYW-500 50/.25 HT90 0.6/1KV :GREEN/YELLOW Call Us! FVK150025-LB-100 50/.25 HT90 0.6/1KV :BLUE Call Us! FVK150025-LB-500 50/.25 HT90 0.6/1KV :BLUE Call Us! FVK150025-NN-100 50/.25 HT90 0.6/1KV :BROWN Call Us! FVK150025-NN-1000 50/.25 HT90 0.6/1KV :BROWN Call Us! FVK150025-NN-500 50/.25 HT90 0.6/1KV :BROWN Call Us! FVK150025-OR-100 50/.25 HT90 0.6/1KV :ORANGE Call Us! FVK150025-PK-100 50/.25 HT90 0.6/1KV :PINK Call Us! FVK150025-PK-1000 50/.25 HT90 0.6/1KV :PINK Call Us! FVK150025-RD-100 50/.25 HT90 0.6/1KV :RED Call Us! FVK150025-RD-500 50/.25 HT90 0.6/1KV :RED Call Us! FVK150025-RD-V 50/.25 HT90 0.6/1KV :RED Call Us! FVK150025-SY-100 50/.25 HT90 0.6/1KV :GREY Call Us! FVK150025-VL-100 50/.25 HT90 0.6/1KV :VIOLET Call Us! FVK150025-WH-100 50/.25 HT90 0.6/1KV :WHITE Call Us! FVK150025-WH-500 50/.25 HT90 0.6/1KV :WHITE Call Us! FVK150025-YW-100 50/.25 HT90 0.6/1KV :YELLOW Call Us! FVK15603-BK-100 56/.3 TCW HT90 .6/1K:BLACK Call Us! FVK15603-BK-1000 56/.3 TCW HT90 .6/1K:BLACK Call Us! FVK15603-BK-500 56/.3 TCW HT90 .6/1K:BLACK Call Us! FVK15603-GN-100 56/.3 TCW HT90 .6/1K:GREEN Call Us! FVK15603-GNYW-100 56/.3 TCW HT90 .6/1K:GREEN/YELLOW Call Us! FVK15603-LB-100 56/.3 TCW HT90 .6/1K:BLUE Call Us! FVK15603-NN-100 56/.3 TCW HT90 .6/1K:BROWN Call Us! FVK15603-OR-100 56/.3 TCW HT90 .6/1K:ORANGE Call Us! FVK15603-PK-100 56/.3 TCW HT90 .6/1K:PINK Call Us! FVK15603-RD-100 56/.3 TCW HT90 .6/1K:RED Call Us! FVK15603-RD-1000 56/.3 TCW HT90 .6/1K:RED Call Us! FVK15603-SY-100 56/.3 TCW HT90 .6/1K:GREY Call Us! FVK15603-VL-100 56/.3 TCW HT90 .6/1K:VIOLET Call Us! FVK15603-WH-100 56/.3 TCW HT90 .6/1K:WHITE Call Us! FVK15603-YW-100 56/.3 TCW HT90 .6/1K:YELLOW Call Us! FVK18403-BK-100 84/.3 0.6/1KV V90HT :BLACK Call Us! FVK18403-GNYW-100 84/.3 0.6/1KV V90HT :GREEN/YELLOW Call Us! FVK18403-LB-100 84/.3 0.6/1KV V90HT :BLUE Call Us! FVK18403-NN-100 84/.3 0.6/1KV V90HT :BROWN Call Us! FVK18403-OR-100 84/.3 0.6/1KV V90HT :ORANGE Call Us! FVK18403-PK-100 84/.3 0.6/1KV V90HT :PINK Call Us! FVK18403-RD-100 84/.3 0.6/1KV V90HT :RED Call Us! FVK18403-SY-100 84/.3 0.6/1KV V90HT :GREY Call Us! FVK18403-WH-100 84/.3 0.6/1KV V90HT :WHITE Call Us! FVK18403-YW-100 84/.3 0.6/1KV V90HT :YELLOW Call Us! Flexible Cables

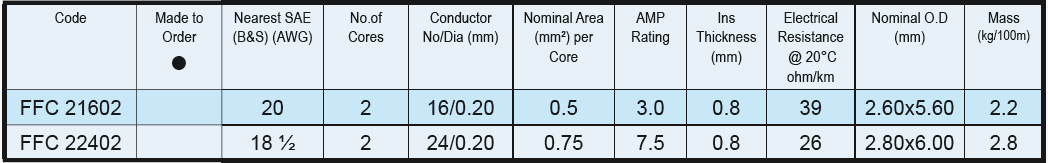

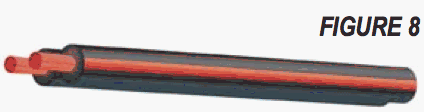

Figure 8 (parallel webbed) 75°C 250/250 Volt
PVC Insulated
APPLICATIONS: Wiring of audio, electronic and allied equipment.
CONDUCTOR: Plain copper wire.
INSULATION: 75°C PVC to AS3808
COLOUR: White, black, brown, grey, stripe combinations as available.
PACK: 100 or 500 metres.
AS3191
Approval V98005NOTE: (i) FFC22402 Austel Approved – CCL A93/CA/0098.
FFC21602-BK-100 16/.2 240V FIG 8 :BLACK Call Us! FFC21602-BK-500 16/.2 240V FIG 8 :BLACK Call Us! FFC21602-BKWH-100 16/.2 240V FIG 8 :BLACK/WHITE Call Us! FFC21602-WH-100 16/.2 240V FIG 8 :WHITE Call Us! FFC22402-BK-100 24/.2 240V FIG 8 :BLACK Call Us! FFC22402-BK-500 24/.2 240V FIG 8 :BLACK Call Us! FFC22402-BKRD-100 24/.2 240V FIG 8 :BLACK/RED Call Us! FFC22402-BKWH-100 24/.2 240V FIG 8 :BLACK/WHITE Call Us! FFC22402-BKWH-250 24/.2 240V FIG 8 :BLACK/WHITE Call Us! FFC22402-BKWH-500 24/.2 240V FIG 8 :BLACK/WHITE Call Us! FFC22402-GNBK-100 24/.2 240V FIG 8 :GREEN/BLACK Call Us! FFC22402-LBBK-100 24/.2 240V FIG 8 :BLUE/BLACK Call Us! FFC22402-LBBK-500 24/.2 240V FIG 8 :BLUE/BLACK Call Us! FFC22402-LBWH-100 24/.2 240V FIG 8 :BLUE/WHITE Call Us! FFC22402-LBWH-250 24/.2 240V FIG 8 :BLUE/WHITE Call Us! FFC22402-LBWH-3000 24/.2 240V FIG 8 :BLUE/WHITE Call Us! FFC22402-LBWH-500 24/.2 240V FIG 8 :BLUE/WHITE Call Us! FFC22402-NNBK-100 24/.2 240V FIG 8 :BROWN/BLACK Call Us! FFC22402-NNBK-500 24/.2 240V FIG 8 :BROWN/BLACK Call Us! FFC22402-NNLB-100 24/.2 240V FIG 8 :BROWN/BLUE Call Us! FFC22402-NNWH-100 24/.2 240V FIG 8 :BROWN/WHITE Call Us! FFC22402-NNWH-250 24/.2 240V FIG 8 :BROWN/WHITE Call Us! FFC22402-NNWH-500 24/.2 240V FIG 8 :BROWN/WHITE Call Us! FFC22402-RDBK-100 24/.2 240V FIG 8 :RED/BLACK Call Us! FFC22402-RDBK-250 24/.2 240V FIG 8 :RED/BLACK Call Us! FFC22402-RDBK-500 24/.2 240V FIG 8 :RED/BLACK Call Us! FFC22402-RDWH-100 24/.2 240V FIG 8 :RED/WHITE Call Us! FFC22402-RDWH-3000 24/.2 240V FIG 8 :RED/WHITE Call Us! FFC22402-RDWH-500 24/.2 240V FIG 8 :RED/WHITE Call Us! FFC22402-SY-100 24/.2 240V FIG 8 :GREY Call Us! FFC22402-SYBK-100 24/.2 240V FIG 8 :GREY/BLACK Call Us! FFC22402-SYBK-250 24/.2 240V FIG 8 :GREY/BLACK Call Us! FFC22402-SYBK-500 24/.2 240V FIG 8 :GREY/BLACK Call Us! FFC22402-SYLB-100 24/.2 240V FIG 8 :GREY/BLUE Call Us! FFC22402-SYLB-500 24/.2 240V FIG 8 :GREY/BLUE Call Us! FFC22402-SYWH-100 24/.2 240V FIG 8 :GREY/WHITE Call Us! FFC22402-SYWH-250 24/.2 240V FIG 8 :GREY/WHITE Call Us! FFC22402-SYWH-500 24/.2 240V FIG 8 :GREY/WHITE Call Us! FFC22402-VLBK-100 24/.2 240V FIG 8 :VIOLET/BLACK Call Us! FFC22402-WH-10 24/.2 240V FIG 8 :WHITE Call Us! FFC22402-WH-100 24/.2 240V FIG 8 :WHITE Call Us! FFC22402-WH-30 24/.2 240V FIG 8 :WHITE Call Us! FFC22402-WH-500 24/.2 240V FIG 8 :WHITE Call Us! FFC22402-WHBK-100 24/.2 240V FIG 8 :WHITE/BLACK Call Us! FFC22402-WHBK-250 24/.2 240V FIG 8 :WHITE/BLACK Call Us! FFC22402-WHBK-500 24/.2 240V FIG 8 :WHITE/BLACK Call Us! FFC22402-WHLB-100 24/.2 240V FIG 8 :WHITE/BLUE Call Us! FFC22402-WHRD-100 24/.2 240V FIG 8 :WHITE/RED Call Us! FFC22402-WHRD-500 24/.2 240V FIG 8 :WHITE/RED Call Us! Flexible Cables

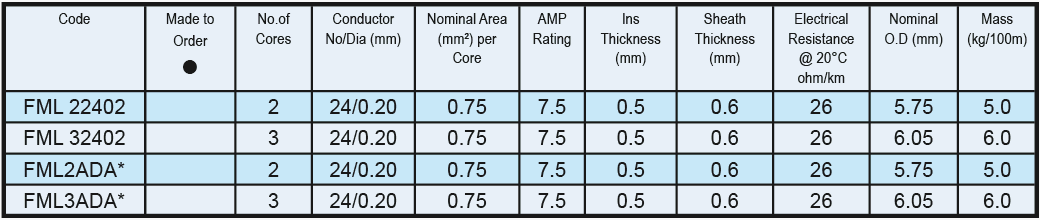

LIGHT DUTY CIRCULAR
Light Duty Circular 75°C 250/250 Volt
PVC Ins. & Sheath
APPLICATIONS: Lighting, appliance and control wiring.
CONDUCTOR: Plain copper wire.
INSULATION: 75°C PVC to AS3808
CORE COLOUR: 2 core: Brown, light blue.
3 core: Brown, light blue, green/yellow.
SHEATH: 75°C PVC to AS3808
SHEATH COLOUR: White, grey, black, gold
PACK: 100 or 500 metres, bulk drum.AS3191
Approval V98005NOTE: * Gold Sheath products
FML22402-BK-100 2X24/.2 LD Circular :BLACK Call Us! FML22402-BK-500 2X24/.2 LD Circular :BLACK Call Us! FML22402-BK-V 2X24/.2 LD Circular :BLACK Call Us! FML22402-SY-100 2X24/.2 LD Circular :GREY Call Us! FML22402-SY-500 2X24/.2 LD Circular :GREY Call Us! FML22402-WH-100 2X24/.2 LD Circular :WHITE Call Us! FML22402-WH-500 2X24/.2 LD Circular :WHITE Call Us! FML32402-BK-100 3X24/.2 LD CIRCULAR :BLACK Call Us! FML32402-BK-1000 3X24/.2 LD CIRCULAR :BLACK Call Us! FML32402-SY-100 3X24/.2 LD CIRCULAR :GREY Call Us! FML32402-WH-100 3X24/.2 LD CIRCULAR :WHITE Call Us! FML32402-WH-V 3X24/.2 LD CIRCULAR :WHITE Call Us! FML3ADA-QD-100 3X24/.2 LD CIRC GOLD:GOLD Call Us! Flexible Cables

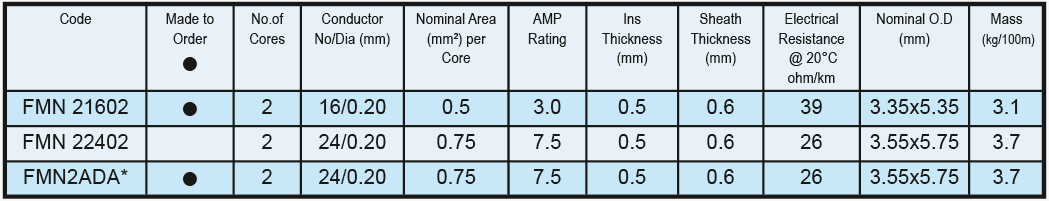

LIGHT DUTY FLAT
Light Duty Flat 75°C 250/250 Volt
PVC Ins. and Sheath
APPLICATIONS: Appliance, lighting and control wiring.
CONDUCTOR: Plain copper wire.
INSULATION: 75°C PVC AS3808
CORE COLOUR: Brown, light blue.
SHEATH: 75°C PVC AS3808
SHEATH COLOUR: White, black.
PACK: 500 metre, bulk drum.
AS3191
Approval V98005NOTE: * Gold Sheath product
FMN22402-BK-100 2X24/.2 LD FLAT :BLACK Call Us! FMN22402-BK-500 2X24/.2 LD FLAT :BLACK Call Us! FMN22402-NN-200 2X24/.2 LD FLAT :BROWN Call Us! FMN22402-NN-500 2X24/.2 LD FLAT :BROWN Call Us! FMN22402-WH-100 2X24/.2 LD FLAT :WHITE Call Us! Flexible Cables

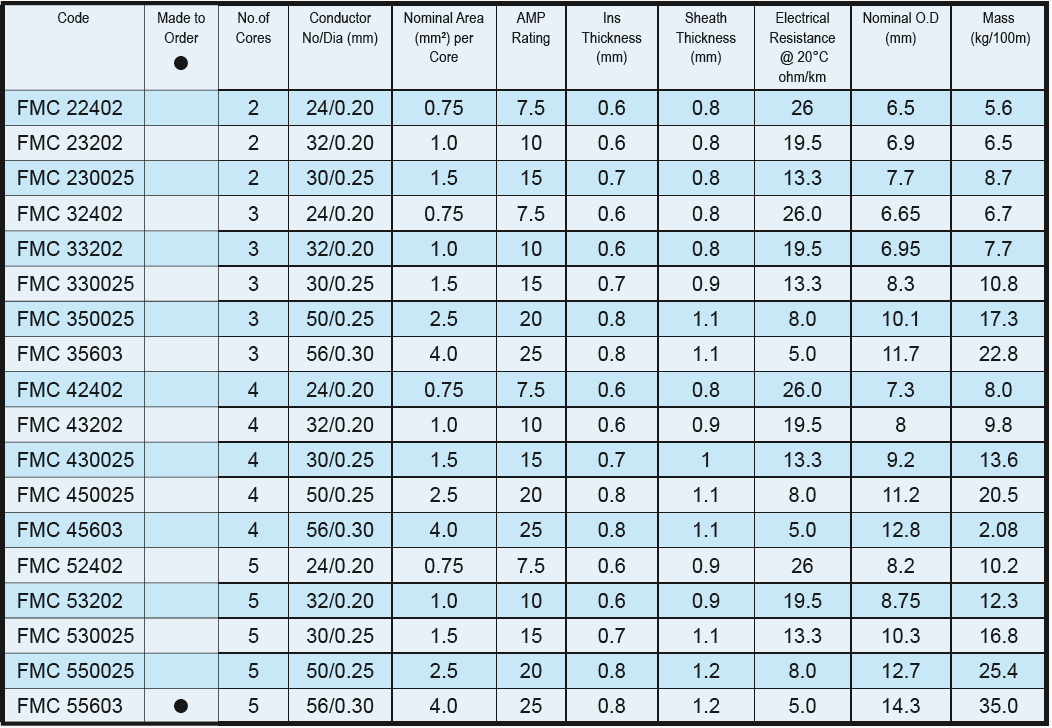

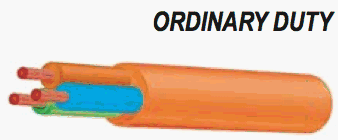

ORDINARY DUTY
Ordinary Duty 75°C 250/440 Volt
PVC Ins. & Sheath
APPLICATIONS: Lighting, appliance, plug leads.
CONDUCTOR: Plain copper wire.
INSULATION: 75°C PVC to AS3808
CORE COLOUR: 2 core: Brown, light blue.
3 core: Brown, light blue, green/yellow.
4 core: Brown, light blue, green/yellow, white.
5 core: Brown, light blue, green/yellow, orange, white.
SHEATH: 75°C PVC to AS3808
SHEATH COLOUR: White, grey, orange, black.
PACK: 100 or 500 metre bulk drum.
Approval(s) V94014
V98005
FMC22402-BK-100 2X24/.2 OD PVC FLEX :BLACK Call Us! FMC22402-BK-250 2X24/.2 OD PVC FLEX :BLACK Call Us! FMC22402-BK-500 2X24/.2 OD PVC FLEX :BLACK Call Us! FMC22402-LB-100 2X24/.2 OD PVC FLEX :BLUE Call Us! FMC22402-LB-500 2X24/.2 OD PVC FLEX :BLUE Call Us! FMC22402-OR-100 2X24/.2 OD PVC FLEX :ORANGE Call Us! FMC22402-OR-500 2X24/.2 OD PVC FLEX :ORANGE Call Us! FMC22402-SY-100 2X24/.2 OD PVC FLEX :GREY Call Us! FMC22402-WH-100 2X24/.2 OD PVC FLEX :WHITE Call Us! FMC22402-WH-300 2X24/.2 OD PVC FLEX :WHITE Call Us! FMC230025-BK-100 2x30/.25 OD PVC FLEX:BLACK Call Us! FMC230025-OR-100 2x30/.25 OD PVC FLEX:ORANGE Call Us! FMC230025-SY-100 2x30/.25 OD PVC FLEX:GREY Call Us! FMC230025-SY-300 2x30/.25 OD PVC FLEX:GREY Call Us! FMC230025-WH-100 2x30/.25 OD PVC FLEX:WHITE Call Us! FMC230025-WH-V 2x30/.25 OD PVC FLEX:WHITE Call Us! FMC23202-BK-100 2X32/.2 OD PVC FLEX :BLACK Call Us! FMC23202-OR-100 2X32/.2 OD PVC FLEX :ORANGE Call Us! FMC23202-SY-100 2X32/.2 OD PVC FLEX :GREY Call Us! FMC23202-WH-100 2X32/.2 OD PVC FLEX :WHITE Call Us! FMC32402-BK-100 3X24/.2 OD PVC FLEX :BLACK Call Us! FMC32402-BK-50 3X24/.2 OD PVC FLEX :BLACK Call Us! FMC32402-BK-V 3X24/.2 OD PVC FLEX :BLACK Call Us! FMC32402-OR-100 3X24/.2 OD PVC FLEX :ORANGE Call Us! FMC32402-SD-V 3X 24/.20 (.75MM2) OD DARK GRY Call Us! FMC32402-SY-100 3X24/.2 OD PVC FLEX :GREY Call Us! FMC32402-WH-100 3X24/.2 OD PVC FLEX :WHITE Call Us! FMC32402-WH-1000 3X24/.2 OD PVC FLEX :WHITE Call Us! FMC32402-WH-50 3X24/.2 OD PVC FLEX :WHITE Call Us! FMC330025-BK-100 3X30/.25 OD PVC FLEX:BLACK Call Us! FMC330025-BK-50 3X30/.25 OD PVC FLEX:BLACK Call Us! FMC330025-OR-100 3X30/.25 OD PVC FLEX:ORANGE Call Us! FMC330025-OR-500 3X30/.25 OD PVC FLEX:ORANGE Call Us! FMC330025-SY-100 3X30/.25 OD PVC FLEX:GREY Call Us! FMC330025-WH-100 3X30/.25 OD PVC FLEX:WHITE Call Us! FMC330025-WH-500 3X30/.25 OD PVC FLEX:WHITE Call Us! FMC33202-BK-100 3X32/.2 OD PVC FLEX :BLACK Call Us! FMC33202-BK-50 3X32/.2 OD PVC FLEX :BLACK Call Us! FMC33202-BK-V 3X32/.2 OD PVC FLEX :BLACK Call Us! FMC33202-OR-100 3X32/.2 OD PVC FLEX :ORANGE Call Us! FMC33202-SD-V 3X32/.2 OD PVC FLEX :DARK GREY Call Us! FMC33202-SY-100 3X32/.2 OD PVC FLEX :GREY Call Us! FMC33202-WH-100 3X32/.2 OD PVC FLEX :WHITE Call Us! FMC33202-WH-50 3X32/.2 OD PVC FLEX :WHITE Call Us! FMC350025-BK-100 3X50/.25 OD PVC FLEX:BLACK Call Us! FMC350025-BK-500 3X50/.25 OD PVC FLEX:BLACK Call Us! FMC350025-OR-100 3X50/.25 OD PVC FLEX:ORANGE Call Us! FMC350025-SY-100 3X50/.25 OD PVC FLEX:GREY Call Us! FMC350025-SY-500 3X50/.25 OD PVC FLEX:GREY Call Us! FMC350025-WH-100 3X50/.25 OD PVC FLEX:WHITE Call Us! FMC350025-WH-500 3X50/.25 OD PVC FLEX:WHITE Call Us! FMC35603-OR-100 3X56/.3 OD PVC FLEX :ORANGE Call Us! FMC35603-SY-100 3X56/.3 OD PVC FLEX :GREY Call Us! FMC3ADB-SY-100 3x24/.2 OD SP CORES :GREY Call Us! FMC42402-BK-100 4X24/.2 OD PVC FLEX :BLACK Call Us! FMC42402-OR-100 4X24/.2 OD PVC FLEX :ORANGE Call Us! FMC42402-SY-100 4X24/.2 OD PVC FLEX :GREY Call Us! FMC42402-SY-500 4X24/.2 OD PVC FLEX :GREY Call Us! FMC42402-WH-100 4X24/.2 OD PVC FLEX :WHITE Call Us! FMC430025-BK-100 4X30/.25 OD PVC FLEX:BLACK Call Us! FMC430025-BK-500 4X30/.25 OD PVC FLEX:BLACK Call Us! FMC430025-OR-100 4X30/.25 OD PVC FLEX:ORANGE Call Us! FMC430025-SY-100 4X30/.25 OD PVC FLEX:GREY Call Us! FMC43202-BK-100 4x32/.2 OD PVC FLEX :BLACK Call Us! FMC43202-OR-100 4x32/.2 OD PVC FLEX :ORANGE Call Us! FMC43202-SY-100 4x32/.2 OD PVC FLEX :GREY Call Us! FMC43202-WH-100 4x32/.2 OD PVC FLEX :WHITE Call Us! FMC450025-BK-100 4x50/.25 OD PVC FLEX:BLACK Call Us! FMC450025-OR-100 4x50/.25 OD PVC FLEX:ORANGE Call Us! FMC450025-SY-100 4x50/.25 OD PVC FLEX:GREY Call Us! FMC45603-BK-100 4X56/.3 OD PVC FLEX :BLACK Call Us! FMC45603-BK-500 4X56/.3 OD PVC FLEX :BLACK Call Us! FMC45603-OR-100 4X56/.3 OD PVC FLEX :ORANGE Call Us! FMC45603-SY-100 4X56/.3 OD PVC FLEX :GREY Call Us! FMC52402-BK-100 5X24/.2 OD PVC FLEX :BLACK Call Us! FMC52402-OR-100 5X24/.2 OD PVC FLEX :ORANGE Call Us! FMC52402-SY-100 5X24/.2 OD PVC FLEX :GREY Call Us! FMC52402-SY-500 5X24/.2 OD PVC FLEX :GREY Call Us! FMC530025-BK-100 5X30/.25 OD PVC FLEX:BLACK Call Us! FMC530025-OR-100 5X30/.25 OD PVC FLEX:ORANGE Call Us! FMC530025-SY-100 5X30/.25 OD PVC FLEX:GREY Call Us! FMC53202-BK-100 5X32/.2 OD PVC FLEX :BLACK Call Us! FMC53202-OR-100 5X32/.2 OD PVC FLEX :ORANGE Call Us! FMC53202-SY-100 5X32/.2 OD PVC FLEX :GREY Call Us! FMC550025-SY-100 5x50/.25 OD PVC FLEX:GREY Call Us! Flexible Cables

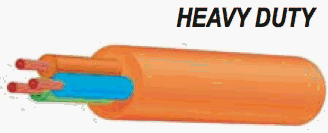

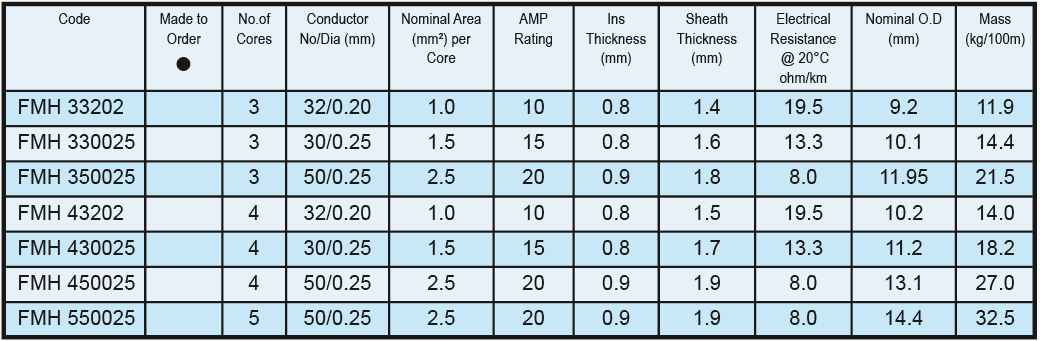

HEAVY DUTY
Heavy Duty Circular 75°C 0.6/1KV
PVC Ins. & Sheath
APPLICATIONS: Extension leads for heavy duty applications.
CONDUCTOR: Plain copper wire.
INSULATION: 75°C PVC to AS3808
CORE COLOUR: 3 core: Brown, light blue, green/yellow.
4 core: Brown, light blue, white, green/yellow.
5 core: Brown, light blue, white, green/yellow, orange.
SHEATH: 75°C PVC to AS3808.
SHEATH COLOUR: Grey, orange.
PACK: 300 metres, bulk drum.
AS3191
Approval(s) V94014
V98005
FMH330025-LB-100 3X30/.25 HD PVC FLEX:BLUE Call Us! FMH330025-LB-500 3X30/.25 HD PVC FLEX:BLUE Call Us! FMH330025-LL-500 3X30/.25 HD PVC FLEX:LIGHT BLUE Call Us! FMH330025-OR-100 3X30/.25 HD PVC FLEX:ORANGE Call Us! FMH330025-OR-500 3X30/.25 HD PVC FLEX:ORANGE Call Us! FMH330025-OR-V 3X30/.25 HD PVC FLEX:ORANGE Call Us! FMH330025-PK-500 3X30/.25 HD PVC FLEX:PINK Call Us! FMH330025-RD-100 3X30/.25 HD PVC FLEX:RED Call Us! FMH330025-RD-500 3X30/.25 HD PVC FLEX:RED Call Us! FMH330025-SY-100 3X30/.25 HD PVC FLEX:GREY Call Us! FMH330025-SY-500 3X30/.25 HD PVC FLEX:GREY Call Us! FMH330025-VL-V 3X30/.25 HD PVC FLEX:VIOLET Call Us! FMH330025-YW-100 3X30/.25 HD PVC FLEX:YELLOW Call Us! FMH330025-YW-500 3X30/.25 HD PVC FLEX:YELLOW Call Us! FMH330025-YW-V 3X30/.25 HD PVC FLEX:YELLOW Call Us! FMH33202-OR-100 3X32/.2 HD PVC FLEX :ORANGE Call Us! FMH33202-OR-1000 3X32/.2 HD PVC FLEX :ORANGE Call Us! FMH33202-OR-500 3X32/.2 HD PVC FLEX :ORANGE Call Us! FMH33202-OR-V 3X32/.2 HD PVC FLEX :ORANGE Call Us! FMH350025-LB-100 3x50/.25 HD PVC FLEX:BLUE Call Us! FMH350025-OR-100 3x50/.25 HD PVC FLEX:ORANGE Call Us! FMH430025-OR-100 4X30/.25 HD PVC FLEX:ORANGE Call Us! FMH430025-SY-100 4X30/.25 HD PVC FLEX:GREY Call Us! FMH43202-OR-100 4x32/.20 HD PVC FLEX:ORANGE Call Us! FMH450025-OR-100 4x50/.25 HD PVC FLEX:ORANGE Call Us!
