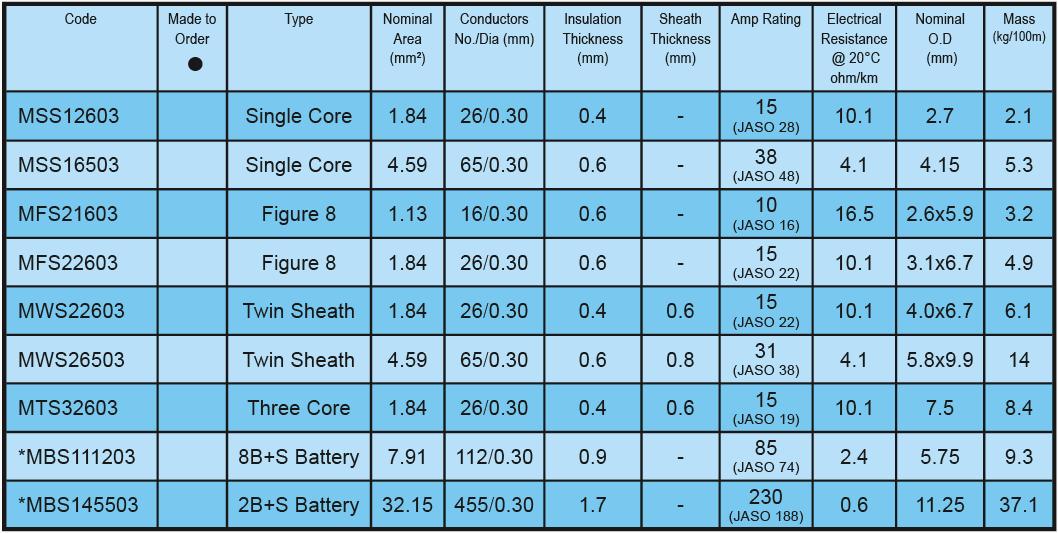

Marine Cables
Tin Coated
APPLICATIONS: Pleasure craft. Low Voltage applications 50 volts.
CONDUCTOR: Tin-coated copper for corrosion resistance.
INSULATION: 75°C PVC to AS 3808
COLOUR: Single core Red or black
Figure 8 Red with black or white trace.
Twin sheath White sheath
Battery Red or black
3 core White sheath
PACK: 30, 50, 100, 500 metres.NOTE: (i) Amp ratings may vary according to standards applied or specifi c application.
(ii) Not suitable for connection to Mains Power Supply.
*Battery Cables 60% Duty Cycle
MWS22603-BK-100 26/.3 TCW TWIN SHTH :BLACK Call Us! MWS22603-BK-50 26/.3 TCW TWIN SHTH :BLACK Call Us! MWS22603-WH-100 26/.3 TCW TWIN SHTH :WHITE Call Us! MWS22603-WH-50 26/.3 TCW TWIN SHTH :WHITE Call Us! MWS22603-WH-500 26/.3 TCW TWIN SHTH :WHITE Call Us! MWS26503-WH-100 65/.3 TCW TWIN SHTH :WHITE Call Us! MWS26503-WH-50 65/.3 TCW TWIN SHTH :WHITE Call Us! MTS32603-WH-100 3X26/.3 TCW V75 MAR :WHITE Call Us! MTS32603-WH-50 3X26/.3 TCW V75 MAR :WHITE Call Us! MTS32603-WH-500 3X26/.3 TCW V75 MAR :WHITE Call Us! MBS0-50A Call Us! MBS111203-BK-100 8 B&S (112/.3) TCW :BLACK Call Us! MBS111203-BK-30 8 B&S (112/.3) TCW :BLACK Call Us! MBS111203-RD-100 8 B&S (112/.3) TCW :RED Call Us! MBS111203-RD-30 8 B&S (112/.3) TCW :RED Call Us! MBS111203-RD-50 8 B&S (112/.3) TCW :RED Call Us! MBS145503-BK-100 2 B&S (455/.3) TCW :BLACK Call Us! MBS145503-BK-30 2 B&S (455/.3) TCW :BLACK Call Us! MBS145503-RD-100 2 B&S (455/.3) TCW :RED Call Us! MBS145503-RD-30 2 B&S (455/.3) TCW :RED Call Us! MBS8-16MICRO Call Us! MBSDC8-16 Call Us! MBSL23 Call Us! MBSL23DF/Y Call Us! MBSL60/B Call Us! Marine Cables

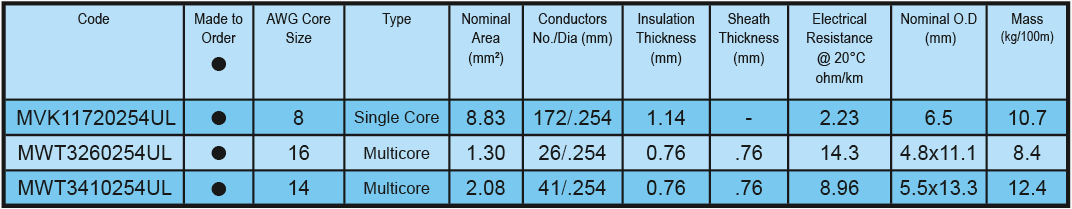

UL Listed E227542 Boat Cable
UL1426
Tin Coated
APPLICATIONS: Pleasure craft. 600 volt rated.
CONDUCTOR: Tin coated copper for corrosion resistance.
INSULATION: Special Wet Location PVC.
105°C Dry, 75°C Wet, 60°C Oil Resistant
COLOUR (Multicore): Cores: Black, Green, White
Sheath: White
PACK: 100, 500 metres.NOTE: (i) Not suitable for connection to Mains Power Supply Other ranges available on request:
Single Core: - Core sizes 16AWG (1.30mm2) to 0000 AWG (103mm2)
Multicore: Round - Core sizes 18AWG(0.85mm2) to 6AWG (13.2mm2)
Flat - Core sizes 18AWG(0.85mm2) to 12AWG (3.3mm2)
MVK Call Us! MWT Call Us!
