Security Cables
ACA N1155 (AUSTEL APPROVED)
Multi-Core
PVC Insulation and Sheath 75°C ACA N1155 (Austel Approved)
APPLICATIONS: Security systems, control and communications equipment.
CONDUCTOR: Plain copper wire.
INSULATION: 75°C PVC to AS 3808

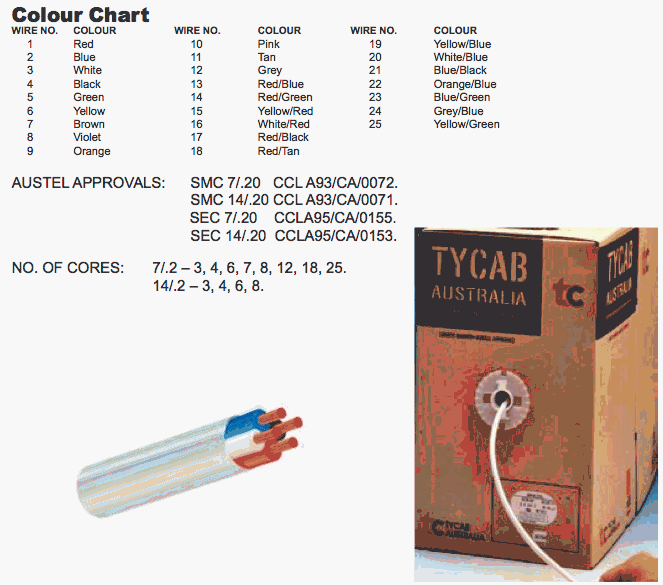

CORE COLOUR: See next page.
SHEATH: 75°C PVC to AS 3808 and S008
SHEATH COLOUR: Grey, white, brown or cream.
PACK: 100, 250, 500 metres, bulk drum.NOTE: (i) Extra Low Voltage
(ii) Not Suitable For Connection To Mains Power Supply.
SMC12702-SY-100 12x7/.2 Security :GREY Call Us! SMC6702-SY-100 6 X 7/.2 SECURITY GREY UNSHIELDED DORMA PRODUCT..... Call Us! SMC81402-SY-100 8x14/.2 Security :GREY Call Us! SMC81402-SY-250 8x14/.2 Security :GREY Call Us! SMC81402-SY-500 8x14/.2 Security :GREY Call Us! SMC81402-WH-100 8x14/.2 Security :WHITE Call Us! SMC81402-WH-250 8x14/.2 Security :WHITE Call Us! SMC81402-WH-500 8x14/.2 Security :WHITE Call Us! SMC8702-SY-100 8x7/.2 Security :GREY Call Us! SMC8702-WH-100 8x7/.2 Security :WHITE Call Us! SMC8702-WH-500 8x7/.2 Security :WHITE Call Us! SEC4142-NN-100 4x14/.2 RACOL SECUR :BROWN Call Us! SEC4142-NN-250 4x14/.2 RACOL SECUR :BROWN Call Us! SEC4142-NN-300(B) 4x14/.2 RACOL SECUR :BROWN Call Us! SEC4142-SY-100 4x14/.2 RACOL SECUR :GREY Call Us! SEC4142-SY-300(B) 4x14/.2 RACOL SECUR :GREY Call Us! SEC4142-SY-500 4x14/.2 RACOL SECUR :GREY Call Us! SEC4142-WH-100 4x14/.2 RACOL SECUR :WHITE Call Us! SEC4142-WH-250 4x14/.2 RACOL SECUR :WHITE Call Us! SEC4142-WH-300(B) 4x14/.2 RACOL SECUR :WHITE Call Us! SEC4142-WH-500 4x14/.2 RACOL SECUR :WHITE Call Us! SEC4142-YW-300(B) 4x14/.2 RACOL SECUR :YELLOW Call Us! SEC472-NN-100 4x7/.2 RACOL SECURIC:BROWN Call Us! SEC472-NN-300(B) 4x7/.2 RACOL SECURIC:BROWN Call Us! SEC472-SY-100 4x7/.2 RACOL SECURIC:GREY Call Us! SEC472-SY-300(B) 4x7/.2 RACOL SECURIC:GREY Call Us! SEC472-WH-100 4x7/.2 RACOL SECURIC:WHITE Call Us! SEC472-WH-300 4x7/.2 RACOL SECURIC:WHITE Call Us! SEC472-WH-300(B) 4x7/.2 RACOL SECURIC:WHITE Call Us! SEC472-WH-500 4x7/.2 RACOL SECURIC:WHITE Call Us! SEC6142-NN-100 6x14/.2 RACOL SECURI:BROWN Call Us! SEC6142-NN-300(B) 6x14/.2 RACOL SECURI:BROWN Call Us! SEC6142-SY-100 6x14/.2 RACOL SECURI:GREY Call Us! SEC6142-SY-250 6x14/.2 RACOL SECURI:GREY Call Us! SEC6142-SY-300(B) 6x14/.2 RACOL SECURI:GREY Call Us! SEC6142-WH-100 6x14/.2 RACOL SECURI:WHITE Call Us! SEC6142-WH-250 6x14/.2 RACOL SECURI:WHITE Call Us! SEC6142-WH-300(B) 6x14/.2 RACOL SECURI:WHITE Call Us! SEC6142-WH-500 6x14/.2 RACOL SECURI:WHITE Call Us! SEC672-NN-100 6x7/.2 RACOL SECURIC:BROWN Call Us! SEC672-NN-300(B) 6x7/.2 RACOL SECURIC:BROWN Call Us! SEC672-SY-100 6x7/.2 RACOL SECURIC:GREY Call Us! SEC672-SY-300(B) 6x7/.2 RACOL SECURIC:GREY Call Us! SEC672-SY-500 6x7/.2 RACOL SECURIC:GREY Call Us! SEC672-WH-100 6x7/.2 RACOL SECURIC:WHITE Call Us! SEC672-WH-300 6x7/.2 RACOL SECURIC:WHITE Call Us! SEC672-WH-300(B) 6x7/.2 RACOL SECURIC:WHITE Call Us! SEC672-WH-500 6x7/.2 RACOL SECURIC:WHITE Call Us!
Security Cables
ACA N1155 (AUSTEL APPROVED)
Multi-Core
PVC Insulation and sheath 75°C
AUSTEL APPROVALS:
Security Cables

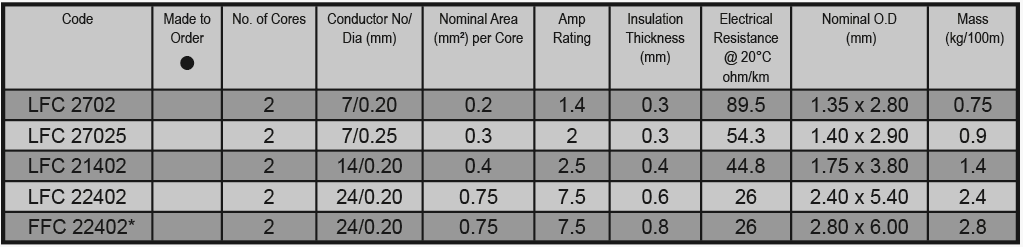

ACA N1155 (Austel Approved) FIGURE 8
Figure 8 (Parallel Webbed) 75°C
PVC Insulated
APPLICATIONS: Interconnection of security and allied equipment.
CONDUCTOR: Plain copper wire.
INSULATION: 75°C PVC to AS 3808
COLOUR: Striped combinations as requested.
PACK: 100, 250, 500 metres.
AUSTEL APPROVALS: A93/CA/0100 (LFC 22402).
A93/CA/0099 (LFC 22402).
A93/CA/0098 (FFC 22402).NOTE: (i)* 240v Insulation Thickness.
(ii) LFC Cables Not Suitable For Connection To Mains Power Supply.
LFC21402-BK-100 14/.2 F8 Speaker :BLACK Call Us! LFC21402-BK-1000 14/.2 F8 Speaker :BLACK Call Us! LFC21402-BKRD-100 14/.2 F8 Speaker :BLACK/RED Call Us! LFC21402-BKRD-1000 14/.2 F8 Speaker :BLACK/RED Call Us! LFC21402-BKWH-100 14/.2 F8 Speaker :BLACK/WHITE Call Us! LFC21402-RDBK-100 14/.2 F8 Speaker :RED/BLACK Call Us! LFC21402-RDBK-30 14/.2 F8 Speaker :RED/BLACK Call Us! LFC21402-RDBK-500 14/.2 F8 Speaker :RED/BLACK Call Us! LFC21402-SY-100 14/.2 F8 Speaker :GREY Call Us! LFC21402-SYBK-100 14/.2 F8 Speaker :GREY/BLACK Call Us! LFC21402-SYBK-1000 14/.2 F8 Speaker :GREY/BLACK Call Us! LFC21402-SYBK-30 14/.2 F8 Speaker :GREY/BLACK Call Us! LFC21402-SYBK-500 14/.2 F8 Speaker :GREY/BLACK Call Us! LFC21402-SYBK-5000 14/.2 F8 Speaker :GREY/BLACK Call Us! LFC21402-SYWH-100 14/.2 F8 Speaker :GREY/WHITE Call Us! LFC21402-WH-100 14/.2 F8 Speaker :WHITE Call Us! LFC21402-WHSY-100 14/.2 F8 Speaker :WHITE/GREY Call Us! LFC22402-BK-100 24/.2 F8 Speaker :BLACK Call Us! LFC22402-BKRD-100 24/.2 F8 Speaker :BLACK/RED Call Us! LFC22402-BKRD-1000 24/.2 F8 Speaker :BLACK/RED Call Us! LFC22402-BKRD-500 24/.2 F8 Speaker :BLACK/RED Call Us! LFC22402-BKWH-100 24/.2 F8 Speaker :BLACK/WHITE Call Us! LFC22402-RDWH-100 24/.2 F8 Speaker :RED/WHITE Call Us! LFC22402-SY-100 24/.2 F8 Speaker :GREY Call Us! LFC22402-SYBK-100 24/.2 F8 Speaker :GREY/BLACK Call Us! LFC22402-SYBK-250 24/.2 F8 Speaker :GREY/BLACK Call Us! LFC22402-SYBK-50 24/.2 F8 Speaker :GREY/BLACK Call Us! LFC22402-SYBK-500 24/.2 F8 Speaker :GREY/BLACK Call Us! LFC22402-SYGN-100 24/.2 F8 Speaker :GREY/GREEN Call Us! LFC22402-SYGN-500 24/.2 F8 Speaker :GREY/GREEN Call Us! LFC22402-SYLB-100 24/.2 F8 Speaker :GREY/BLUE Call Us! LFC22402-SYWH-100 24/.2 F8 Speaker :GREY/WHITE Call Us! LFC22402-SYWH-500 24/.2 F8 Speaker :GREY/WHITE Call Us! LFC22402-SYYW-100 24/.2 F8 Speaker :GREY/YELLOW Call Us! LFC22402-WH-100 24/.2 F8 Speaker :WHITE Call Us! LFC22402-WH-500 24/.2 F8 Speaker :WHITE Call Us! LFC22402-WHYW-100 24/.2 F8 Speaker :WHITE/YELLOW Call Us! LFC26502-BK-100 65/.2 F8 NO STRIPES :BLACK Call Us! LFC26502-BK-500 65/.2 F8 NO STRIPES :BLACK Call Us! LFC26502-BKWH-100 65/.2 F8 NO STRIPES :BLACK/WHITE Call Us! LFC26502-CM-100 65/.2 F8 NO STRIPES :CREAM Call Us! LFC26502-SY-100 65/.2 F8 NO STRIPES :GREY Call Us! LFC28402-BK-100 84/.2 Fig 8 Speaker :BLACK Call Us! LFC28402-BK-V 84/.2 Fig 8 Speaker :BLACK Call Us! LFC28402-BKWH-100 84/.2 Fig 8 Speaker :BLACK/WHITE Call Us! LFC28402-BKWH-250 84/.2 Fig 8 Speaker :BLACK/WHITE Call Us! LFCC Call Us! LFCC1 Call Us! LFCG Call Us! LFCG1 Call Us! LFCS Call Us! LFCSSG Call Us! LFCW1 Call Us! FFC21602-BK-100 16/.2 240V FIG 8 :BLACK Call Us! FFC21602-BK-500 16/.2 240V FIG 8 :BLACK Call Us! FFC21602-BKWH-100 16/.2 240V FIG 8 :BLACK/WHITE Call Us! FFC21602-WH-100 16/.2 240V FIG 8 :WHITE Call Us! FFC22402-BK-100 24/.2 240V FIG 8 :BLACK Call Us! FFC22402-BK-500 24/.2 240V FIG 8 :BLACK Call Us! FFC22402-BKRD-100 24/.2 240V FIG 8 :BLACK/RED Call Us! FFC22402-BKWH-100 24/.2 240V FIG 8 :BLACK/WHITE Call Us! FFC22402-BKWH-250 24/.2 240V FIG 8 :BLACK/WHITE Call Us! FFC22402-BKWH-500 24/.2 240V FIG 8 :BLACK/WHITE Call Us! FFC22402-GNBK-100 24/.2 240V FIG 8 :GREEN/BLACK Call Us! FFC22402-LBBK-100 24/.2 240V FIG 8 :BLUE/BLACK Call Us! FFC22402-LBBK-500 24/.2 240V FIG 8 :BLUE/BLACK Call Us! FFC22402-LBWH-100 24/.2 240V FIG 8 :BLUE/WHITE Call Us! FFC22402-LBWH-250 24/.2 240V FIG 8 :BLUE/WHITE Call Us! FFC22402-LBWH-3000 24/.2 240V FIG 8 :BLUE/WHITE Call Us! FFC22402-LBWH-500 24/.2 240V FIG 8 :BLUE/WHITE Call Us! FFC22402-NNBK-100 24/.2 240V FIG 8 :BROWN/BLACK Call Us! FFC22402-NNBK-500 24/.2 240V FIG 8 :BROWN/BLACK Call Us! FFC22402-NNLB-100 24/.2 240V FIG 8 :BROWN/BLUE Call Us! FFC22402-NNWH-100 24/.2 240V FIG 8 :BROWN/WHITE Call Us! FFC22402-NNWH-250 24/.2 240V FIG 8 :BROWN/WHITE Call Us! FFC22402-NNWH-500 24/.2 240V FIG 8 :BROWN/WHITE Call Us! FFC22402-RDBK-100 24/.2 240V FIG 8 :RED/BLACK Call Us! FFC22402-RDBK-250 24/.2 240V FIG 8 :RED/BLACK Call Us! FFC22402-RDBK-500 24/.2 240V FIG 8 :RED/BLACK Call Us! FFC22402-RDWH-100 24/.2 240V FIG 8 :RED/WHITE Call Us! FFC22402-RDWH-3000 24/.2 240V FIG 8 :RED/WHITE Call Us! FFC22402-RDWH-500 24/.2 240V FIG 8 :RED/WHITE Call Us! FFC22402-SY-100 24/.2 240V FIG 8 :GREY Call Us! FFC22402-SYBK-100 24/.2 240V FIG 8 :GREY/BLACK Call Us! FFC22402-SYBK-250 24/.2 240V FIG 8 :GREY/BLACK Call Us! FFC22402-SYBK-500 24/.2 240V FIG 8 :GREY/BLACK Call Us! FFC22402-SYLB-100 24/.2 240V FIG 8 :GREY/BLUE Call Us! FFC22402-SYLB-500 24/.2 240V FIG 8 :GREY/BLUE Call Us! FFC22402-SYWH-100 24/.2 240V FIG 8 :GREY/WHITE Call Us! FFC22402-SYWH-250 24/.2 240V FIG 8 :GREY/WHITE Call Us! FFC22402-SYWH-500 24/.2 240V FIG 8 :GREY/WHITE Call Us! FFC22402-VLBK-100 24/.2 240V FIG 8 :VIOLET/BLACK Call Us! FFC22402-WH-10 24/.2 240V FIG 8 :WHITE Call Us! FFC22402-WH-100 24/.2 240V FIG 8 :WHITE Call Us! FFC22402-WH-30 24/.2 240V FIG 8 :WHITE Call Us! FFC22402-WH-500 24/.2 240V FIG 8 :WHITE Call Us! FFC22402-WHBK-100 24/.2 240V FIG 8 :WHITE/BLACK Call Us! FFC22402-WHBK-250 24/.2 240V FIG 8 :WHITE/BLACK Call Us! FFC22402-WHBK-500 24/.2 240V FIG 8 :WHITE/BLACK Call Us! FFC22402-WHLB-100 24/.2 240V FIG 8 :WHITE/BLUE Call Us! FFC22402-WHRD-100 24/.2 240V FIG 8 :WHITE/RED Call Us! FFC22402-WHRD-500 24/.2 240V FIG 8 :WHITE/RED Call Us! Security Cables

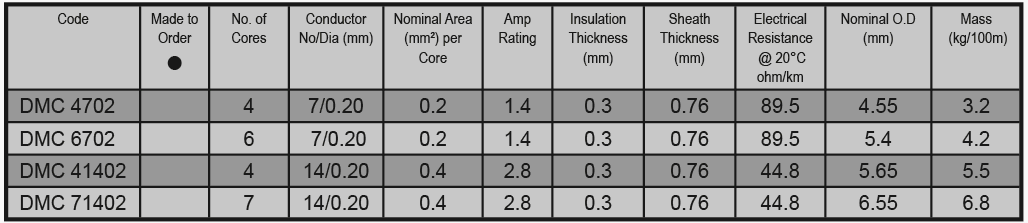

OVERALL SCREEN ACA N1155 (AUSTEL APPROVED)
Multi Wire, Overall Screen
APPLICATIONS: Security control with signal integrity.
CONDUCTOR: Plain copper wire.
INSULATION: 75°C PVC to AS 3808 and S008.
CORE COLOUR: 4 Core – Red, blue, green, yellow.
6 Core – 4 core plus white, black.
7 Core – 4 core plus white, black, brown.
SCREEN: Overall aluminium/polyester laminate tape screen with a 7/0.20 tinned
copper drain wire.
SHEATH: 75°C PVC to AS 3808.
PACK: 100 or 500 metres.
ACA N1155 (AUSTEL APPROVAL: A93/CA/0123).NOTE: (i) Not Suitable For Connection To Mains Power Supply.
DMC12702-SY-100 12x7/.2 SCREENED :GREY Call Us! DMC25702-SY-100 25x7/.2 SCREENED :GREY Call Us! DMC25702-SY-500 25x7/.2 SCREENED :GREY Call Us! DMC3BAA-NN-500 3X7/.25 SCREEN SPEC :BROWN Call Us! DMC3BAA-VL-500 3X7/.25 SCREEN SPEC :VIOLET Call Us! DMC41402-SY-100 4x14/.2 SCREENED :GREY Call Us! DMC41402-SY-250 4x14/.2 SCREENED :GREY Call Us! DMC41402-SY-500 4x14/.2 SCREENED :GREY Call Us! DMC4702-SY-100 4x7/.2 SCREENED :GREY Call Us! DMC4702-SY-250 4x7/.2 SCREENED :GREY Call Us! DMC4702-SY-500 4x7/.2 SCREENED :GREY Call Us! DMC5702-SY-100 5x7/.2 SCREENED DATA:GREY Call Us! DMC6702-SY-100 6x7/.2 SCREENED :GREY Call Us! DMC6702-SY-250 6x7/.2 SCREENED :GREY Call Us! DMC6702-SY-300(B) 6x7/.2 SCREENED :GREY Call Us! DMC6702-SY-500 6x7/.2 SCREENED :GREY Call Us! DMC71402-SY-100 7x14/.2 SCREENED DAT:GREY Call Us! DMC71402-SY-250 7x14/.2 SCREENED DAT:GREY Call Us! DMC71402-SY-500 7x14/.2 SCREENED DAT:GREY Call Us! DMC8702-SY-100 8x7/.2 SCREENED DATA:GREY Call Us! DMC8702-SY-500 8x7/.2 SCREENED DATA:GREY Call Us! Security Cables

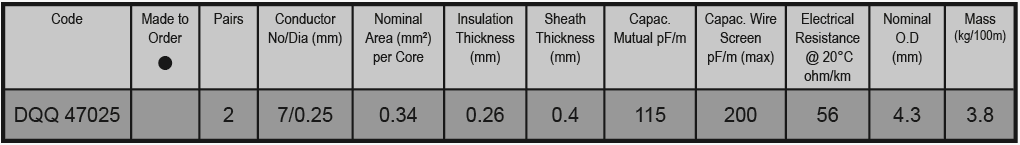

ACA N1155 (Austel Approved)

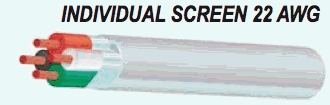

INDIVIDUAL SCREEN 22 AWG
Multi-Pair, Individual Screen (8723 equiv)
APPLICATIONS: Security control with signal integrity.
CONDUCTOR: Tinned copper wire.
INSULATION: Data grade polypropylene 75°C
CORE COLOUR: Pair 1 black & red.
Pair 2 green & white.
SCREEN: Individual aluminium polyester laminate tape screens with a 7/0.20mm
tinned copper drain wire.
SHEATH: 75°C PVC to AS 3808
PACK: 100, 250 or 500 metres.
ACA N1155 (AUSTEL APPROVAL: A93/CA/0110.)NOTE: (i) Not Suitable For Connection To Mains Power Supply.
DQQ4/7067-BK-100 2PR 7/.25SCR + 7/.67:BLACK Call Us! DQQ4/7067-BK-250 2PR 7/.25SCR + 7/.67:BLACK Call Us! DQQ4/7067-BK-500 2PR 7/.25SCR + 7/.67:BLACK Call Us! DQQ47025-BK-100 2PR 7/.25PLP IND SCR:BLACK Call Us! DQQ47025-SY-100 2PR 7/.25PLP IND SCR:GREY Call Us! DQQ47025-SY-250 2PR 7/.25PLP IND SCR:GREY Call Us! DQQ47025-SY-300(B) 2PR 7/.25PLP IND SCR:GREY Call Us! DQQ47025-SY-500 2PR 7/.25PLP IND SCR:GREY Call Us! Telephone Cables
ACA N1155 ( AUSTEL APPROVED)
Indoor Multi-Pair
75°C PVC Ins & Sheath
APPLICATIONS: Internal telephone cable.
CONDUCTOR: Plain copper wire
INSULATION: 75°C PVC to S008
CORE COLOUR: 1 QUAD:- Blue, white, red, black
3 PAIR:- White & blue, red & black, orange & green.
SHEATH: 75°C PVC to S008
SHEATH COLOUR: Cream.
PACK: 100, 250 or 500 metres, bulk drum.
AUSTEL APPROVALS: CCL A93/CA/0055 (Quad).
CCL A93/CA/0057 (4&5 Pair).
CCL A93/CA/0059 (3 Pair).NOTE: (i) Extra Low Voltage
(ii) Not Suitable For Connection To Mains Power Supply.
TIC4105-CM-100 4x1/.5 Telephone :CREAM Call Us! TIC4105-CM-300(B) 4x1/.5 Telephone :CREAM Call Us! TIC4105-WH-100 4x1/.5 Telephone :WHITE Call Us! TIC4105-WH-300(B) 4x1/.5 Telephone :WHITE Call Us! TIC6105-CM-100 3 PR 1/.5 TELEPHONE :CREAM Call Us! TIC6105-CM-300(B) 3 PR 1/.5 TELEPHONE :CREAM Call Us! Telephone Cables

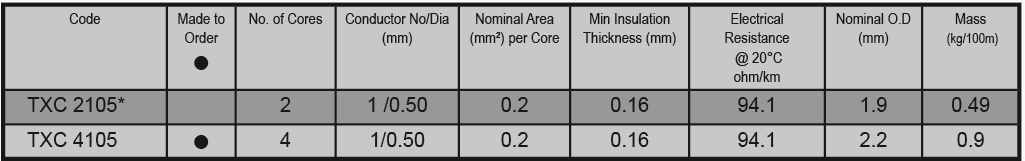

ACA N1155
TWIN TWIST
Twin Twist (Rack Wire)
75°C PVC Insulated (AUSTEL APPROVAL CCL A96/CA/0067)
APPLICATIONS: Telephone rack wiring.
CONDUCTOR: Plain copper wire.
INSULATION: 75°C PVC to AS 3808 and S008.
CORE COLOUR: 2 CORE – Red & white.
4 CORE – Red, white, blue, black.
PACK: 300, 250 or 500 metres.NOTE: (i) Extra Low Voltage
(ii) Not Suitable For Connection To Mains Power Supply.
TXC2105-WHRD-100 2x1/.5 TWISTED TELEP:WHITE/RED Call Us! TXC2105-WHRD-250 2x1/.5 TWISTED TELEP:WHITE/RED Call Us! TXC2105-WHRD-500 2x1/.5 TWISTED TELEP:WHITE/RED Call Us!
