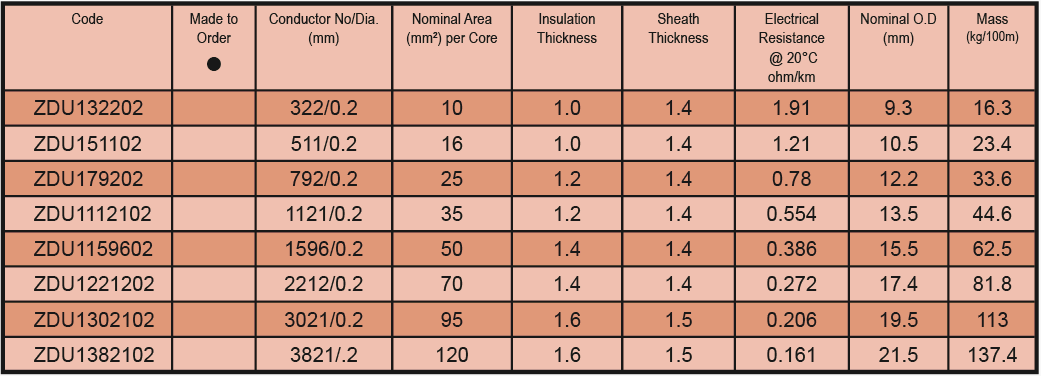

Flexible Welding/Power Cable
Double Insulated 0.6/1kV
NBR/PVC AS 5000.1, AS1995
APPLICATIONS: Welding, power and switchboard applications.
CONDUCTOR: Flexible plain copper wire stranding. Class 6 to AS1125
INSULATION: Nitrile (NBR) PVC to comply with AS 3808 V90HT.
CORE COLOUR: Light blue.
SHEATH: Nitrile (NBR) PVC to comply with AS 3808 V90HT.
SHEATH COLOUR: Orange, black, other colours by request.
PACK: 100 metres, bulk drum.DU1382102 3821/.2 120 1.6 1.5 0.161 21.5 137.4
NOTE: (i) Install In Accordance to AS3000 Power, AS1995 Weld.
(ii) Metre Marked.
| ZDU1112102-BK-10 | 35 MM NBR/NBR .6/1KV:BLACK | Call Us! | |
| ZDU1112102-BK-100 | 35 MM NBR/NBR .6/1KV:BLACK | Call Us! | |
| ZDU1112102-BK-30 | 35 MM NBR/NBR .6/1KV:BLACK | Call Us! | |
| ZDU1112102-BK-V | 35 MM NBR/NBR .6/1KV:BLACK | Call Us! | |
| ZDU1112102-OR-100 | 35 MM NBR/NBR .6/1KV:ORANGE | Call Us! | |
| ZDU1112102-OR-V | 35 MM NBR/NBR .6/1KV:ORANGE | Call Us! | |
| ZDU1112102-RD-100 | 35 MM NBR/NBR .6/1KV:RED | Call Us! | |
| ZDU1112102-RD-V | 35 MM NBR/NBR .6/1KV:RED | Call Us! | |
| ZDU1159602-BK-10 | 50 MM NBR/NBR .6/1KV:BLACK | Call Us! | |
| ZDU1159602-BK-100 | 50 MM NBR/NBR .6/1KV:BLACK | Call Us! | |
| ZDU1159602-BK-30 | 50 MM NBR/NBR .6/1KV:BLACK | Call Us! | |
| ZDU1159602-BK-50 | 50 MM NBR/NBR .6/1KV:BLACK | Call Us! | |
| ZDU1159602-BK-V | 50 MM NBR/NBR .6/1KV:BLACK | Call Us! | |
| ZDU1159602-LB-100 | 50 MM NBR/NBR .6/1KV:BLUE | Call Us! | |
| ZDU1159602-OR-100 | 50 MM NBR/NBR .6/1KV:ORANGE | Call Us! | |
| ZDU1159602-OR-50 | 50 MM NBR/NBR .6/1KV:ORANGE | Call Us! | |
| ZDU1159602-OR-V | 50 MM NBR/NBR .6/1KV:ORANGE | Call Us! | |
| ZDU1159602-RD-100 | 50 MM NBR/NBR .6/1KV:RED | Call Us! | |
| ZDU1159602-RD-V | 50 MM NBR/NBR .6/1KV:RED | Call Us! | |
| ZDU1221202-BK-10 | 70 MM NBR/NBR :BLACK | Call Us! | |
| ZDU1221202-BK-100 | 70 MM NBR/NBR :BLACK | Call Us! | |
| ZDU1221202-BK-30 | 70 MM NBR/NBR :BLACK | Call Us! | |
| ZDU1221202-BK-V | 70 MM NBR/NBR :BLACK | Call Us! | |
| ZDU1221202-OR-100 | 70 MM NBR/NBR :ORANGE | Call Us! | |
| ZDU1221202-OR-V | 70 MM NBR/NBR :ORANGE | Call Us! | |
| ZDU1221202-RD-100 | 70 MM NBR/NBR :RED | Call Us! | |
| ZDU1221202-RD-V | 70 MM NBR/NBR :RED | Call Us! | |
| ZDU1302102-BK-100 | 95 MM NBR/NBR .6/1KV:BLACK | Call Us! | |
| ZDU1302102-BK-V | 95 MM NBR/NBR .6/1KV:BLACK | Call Us! | |
| ZDU1302102-LB-V | 95 MM NBR/NBR .6/1KV:BLUE | Call Us! | |
| ZDU1302102-OR-100 | 95 MM NBR/NBR .6/1KV:ORANGE | Call Us! | |
| ZDU1302102-OR-V | 95 MM NBR/NBR .6/1KV:ORANGE | Call Us! | |
| ZDU1302102-RD-100 | 95 MM NBR/NBR .6/1KV:RED | Call Us! | |
| ZDU1302102-RD-50 | 95 MM NBR/NBR .6/1KV:RED | Call Us! | |
| ZDU132202-BK-100 | 10 MM NBR/NBR .6/1KV:BLACK | Call Us! | |
| ZDU132202-OR-100 | 10 MM NBR/NBR .6/1KV:ORANGE | Call Us! | |
| ZDU132202-OR-V | 10 MM NBR/NBR .6/1KV:ORANGE | Call Us! | |
| ZDU132202-RD-100 | 10 MM NBR/NBR .6/1KV:RED | Call Us! | |
| ZDU1382102-OR-100 | 120MM NBR/NBR .6/1KV:ORANGE | Call Us! | |
| ZDU1382102-OR-V | 120MM NBR/NBR .6/1KV:ORANGE | Call Us! | |
| ZDU151102-BK-10 | 16 MM NBR/NBR .6/1KV:BLACK | Call Us! | |
| ZDU151102-BK-100 | 16 MM NBR/NBR .6/1KV:BLACK | Call Us! | |
| ZDU151102-BK-30 | 16 MM NBR/NBR .6/1KV:BLACK | Call Us! | |
| ZDU151102-BK-V | 16 MM NBR/NBR .6/1KV:BLACK | Call Us! | |
| ZDU151102-OR-100 | 16 MM NBR/NBR .6/1KV:ORANGE | Call Us! | |
| ZDU151102-OR-V | 16 MM NBR/NBR .6/1KV:ORANGE | Call Us! | |
| ZDU151102-RD-100 | 16 MM NBR/NBR .6/1KV:RED | Call Us! | |
| ZDU151102-RD-V | 16 MM NBR/NBR .6/1KV:RED | Call Us! | |
| ZDU179202-BK-10 | 25 MM NBR/NBR .6/1KV:BLACK | Call Us! | |
| ZDU179202-BK-100 | 25 MM NBR/NBR .6/1KV:BLACK | Call Us! | |
| ZDU179202-BK-30 | 25 MM NBR/NBR .6/1KV:BLACK | Call Us! | |
| ZDU179202-BK-V | 25 MM NBR/NBR .6/1KV:BLACK | Call Us! | |
| ZDU179202-LB-100 | 25 MM NBR/NBR .6/1KV:BLUE | Call Us! | |
| ZDU179202-LB-V | 25 MM NBR/NBR .6/1KV:BLUE | Call Us! | |
| ZDU179202-OR-100 | 25 MM NBR/NBR .6/1KV:ORANGE | Call Us! | |
| ZDU179202-OR-50 | 25 MM NBR/NBR .6/1KV:ORANGE | Call Us! | |
| ZDU179202-OR-V | 25 MM NBR/NBR .6/1KV:ORANGE | Call Us! | |
| ZDU179202-RD-10 | 25 MM NBR/NBR .6/1KV:RED | Call Us! | |
| ZDU179202-RD-100 | 25 MM NBR/NBR .6/1KV:RED | Call Us! |

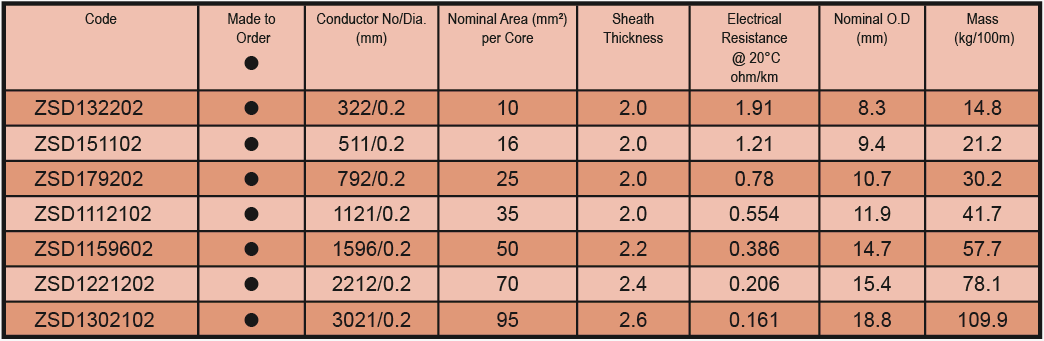

Flexible Welding Cable
Single Insulated
PVC to AS1995
APPLICATIONS: Welding applications.
CONDUCTOR: Flexible plain copper wire stranding. Class 6 to AS1125.
INSULATION: V90HT PVC to AS 3808
COLOUR: Black, other colours by request.
PACK: 100 metres, bulk drum.NOTE: (i) Welding Voltage Rating Maximum 100VDC or AC (RMS) To Earth.
(ii) May Be Used To 600 VDC or AC To Earth When Installed In Accordance With AS3000.

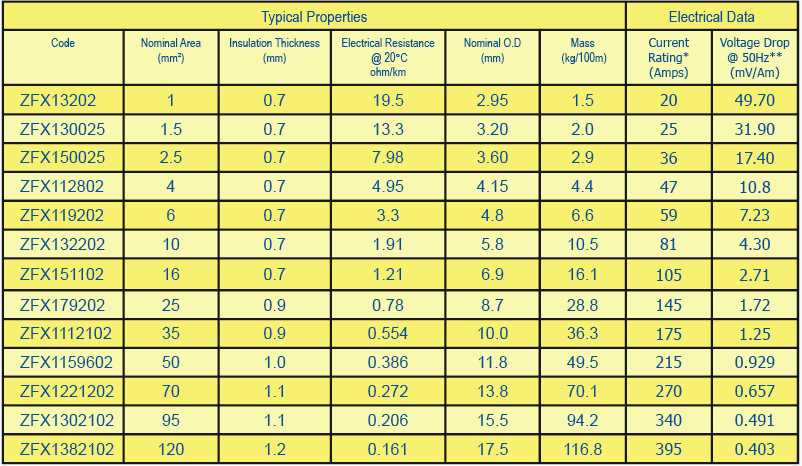

Crosslinked Thermoset
Single Core X-HF-110 Flexible Power Cable
Flame Retardant, Low Smoke, Halogen Free
Insulated single core unprotected to AS 5000.1 0.6/1KV
APPLICATIONS: Power cable 0.6/1KV.
CONDUCTOR: Nominal 0.2mm stranded fl exible plain copper wire stranding. Class 6
to AS1125
INSULATION: X-HF-110 to AS3808
COLOUR: Black, red, blue, white, green/yellow.
PACK: 100 metres, bulk drum.* AS/NZS 3008, Table 8 (Fixed - Unenclosed Touching) 110°C operating temp., 40°C ambient air temperature, 25°C ambient soil temp.
** AS/NZS 3008, Table 41 (laid fl at touching/wiring enclosure) 110°C conductor temp.
| ZFX1112102-BK-100 | 1121/.2XLFR 110C :BLACK | Call Us! | |
| ZFX1112102-GNYW-100 | 1121/.2XLFR 110C :GREEN/YELLOW | Call Us! | |
| ZFX1112102-LB-100 | 1121/.2XLFR 110C :BLUE | Call Us! | |
| ZFX1112102-RD-100 | 1121/.2XLFR 110C :RED | Call Us! | |
| ZFX1112102-WH-100 | 1121/.2XLFR 110C :WHITE | Call Us! | |
| ZFX1159602-BK-100 | 1596/.2XLFR 110C :BLACK | Call Us! | |
| ZFX1159602-GNYW-100 | 1596/.2XLFR 110C :GREEN/YELLOW | Call Us! | |
| ZFX1159602-LB-100 | 1596/.2XLFR 110C :BLUE | Call Us! | |
| ZFX1159602-LB-V | 1596/.2XLFR 110C :BLUE | Call Us! | |
| ZFX1159602-RD-100 | 1596/.2XLFR 110C :RED | Call Us! | |
| ZFX1159602-WH-100 | 1596/.2XLFR 110C :WHITE | Call Us! | |
| ZFX1221202-BK-100 | 2212/.2XLFR 110C :BLACK | Call Us! | |
| ZFX1302102-RD-100 | 3021/.2XLFR 110C :RED | Call Us! | |
| ZFX132202-BK-100 | 10MM2 XLEP 110C :BLACK | Call Us! | |
| ZFX132202-GNYW-100 | 10MM2 XLEP 110C :GREEN/YELLOW | Call Us! | |
| ZFX132202-LB-100 | 10MM2 XLEP 110C :BLUE | Call Us! | |
| ZFX132202-RD-100 | 10MM2 XLEP 110C :RED | Call Us! | |
| ZFX132202-WH-100 | 10MM2 XLEP 110C :WHITE | Call Us! | |
| ZFX151102-BK-100 | 511/.2XLFR 110C :BLACK | Call Us! | |
| ZFX151102-GNYW-100 | 511/.2XLFR 110C :GREEN/YELLOW | Call Us! | |
| ZFX151102-LB-100 | 511/.2XLFR 110C :BLUE | Call Us! | |
| ZFX151102-RD-100 | 511/.2XLFR 110C :RED | Call Us! | |
| ZFX151102-WH-100 | 511/.2XLFR 110C :WHITE | Call Us! | |
| ZFX179202-BK-100 | 792/.2 XLFR 110C :BLACK | Call Us! | |
| ZFX179202-GNYW-100 | 792/.2 XLFR 110C :GREEN/YELLOW | Call Us! | |
| ZFX179202-LB-100 | 792/.2 XLFR 110C :BLUE | Call Us! | |
| ZFX179202-RD-100 | 792/.2 XLFR 110C :RED | Call Us! | |
| ZFX179202-RD-V | 792/.2 XLFR 110C :RED | Call Us! | |
| ZFX179202-WH-100 | 792/.2 XLFR 110C :WHITE | Call Us! |

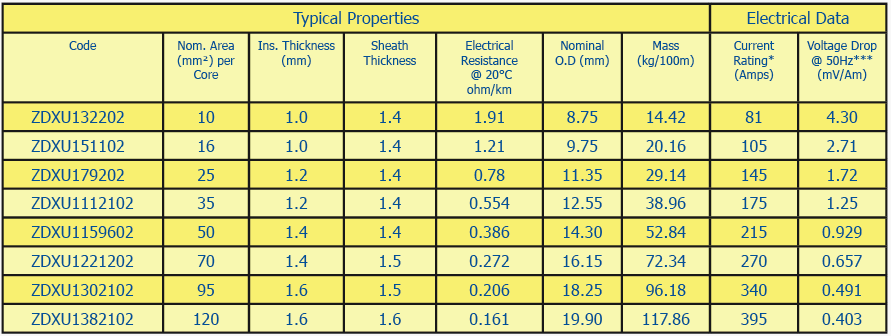

Self Extinguishing Double Insulated
Cross-Linked Insulation
Resists Oil, Petrol, Acid, Seawater, Ozone and UV
AS5000.1 Power Cable
APPLICATIONS: Power: Switchboards, bussbars, transformers, fi xed applications
CONDUCTOR: Nominal 0.2mm stranded fl exible plain copper wire stranding. Class
5 to AS1125
INSULATION: RE-110 to AS3808
SHEATH: Nitrile rubber modifi ed PVC
COLOUR: Black, red, blue, white, green/yellow.
PACK: 100 metres, bulk drum.* AS/NZS 3008, Table 8 (Fixed - Unenclosed Touching) 110°C operating temp., 40°C ambient air temperature, 25°C ambient soil temp.
** AS/NZS 3008, Table 41 (laid fl at touching/wiring enclosure) 110°C conductor temp.
ZDXU1112102-BK-100 35MMSQ 110C DI :BLACK Call Us! ZDXU1112102-OR-100 35MMSQ 110C DI :ORANGE Call Us! ZDXU1159602-BK-100 50 MM 110C DI .6/1KV:BLACK Call Us! ZDXU1159602-BK-V 50 MM 110C DI .6/1KV:BLACK Call Us! ZDXU1159602-OR-100 50 MM 110C DI .6/1KV:ORANGE Call Us! ZDXU1159602-OR-V 50 MM 110C DI .6/1KV:ORANGE Call Us! ZDXU1221202-BK-100 70 MM XLPE/FR 110C :BLACK Call Us! ZDXU1221202-BK-V 70 MM XLPE/FR 110C :BLACK Call Us! ZDXU1221202-OR-100 70 MM XLPE/FR 110C :ORANGE Call Us! ZDXU1221202-OR-V 70 MM XLPE/FR 110C :ORANGE Call Us! ZDXU1302102-BK-V 95 MM XLPE/FR 110C :BLACK Call Us! ZDXU1302102-OR-100 95 MM XLPE/FR 110C :ORANGE Call Us! ZDXU1302102-OR-V 95 MM XLPE/FR 110C :ORANGE Call Us! ZDXU1382102-OR-100 120MM XLPE/FR 110C :ORANGE Call Us! ZDXU151102-BK-100 16MM XLPE/FR 110C :BLACK Call Us! ZDXU151102-BK-V 16MM XLPE/FR 110C :BLACK Call Us! ZDXU151102-OR-100 16MM XLPE/FR 110C :ORANGE Call Us! ZDXU179202-BK-100 25MM XLPE/FR 110C :BLACK Call Us! ZDXU179202-BK-V 25MM XLPE/FR 110C :BLACK Call Us! ZDXU179202-OR-100 25MM XLPE/FR 110C :ORANGE Call Us! ZDXU179202-OR-V 25MM XLPE/FR 110C :ORANGE Call Us!
