Marine Products
Below are Boating and Marine products designed for the harsh Australian Marine Environment.

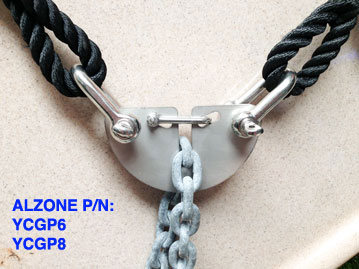

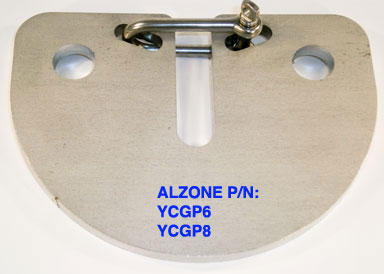

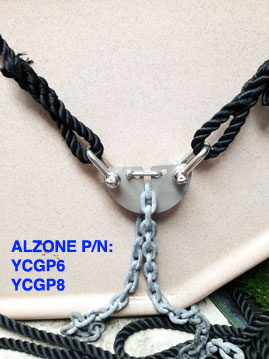

Alzone Catamaran Anchor Mooring Bridles - Suits 8mm, 10mm & 12mm Anchor Chains
AVAILABLE IN 2 SIZES
The use of a Chain Mooring Bridles stabilises the anchor chain on catamarans and mono hulls reducing the strain on the windlass when the vessel is at anchor (particularly in heavy sea conditions).
Having two points of attachment for the anchor chain reduces the chance of the vessel rotating or swinging back and forth and over loading the single cleat attachment as can occur on a single line attachment.
A stainless safety shackle removes the chance of chain slippage when vessel is pulling or releasing tension on the chain.
Manufactured from corrosion resistant marine grade stainless steel ensures the durability of the Mooring Bridles.
Designed, engineered and manufactured in Australia for harsh Australian conditions.
Primarily designed for use on catamarans to distribute the anchor load on each hull.
6mm Plate Construction and Dimension: P/No. YCGP6
- Included with the chain grip plate is a 6mm stainless steel locking shackle to prevent the chain becoming loose during changes in the wind or tide.
- Made from corrosion resistant grade 316 Stainless Steel – 6mm thick
- Features 13mm holes on each side to allow fitment of two 13mm (1/2”) stainless steel bow shackles, thus enabling attachment of lines to port and starboard (shackles not included).
Suitable for short & long anchor chain sizes:
- Imperial 5/16”, 3/8”
- Metric 8mm & 10mm
8mm Plate Construction and dimension: P/No. YCGP8
- Included with the chain grip plate is a 6mm stainless steel locking shackle to prevent the chain becoming loose during changes in the wind or tide.
- Made from corrosion resistant grade 316 Stainless Steel – 8mm thick
- Features include 17mm holes on each side to allow fitment of two 16mm (5/8”) stainless steel bow shackles, thus enabling attachment of lines to port and starboard (shackles not included).
Suitable for short & long anchor chain sizes:
- Imperial 5/16”, 3/8”, 7/16” & 1/2”
- Metric 8mm, 10mm & 12mm
| Alzone Chain Grip Plate | |||
| YCGP6 |  |
||
| YCGP8 | |
||

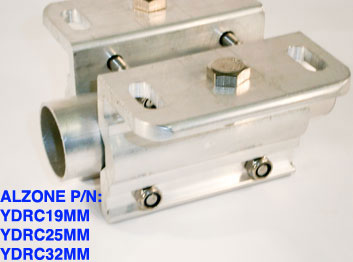

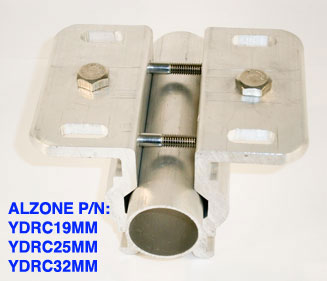

Alzone Tubular Boat Rail Clamp
SUITABLE FOR 3 TUBE SIZES
The Alzone Tubular Rail Clamp is an innovative way of attaching many items onto 19 to 32 MM round tube without the need to drill or weld.
Just tighten the 4 marine grade retaining screws onto the tube and you are then able mount a choice of many items to your boat rail or roof rack.
The clamp is manufactured from superior Grade 6106 T6 aluminium alloy and is anodised for additional corrosion protection.
Product is designed and engineered in Australia for our harsh conditions.
Now your attachment of grillers, cookers, barbecues, solar panels, aerials and lighting is a breeze with no special tools required, only an allen key is required.
Features:
- No special tools required, only an allen key and spanner are required.
- Corrosion Resistant – Fully Anodised.
- Slotted and Round Holes for a multitude of attachment choices.
- Suitable for Alzone solar rail products.
- Dedicated slots to recess and restrain screws and nuts.
- Rounded corners to protect user.
Uses:
- Attachment of solar module rail.
- Attachment of bait boards.
- Attachment of barbecues/cookers/grillers.
- Attachment of Aerials.
- Attachment of rod holders.
- Attachment of marker lights & flood lights.
Contains;– 4 x grade 316 stainless steel socket head screws and nyloc nuts.
| Alzone Tubular Rail Clamp | |||
| YDRC19MM | |
||
| YDRC25MM | |
||
| YDRC32MM | |
||

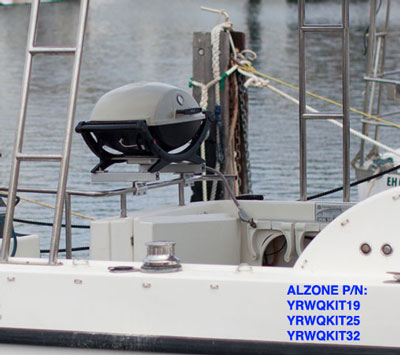

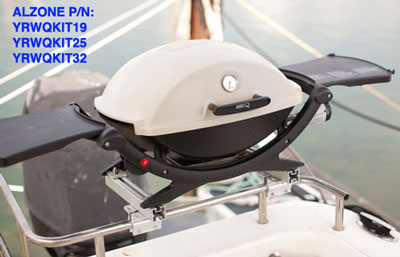

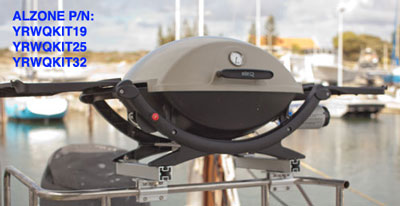

Alzone Webber Q Deck Mounting Kit
MADE-EASY INSTALLATION OF YOUR WEBER Q.
SUITABLE FOR 3 TUBE SIZES
Now easy attachment of your grillers, cookers or barbecues. No special tools required, only an allen key and 14mm spanner are required.
The Alzone Weber mount kit is an innovative way of attaching your Weber Q onto 19 to 32 MM round tube without the need to drill or weld.
Just tighten the two Alzone tube rail clamps onto the existing rail using the marine grade screws supplied. You are then able mount the extension rails onto the rail clamps.
Once this is completed you can secure the Weber to the extension rail using the specially designed clamp and bolt kit provided.
The clamp & extension rail are manufactured from superior Grade 6106 T6 aluminium alloy and is anodised for additional corrosion protection.
This product is designed and engineered in Australia for our harsh environment.
P/No YRWQKIT Features:-
No special tools required, only an allen key and 14mm spanner are required. - Corrosion Resistant – Fully Anodised.
- Slotted and Round Holes for a multitude of attachment choices.
- Suitable for Alzone solar rail products.
- Dedicated slots to recess and restrain screws and nuts.
- Rounded corners to protect user.
- Adjustable positioning.
Other uses:-
- Attachment of solar module rail.
- Attachment of bait boards.
- Attachment of other barbecues/cookers/grillers.
- Attachment of Aerials.
- Attachment of rod holders.
- Attachment of marker lights & flood lights.
Contains;–
- 2 x Rails @ 330mm long.
- 8 x grade 316 stainless steel socket head screws and nyloc nuts.
- 12 x grade 316 Stainless hex head bolts, nuts & washers.
- 2 x Deck Rail Clamps kits.
- 4 x Spacer Clamp Plates
| Alzone Webber Q Deck Mounting Kit | |||
| YRWQKIT19 | |
||
| YRWQKIT25 | |
||
| YRWQKIT32 | |
||

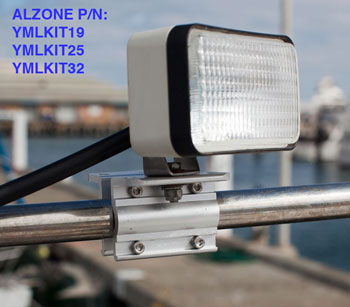

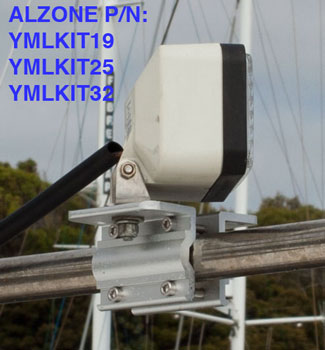

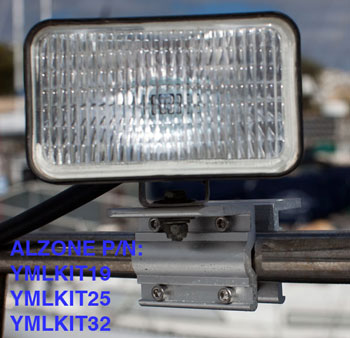

Alzone Floodlight / Spotlight Deck / 4x4 Mounting Kit
EASY NO DRILLING INSTALLATION OF YOUR FLOOD OR SPOT LIGHT
SUITABLE FOR 3 TUBE SIZES
Now easy attachment of your flood lamps or marker lamps to your tubular railing.
No special tools required, only an allen key plus a spanner to install your lamp.
The Alzone Light Mount Kit is a simple way of attaching your Lamps onto 19 to 32 MM round tube without the need to drill or weld.
Just tighten the two Alzone light clamps onto your existing rail using the marine grade screws supplied.
Once installation is completed you can secure the lamp to the Light Mount using a choice of the round or slotted holes provided on the clamp.
The clamp is manufactured from high quality Grade 6106 T6 aluminium alloy which is anodised for additional corrosion protection.
This product is designed and engineered in Australia to withstand the harsh environment.
P/No YMLKIT Features:-
- Corrosion Resistant – Fully Anodised.
- Slotted and Round Holes are provided for a multitude of lamp attachment choices.
- Dedicated recessed slots to safely secure clamp to railing and retain screws and nuts.
- Rounded corners to enhance safety.Adjustable positioning.
Other uses:-
- Attachment of solar modules.
- Attachment of bait boards.
- Attachment of barbecues/cookers/grillers. Attachment of Aerials.
- Attachment of rod holders.
- Attachment of marker lights & flood lights.
4 x grade 316 stainless steel socket head screws and nyloc nuts.
| Alzone Floodlight / Spotlight Deck / 4x4 Mounting Kit | |||
| YMLKIT19 | |
||
| YMLKIT25 | |
||
| YMLKIT32 | |
||
*LIGHT NOT INCLUDED
